Removal [08/2013 - ]: Procedure

  1. REMOVE SHIFTING HOLE BEZEL

    Refer to PROCEDURE - Step 5 Refer to PROCEDURE - Step 6

  2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6 Refer to PROCEDURE - Step 7

  3. REMOVE PATTERN SELECT SWITCH ASSEMBLY

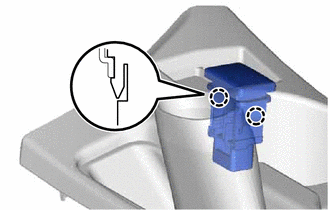

    1. Disengage the 2 claws and remove the pattern select switch assembly from the upper console panel sub-assembly.
      GTY442055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
