Automatic Light Control, Light Auto Turn Off System: Connectors

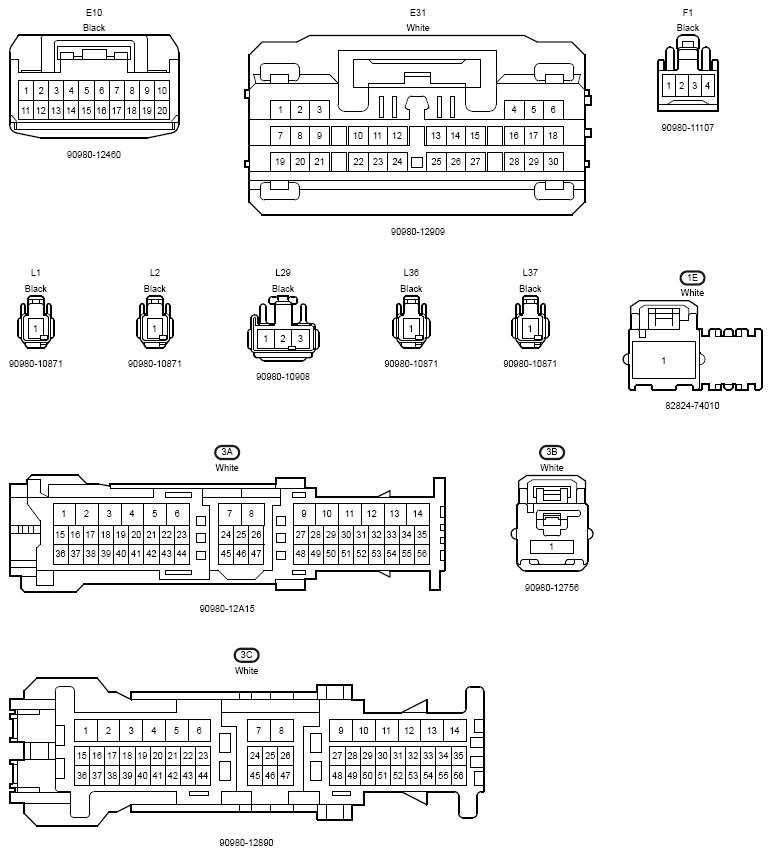

Fig 1: Connectors (1 Of 2)
G12199363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

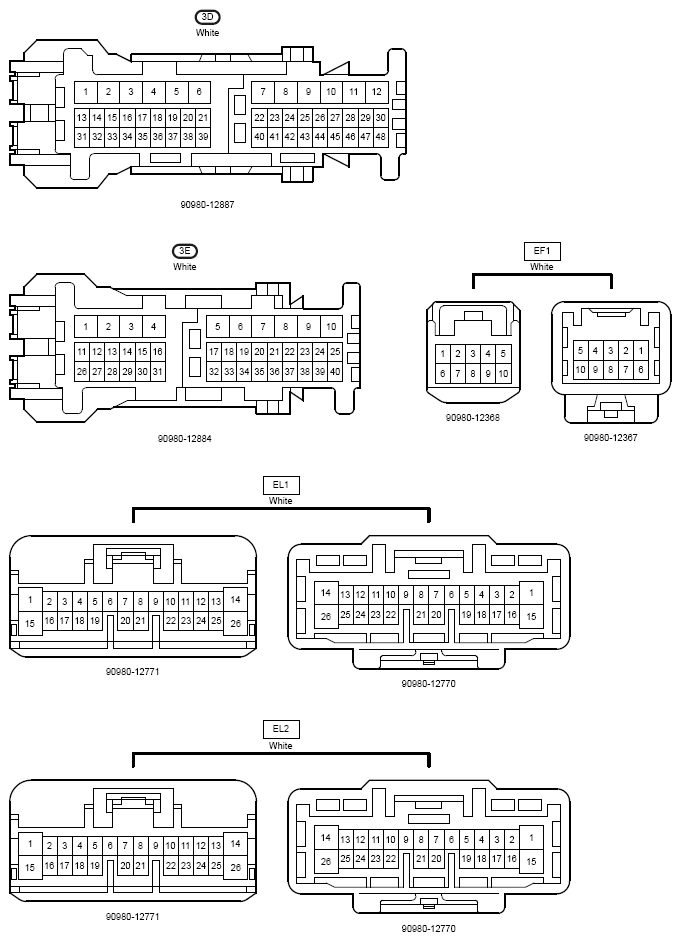

Fig 2: Connectors (2 Of 2)
G12199364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
