OEM System Circuits: Clock: Connectors

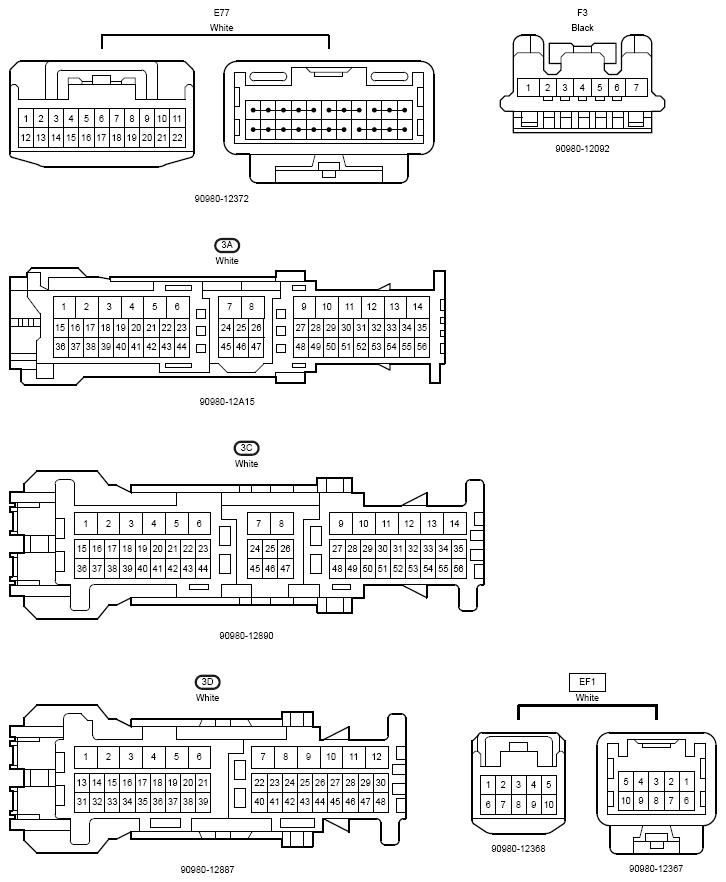

Fig 1: Connectors
G12199386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
