Data Link Connector 3
›
System Diagrams
System Diagrams

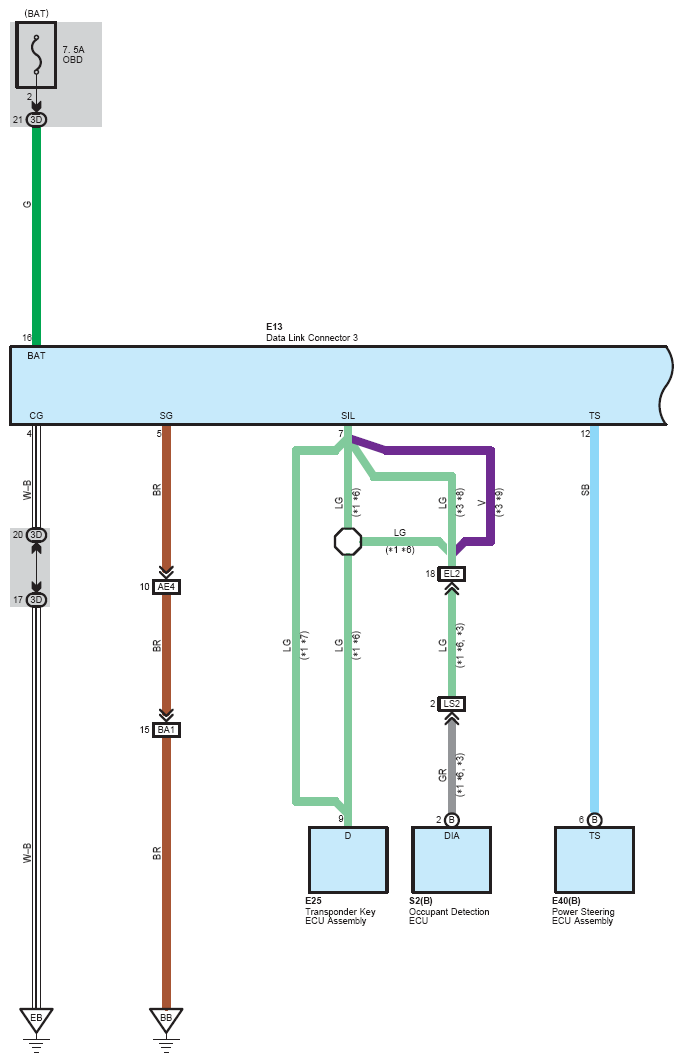

Fig 1: Data Link Connector 3 (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

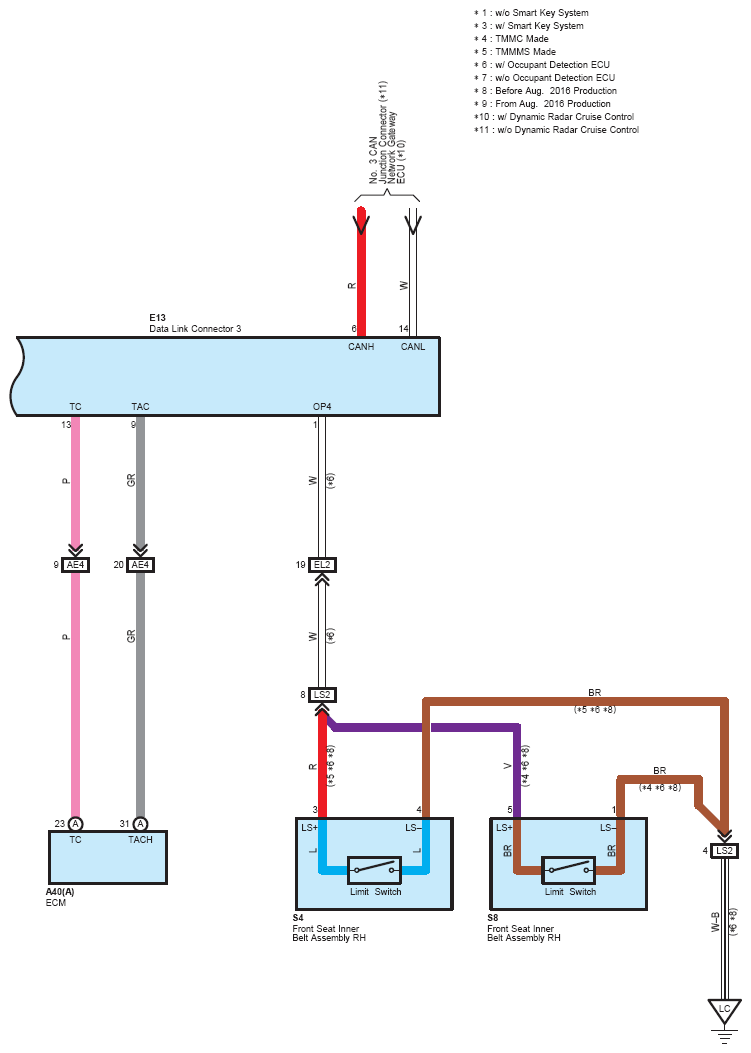

Fig 2: Data Link Connector 3 (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
