OEM System Circuits
›
Seat Heater
›
System Diagrams
System Diagrams

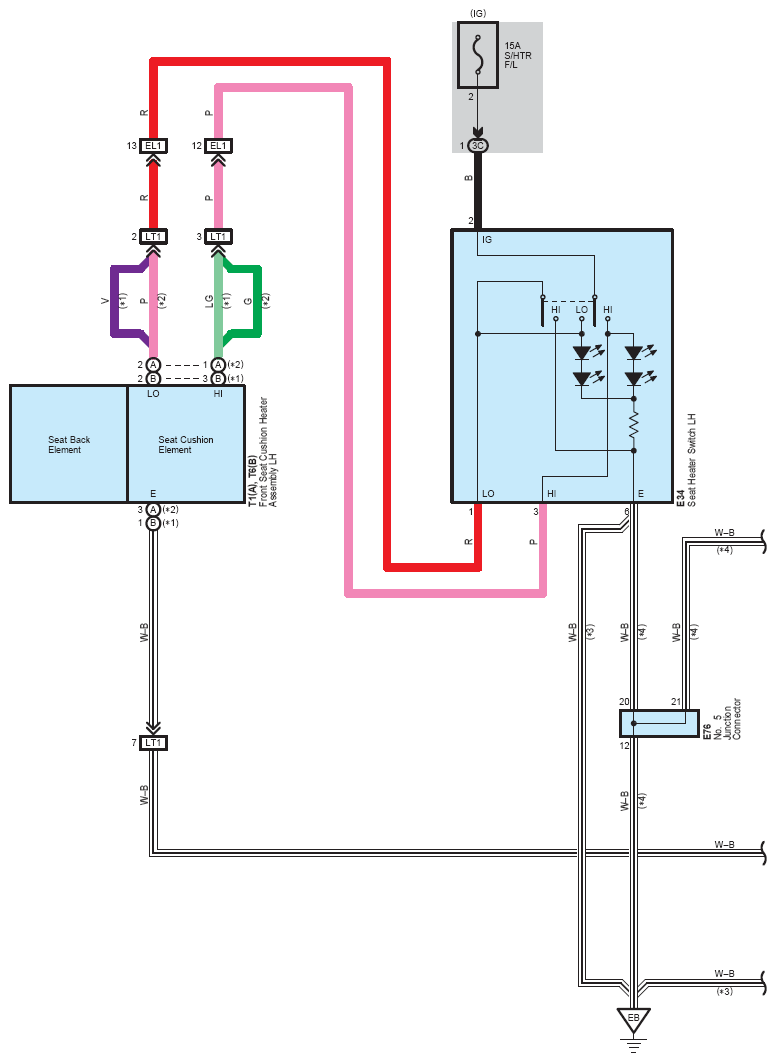

Fig 1: Seat Heater (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

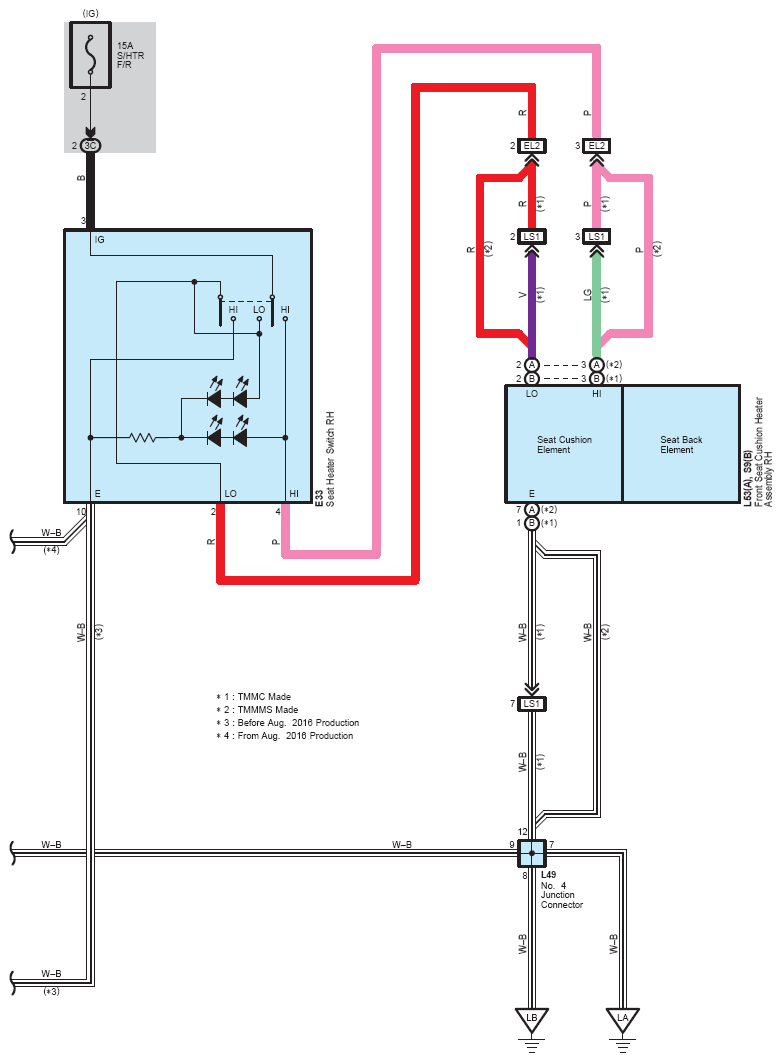

Fig 2: Seat Heater (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
