System Diagrams — 2017 Toyota Corolla iM Standard Trans Service Manual ~ FixVault

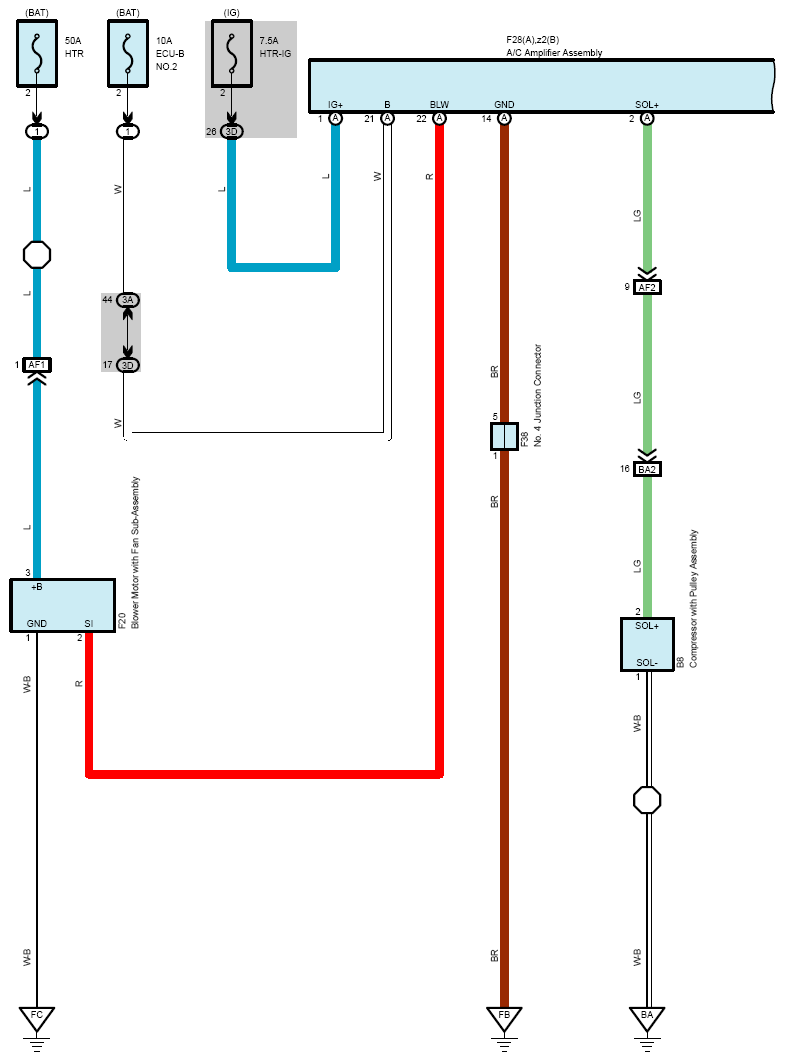

Fig 1: Air Conditioning (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Air Conditioning (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

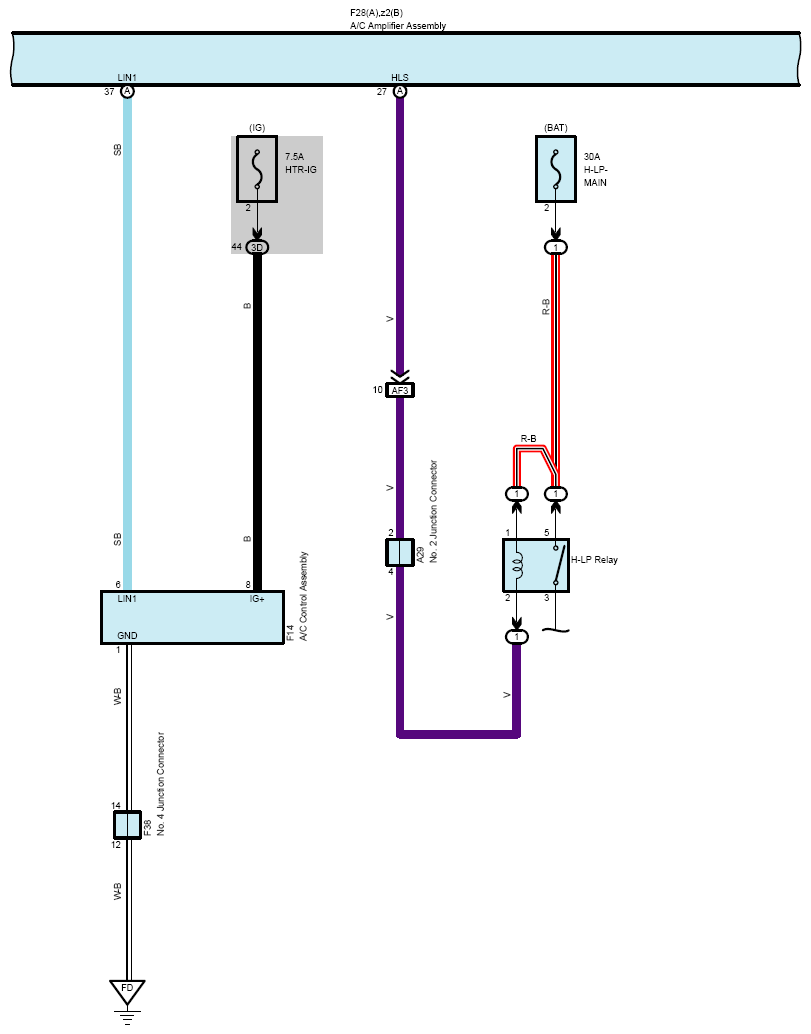

Fig 3: Air Conditioning (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Air Conditioning (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

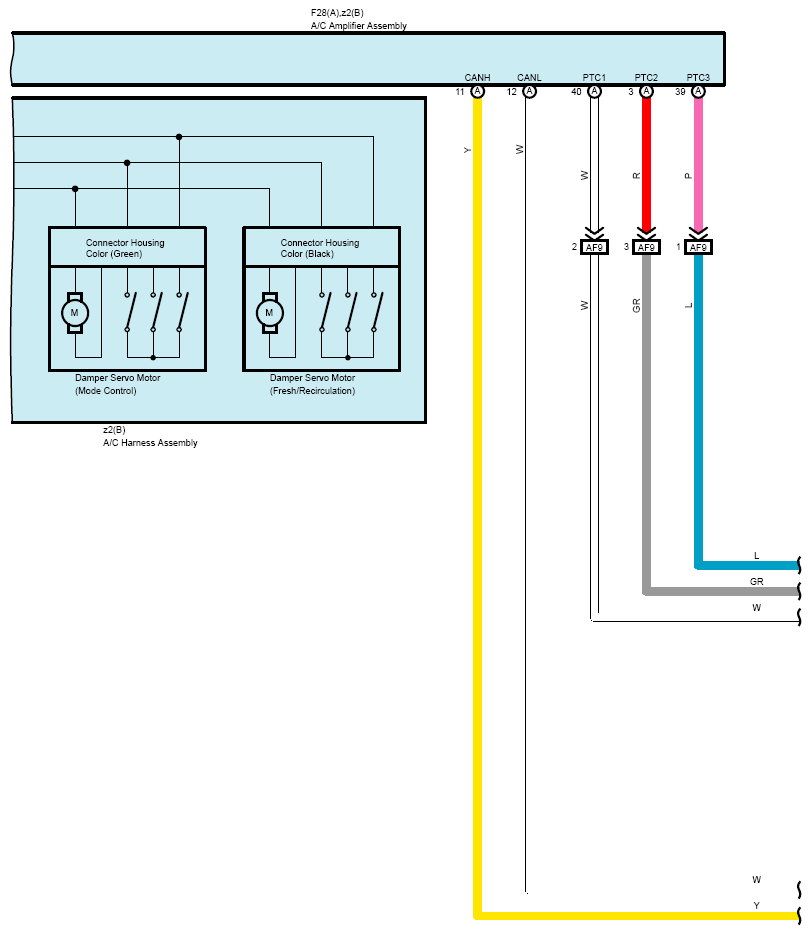

Fig 5: Air Conditioning (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

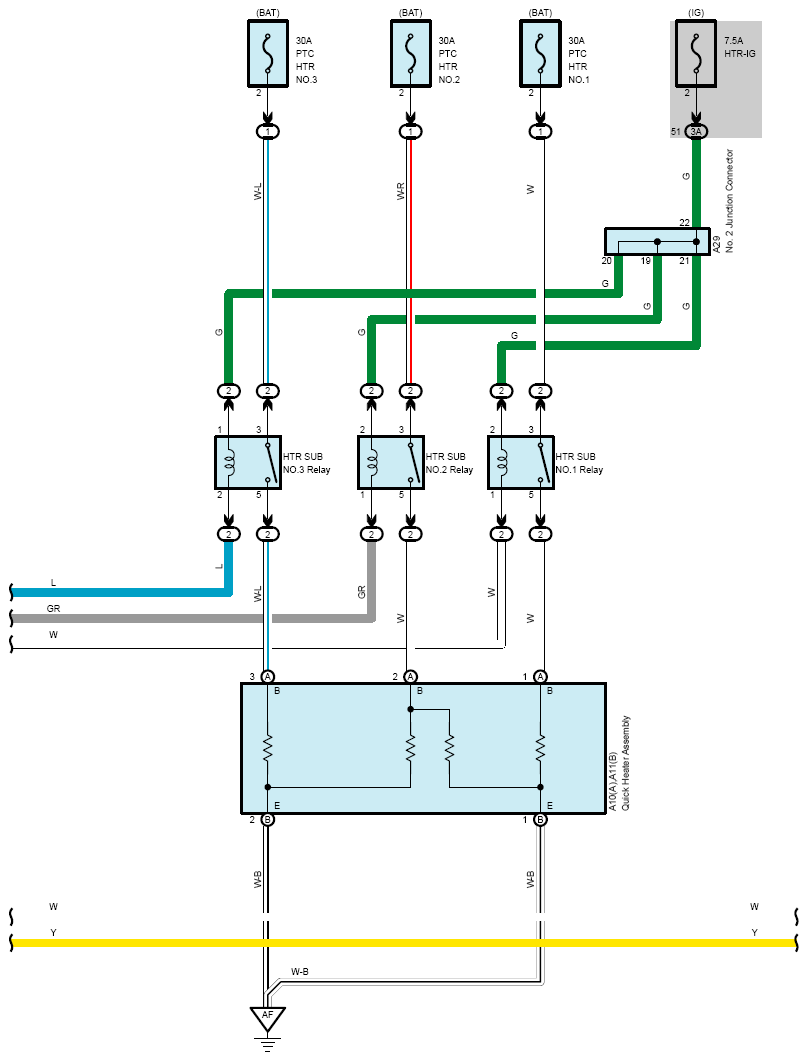

Fig 6: Air Conditioning (6 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Air Conditioning (7 Of 9)

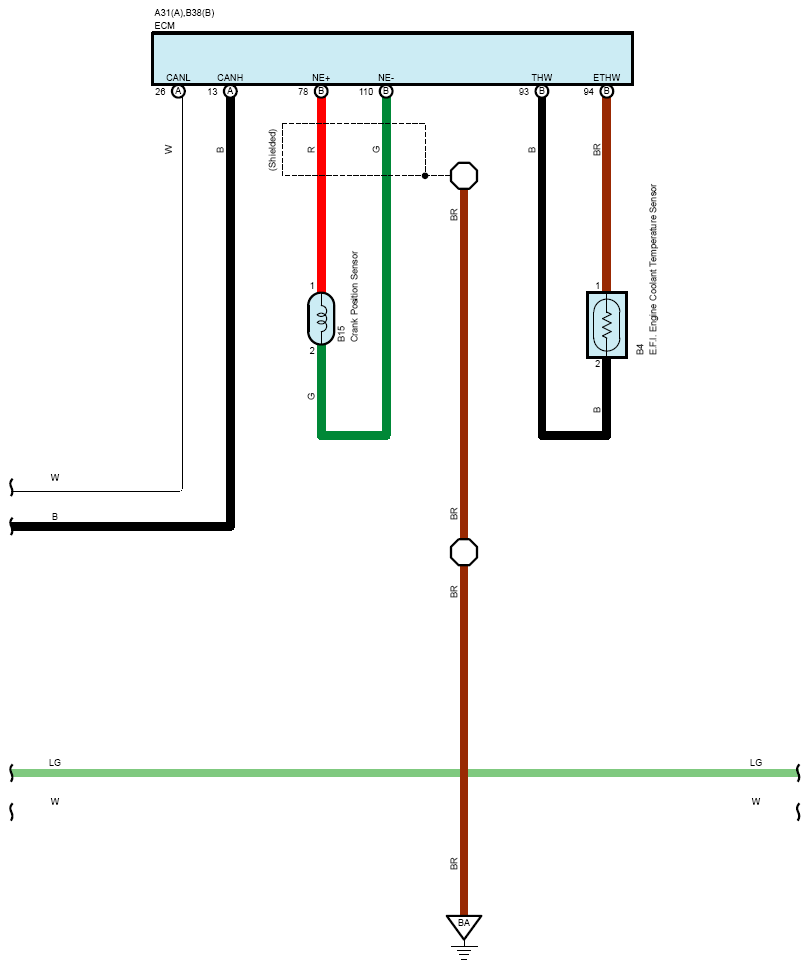

Fig 8: Air Conditioning (8 Of 9)

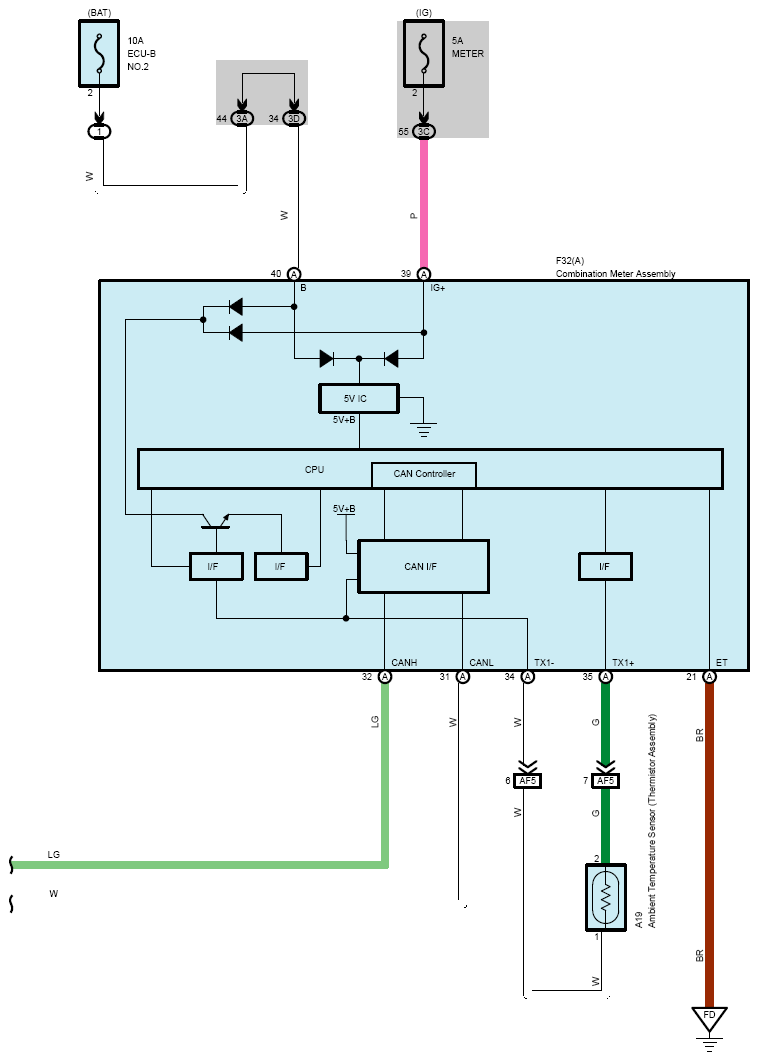

Fig 9: Air Conditioning (9 Of 9)
