OEM System Circuits: Charging: Connectors

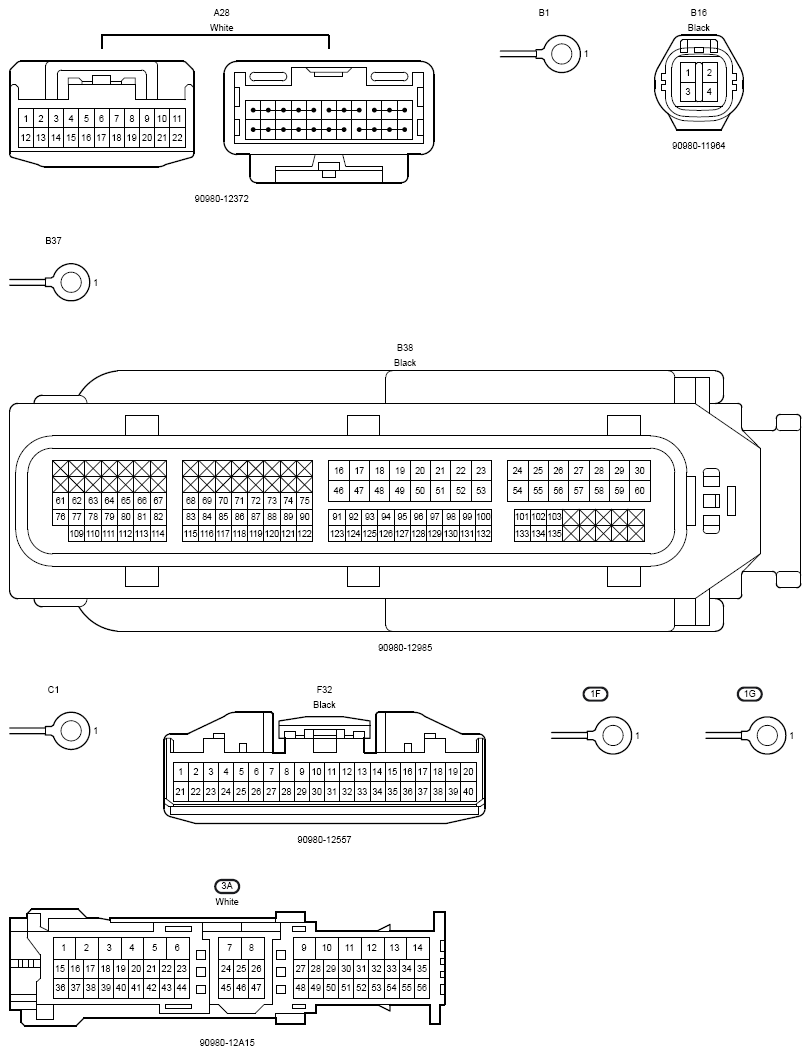

Fig 1: Connectors (1 Of 2)

G12205469

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

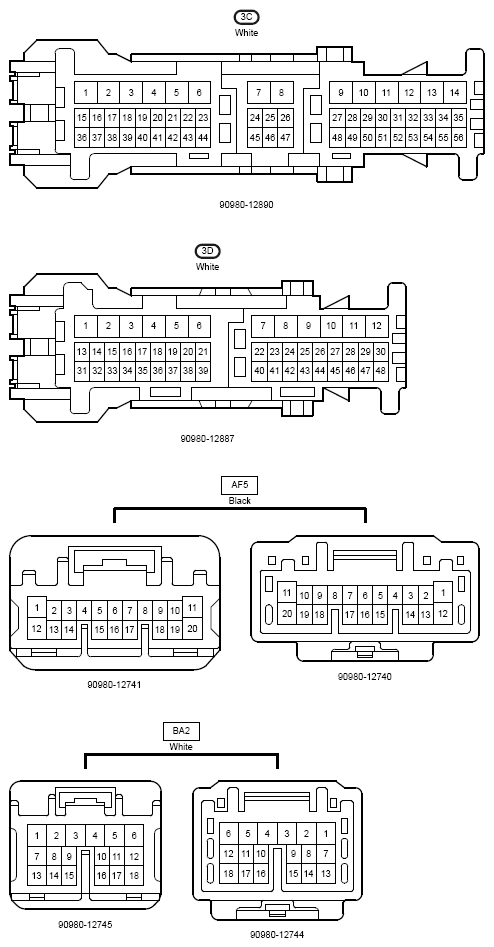

Fig 2: Connectors (1 Of 2)

G12205470

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
