System Diagrams

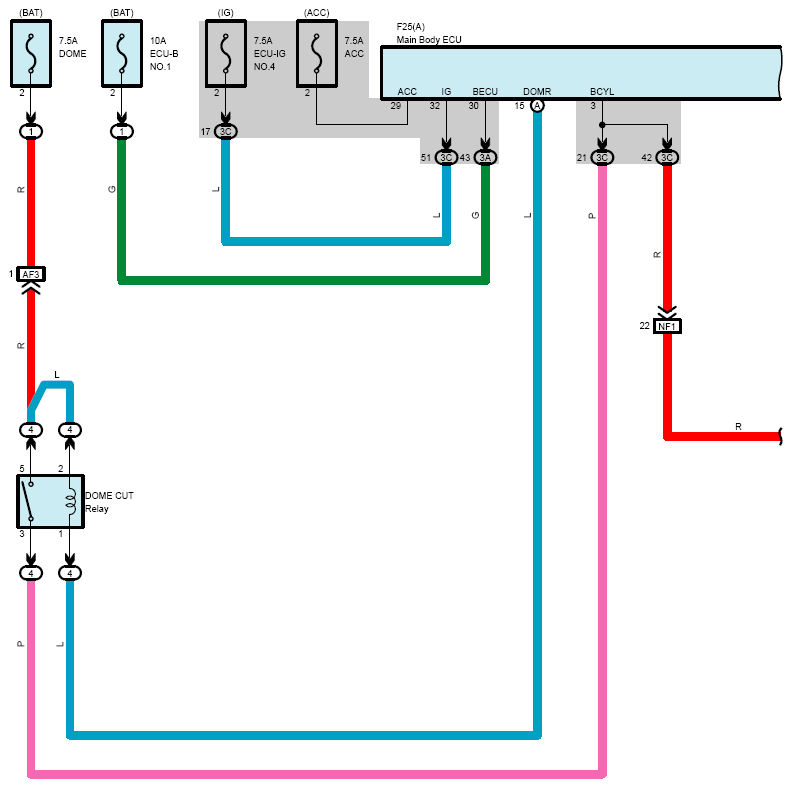

Fig 1: Interior Light (1 Of 4)
G12205514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

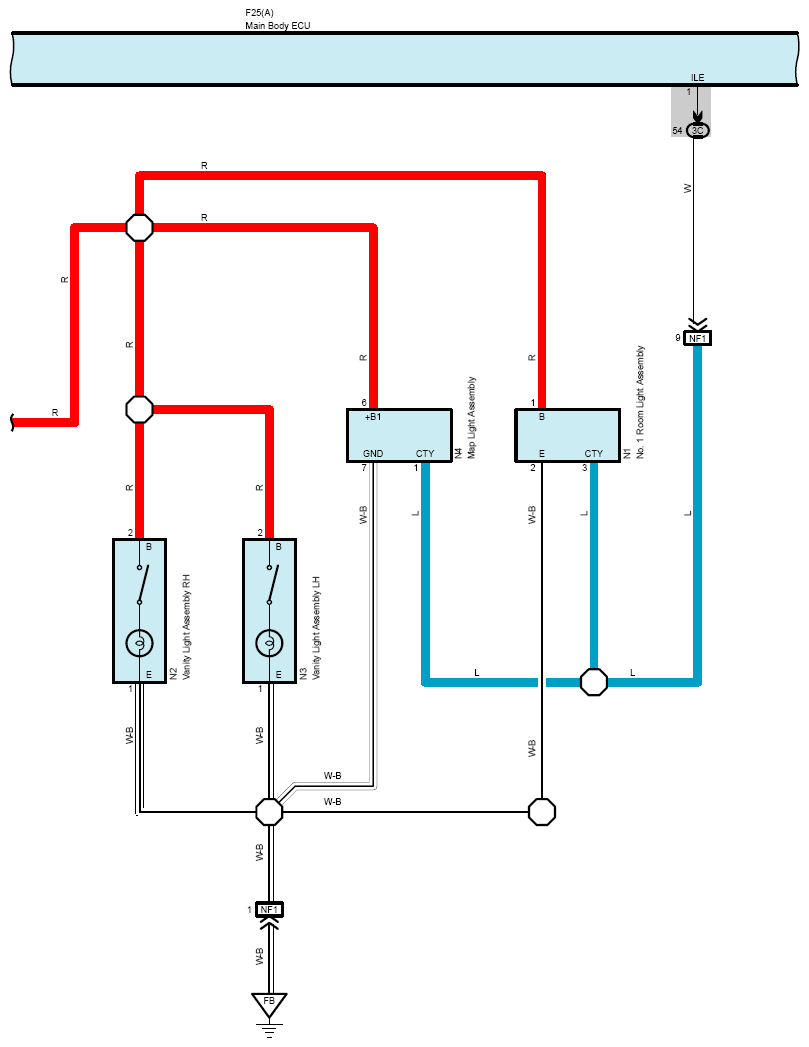

Fig 2: Interior Light (2 Of 4)
G12205515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

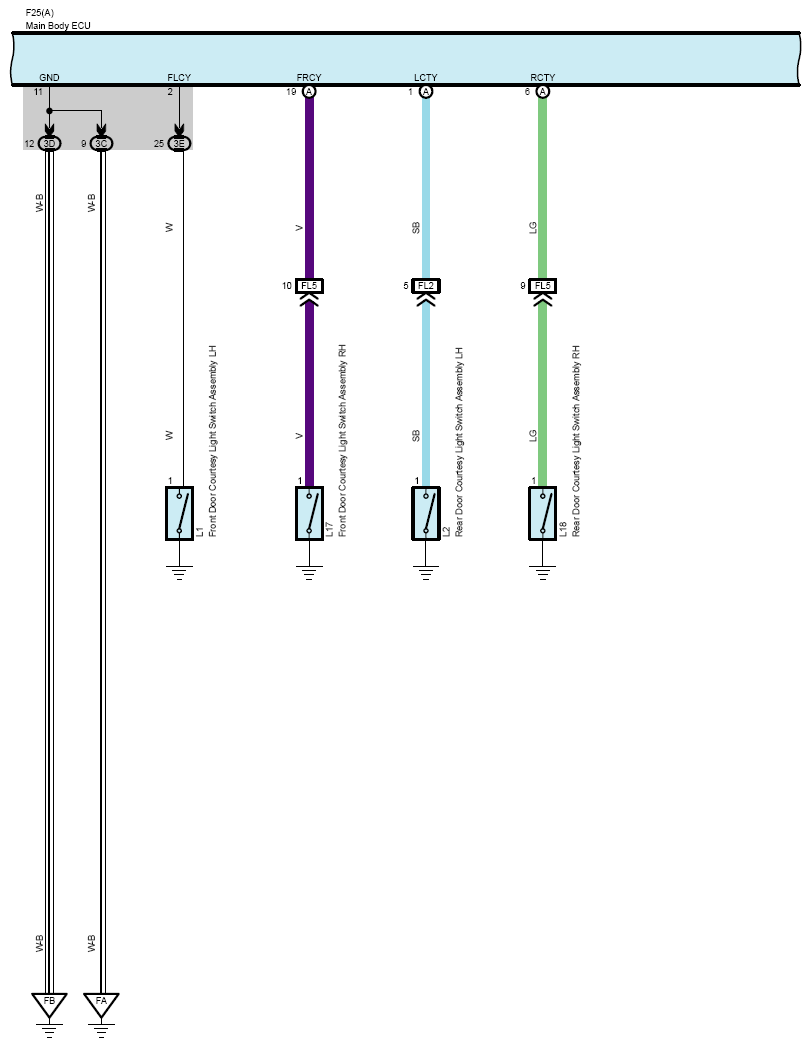

Fig 3: Interior Light (3 Of 4)
G12205516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

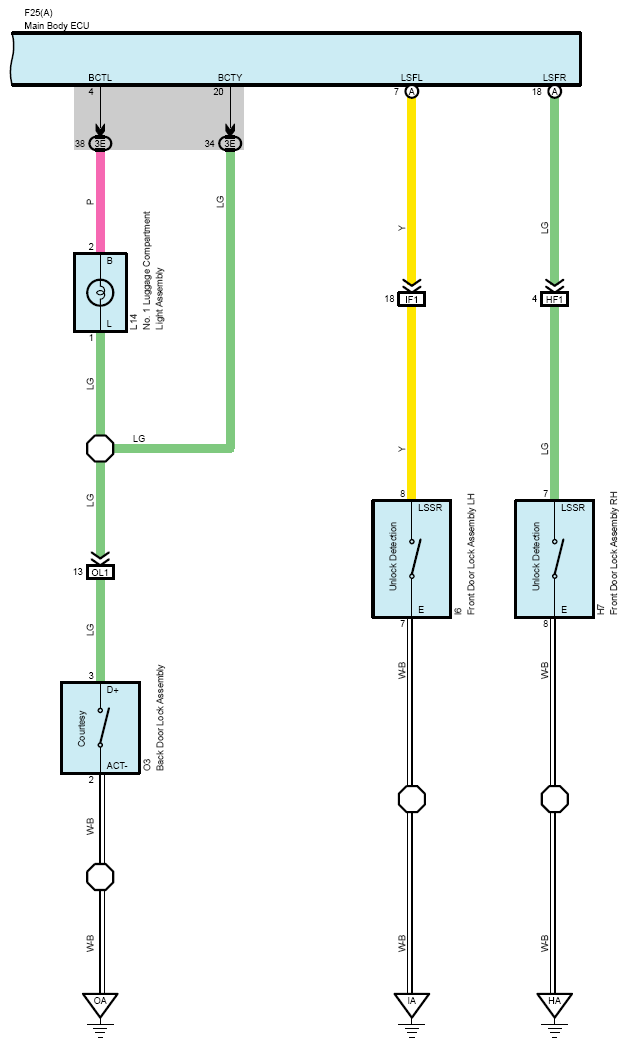

Fig 4: Interior Light (4 Of 4)
G12205517Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
