System Diagrams

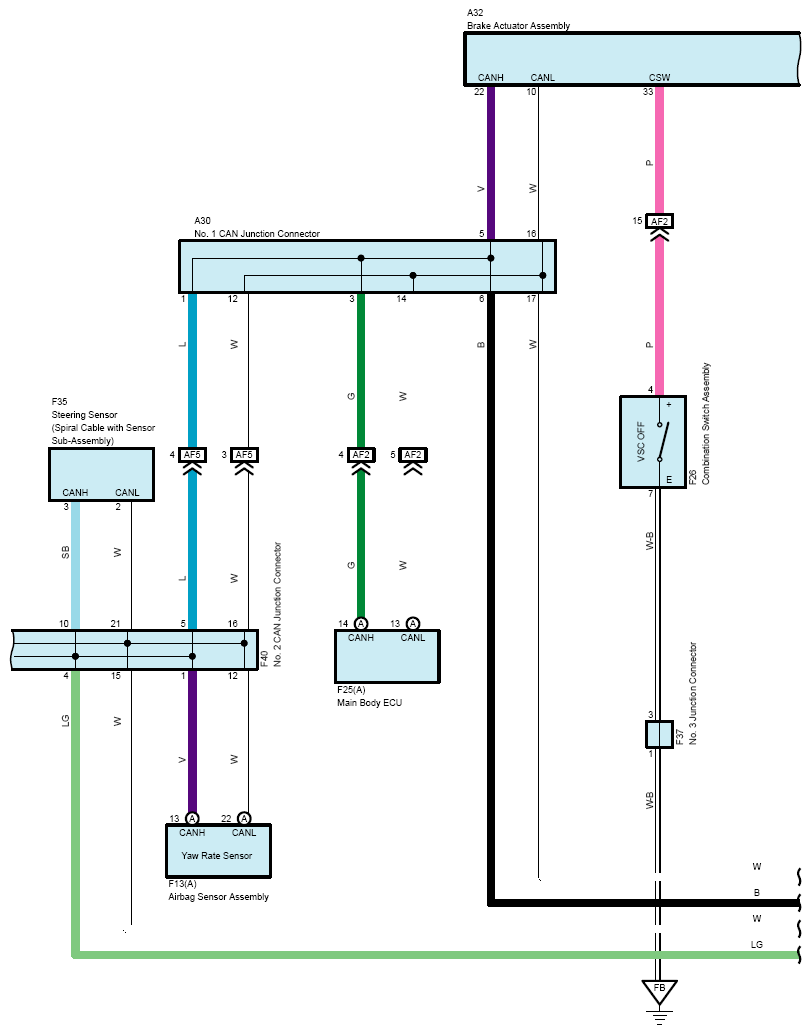

Fig 1: Lane Departure Alert, Pre-Collision System (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

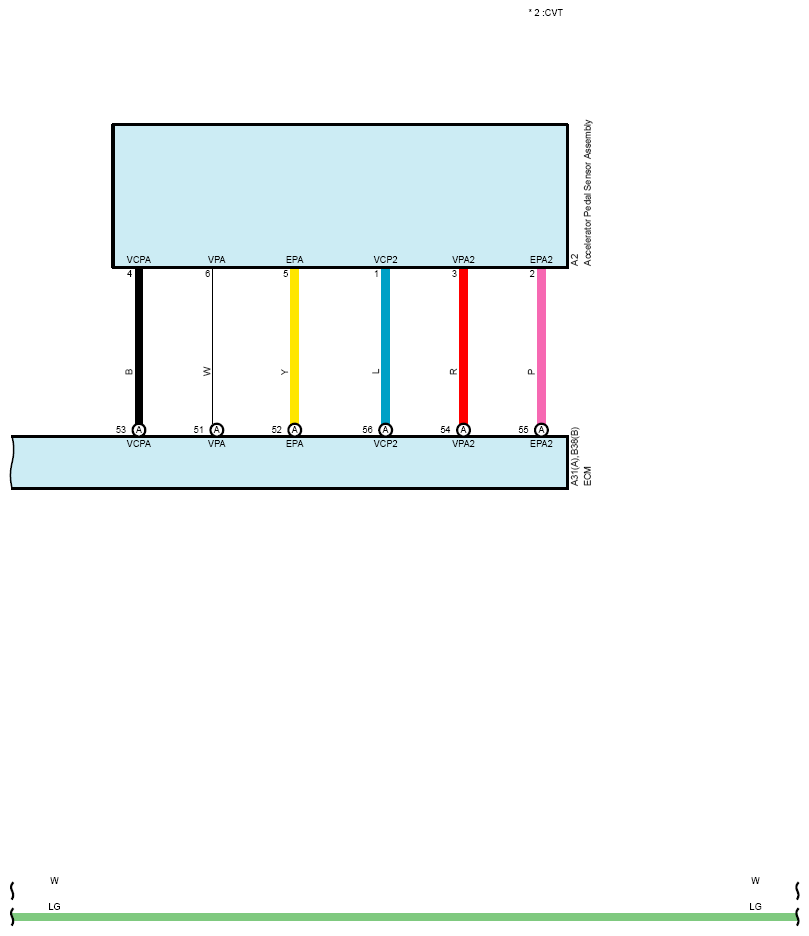

Fig 2: Lane Departure Alert, Pre-Collision System (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

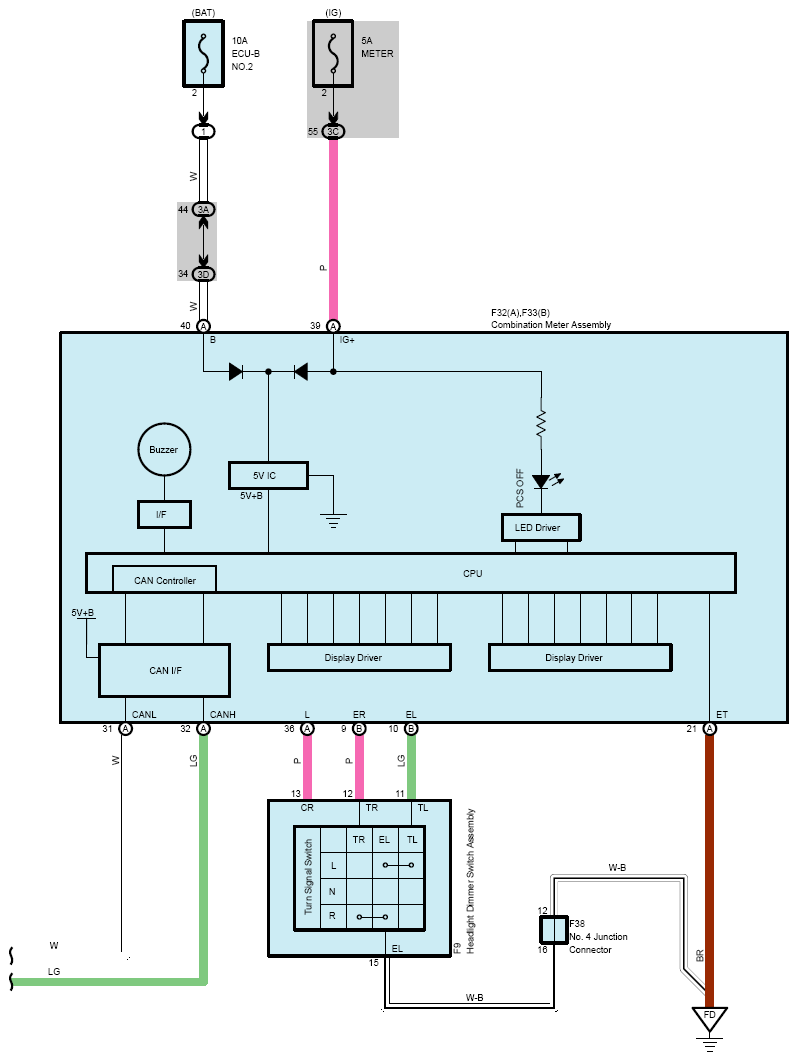

Fig 3: Lane Departure Alert, Pre-Collision System (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

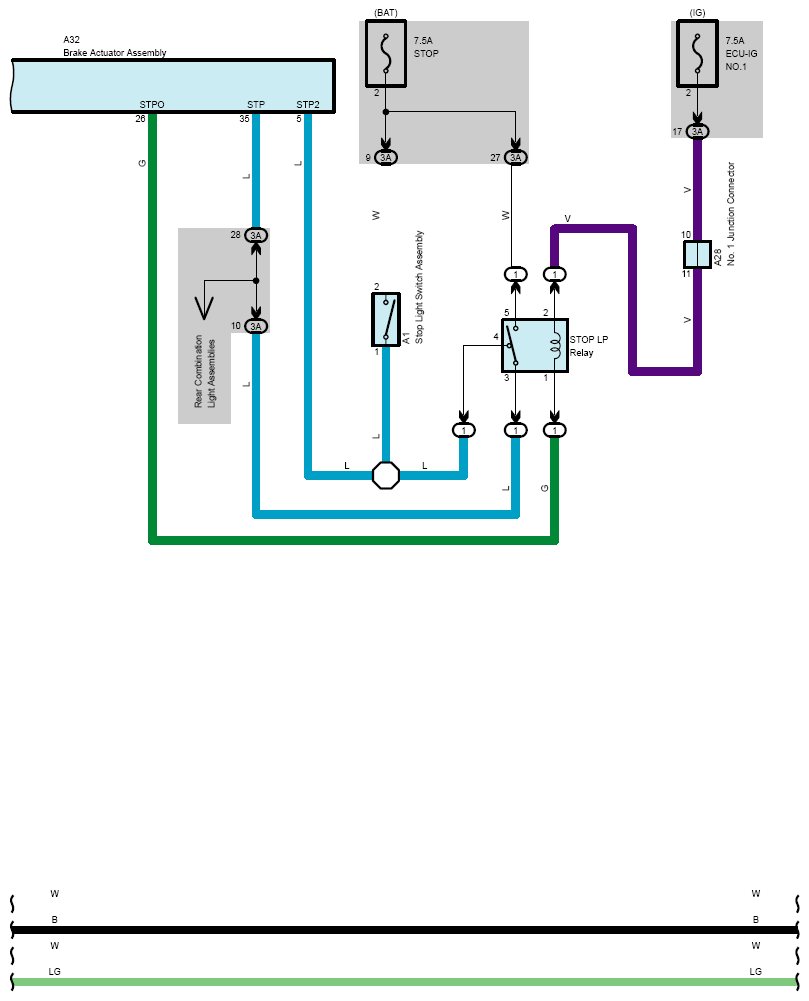

Fig 4: Lane Departure Alert, Pre-Collision System (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

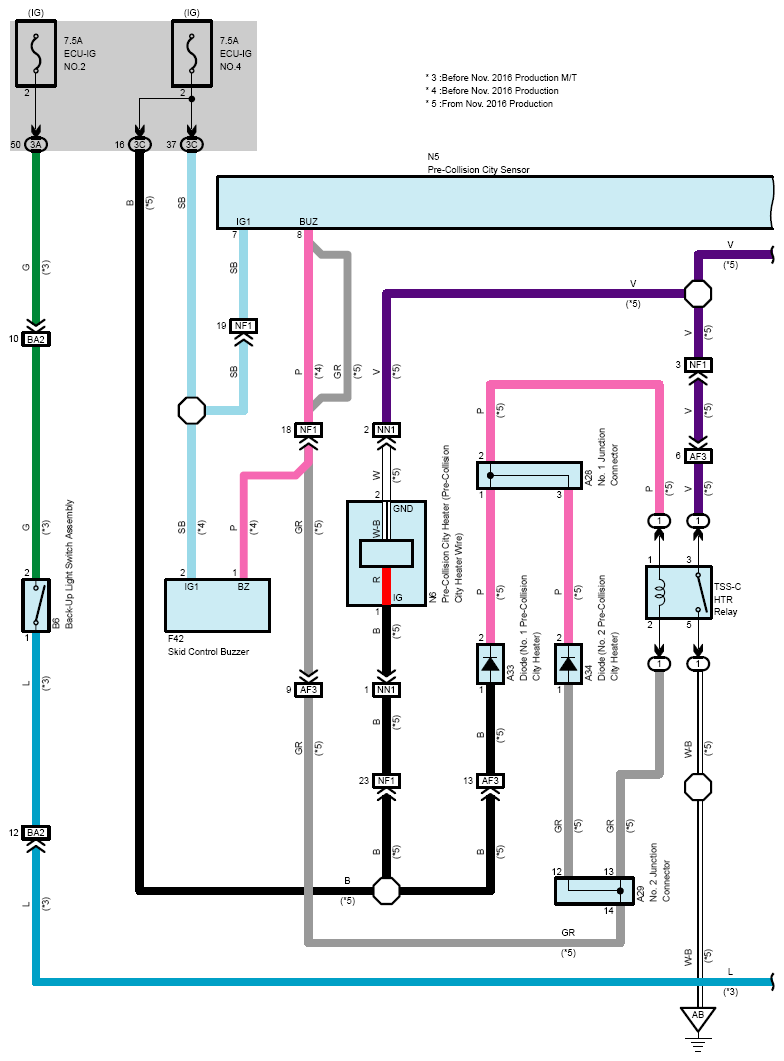

Fig 5: Lane Departure Alert, Pre-Collision System (5 Of 7)

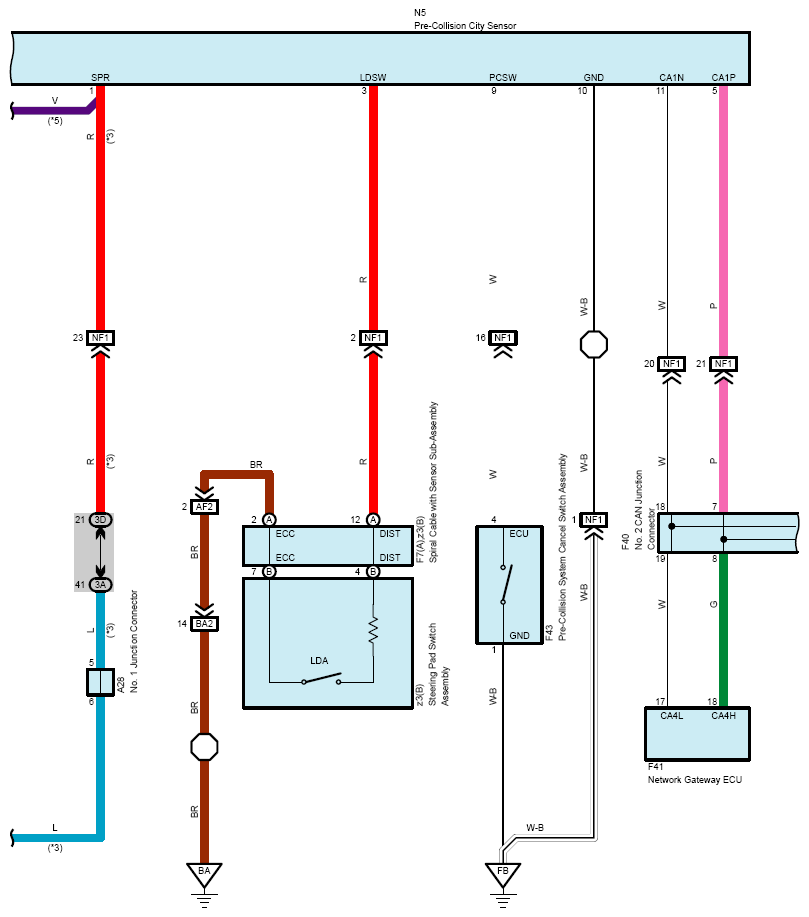

Fig 6: Lane Departure Alert, Pre-Collision System (6 Of 7)

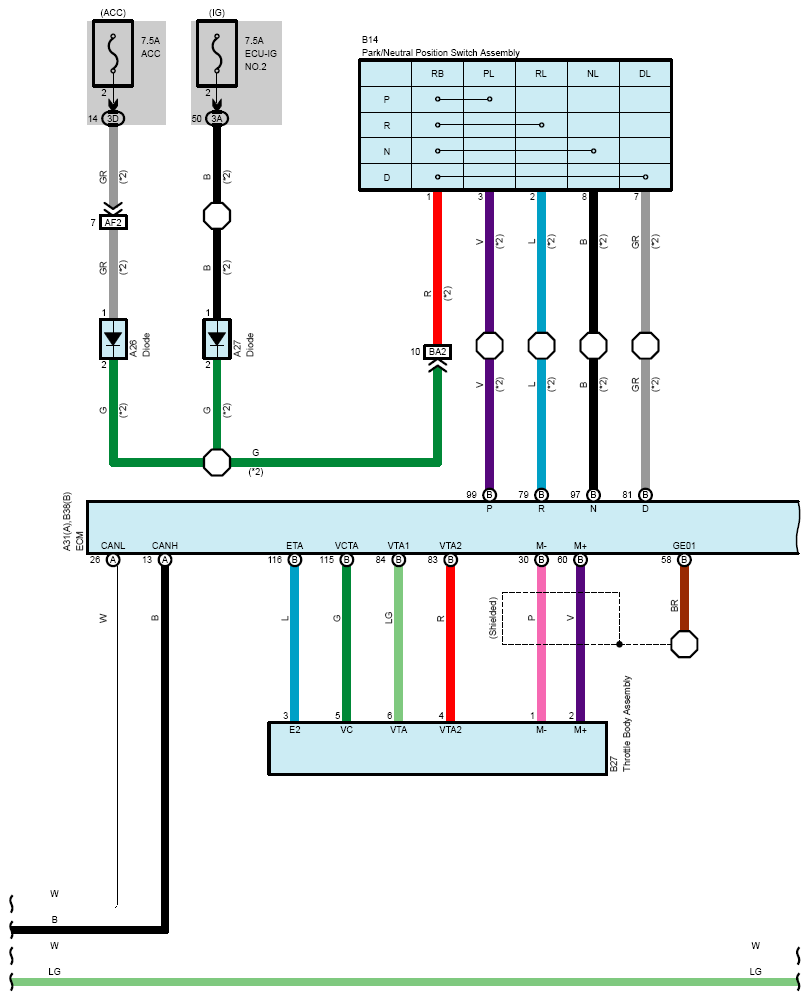

Fig 7: Lane Departure Alert, Pre-Collision System (7 Of 7)
