System Diagrams — 2017 Toyota Corolla iM Standard Trans Service Manual ~ FixVault

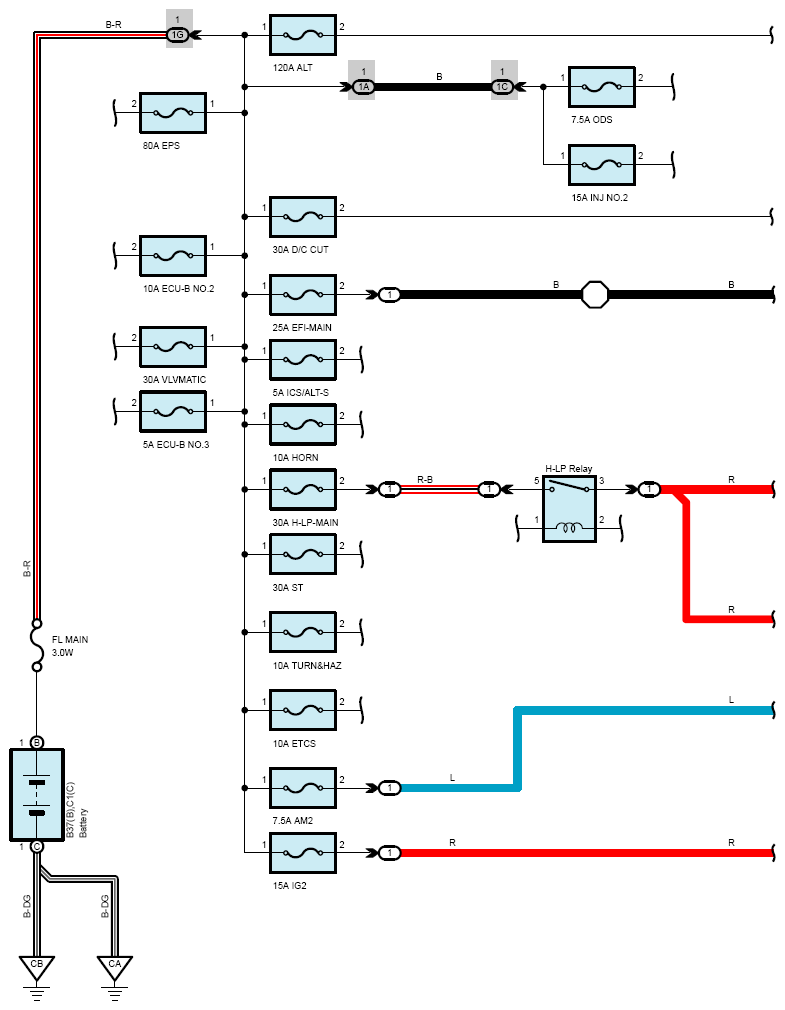

Fig 1: Power Source (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

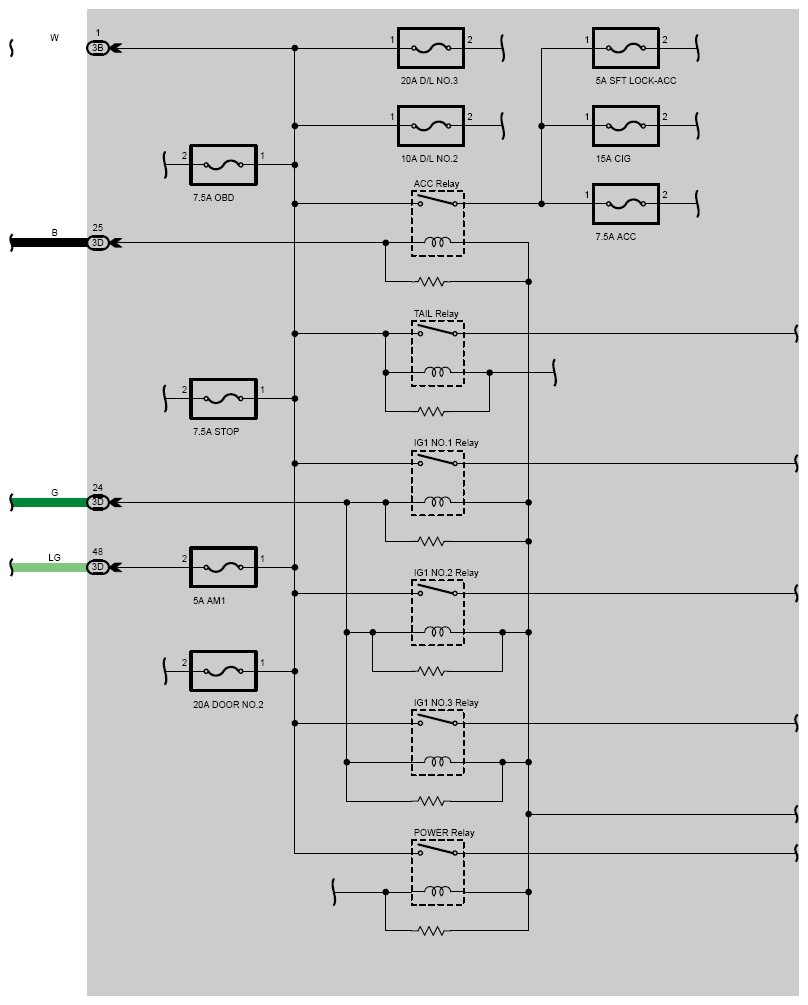

Fig 2: Power Source (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Power Source (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Power Source (4 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Power Source (5 Of 6)

Fig 6: Power Source (6 Of 6)
