System Diagrams

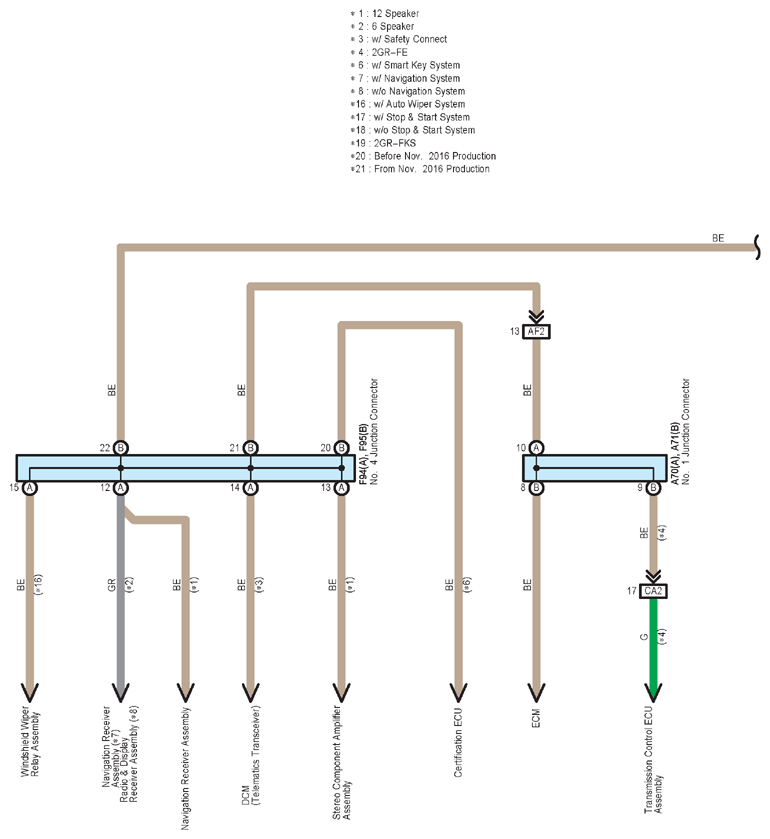

Fig 1: Combination Meter (1 Of 16)

G12240668

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

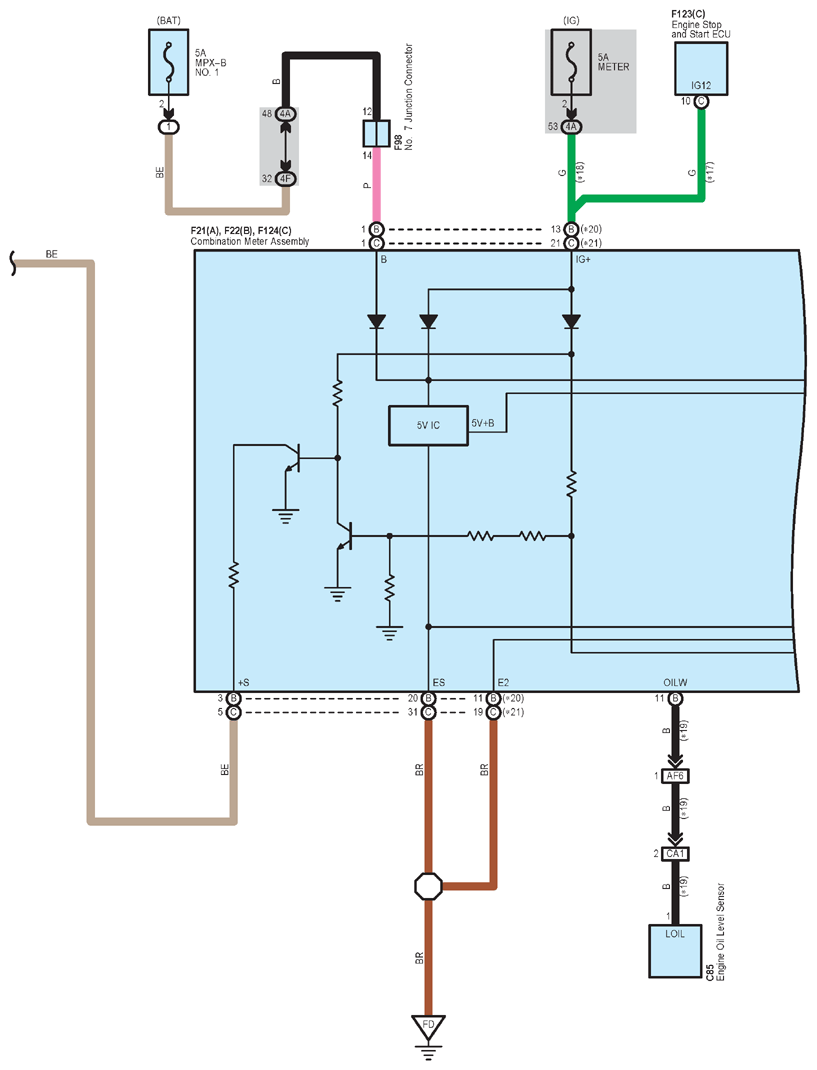

Fig 2: Combination Meter (2 Of 16)

G12240669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

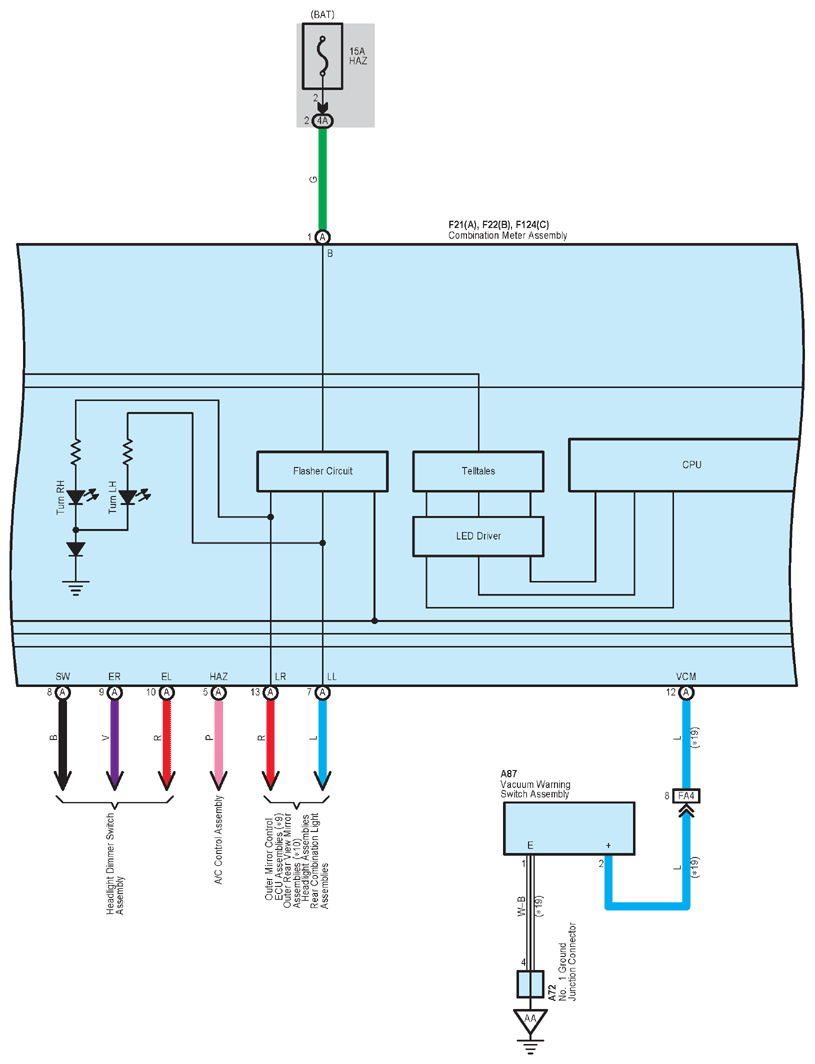

Fig 3: Combination Meter (3 Of 16)

G12240670

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

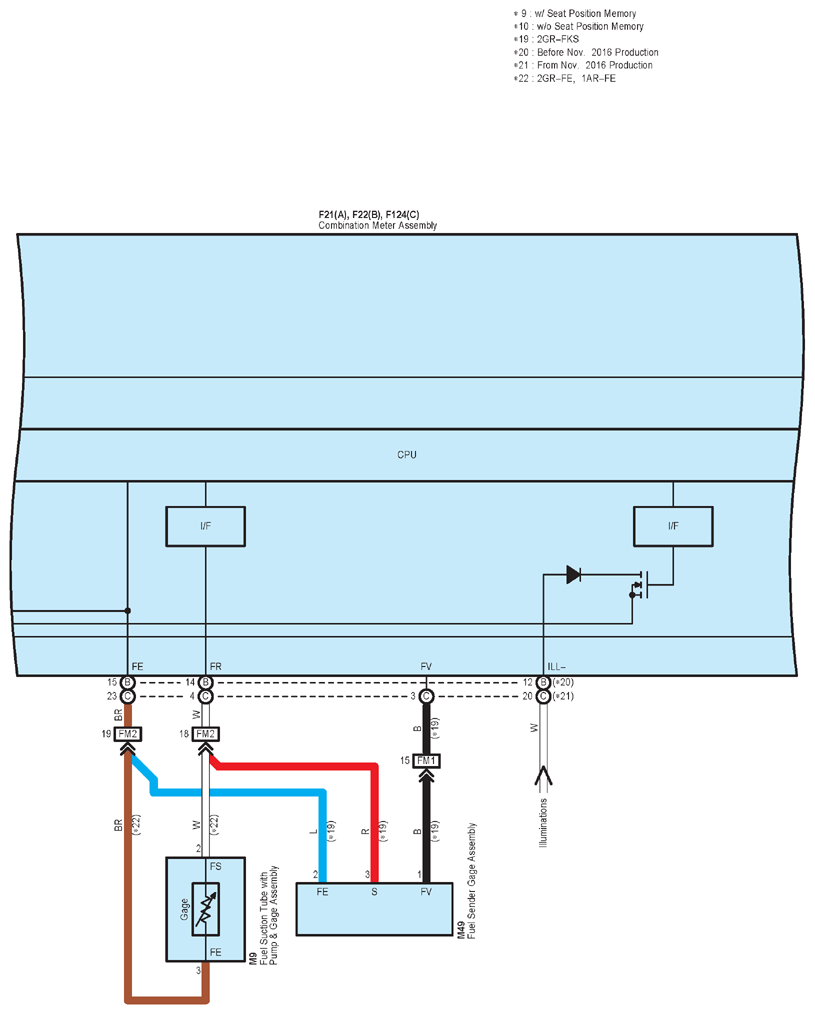

Fig 4: Combination Meter (4 Of 16)

G12240671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

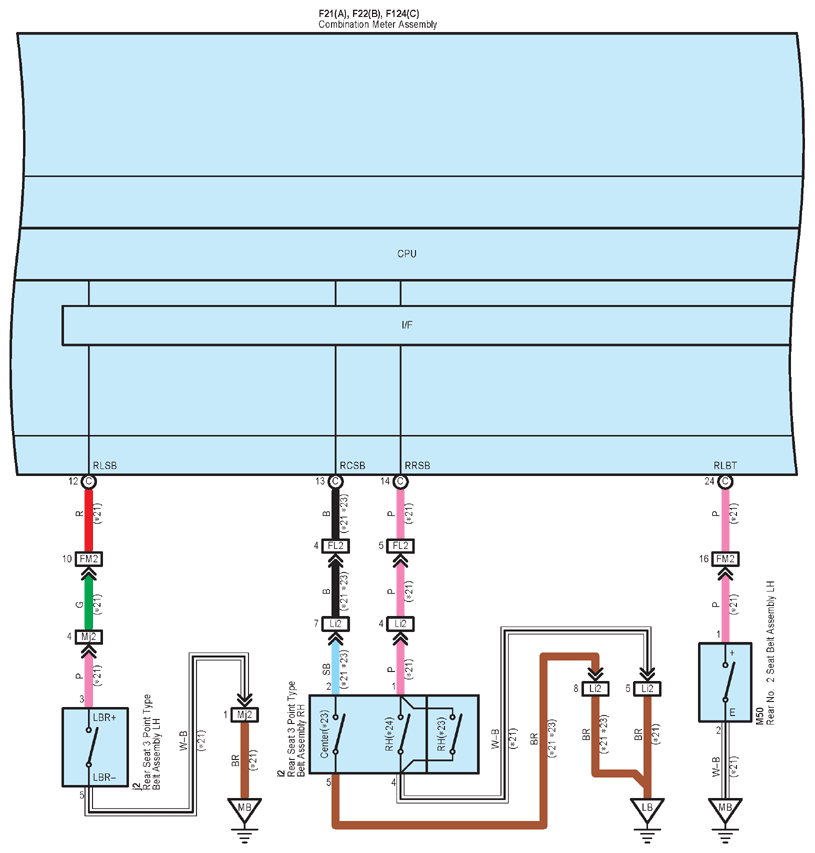

Fig 5: Combination Meter (5 Of 16)

G12240672

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

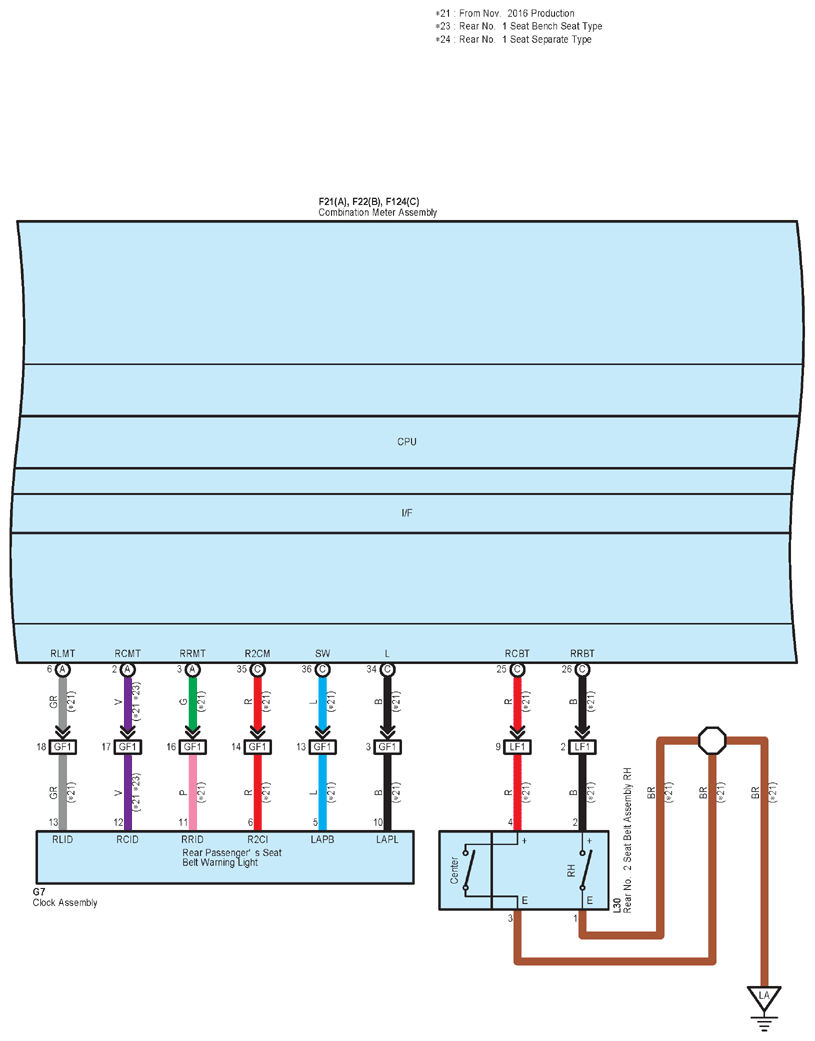

Fig 6: Combination Meter (6 Of 16)

G12240673

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

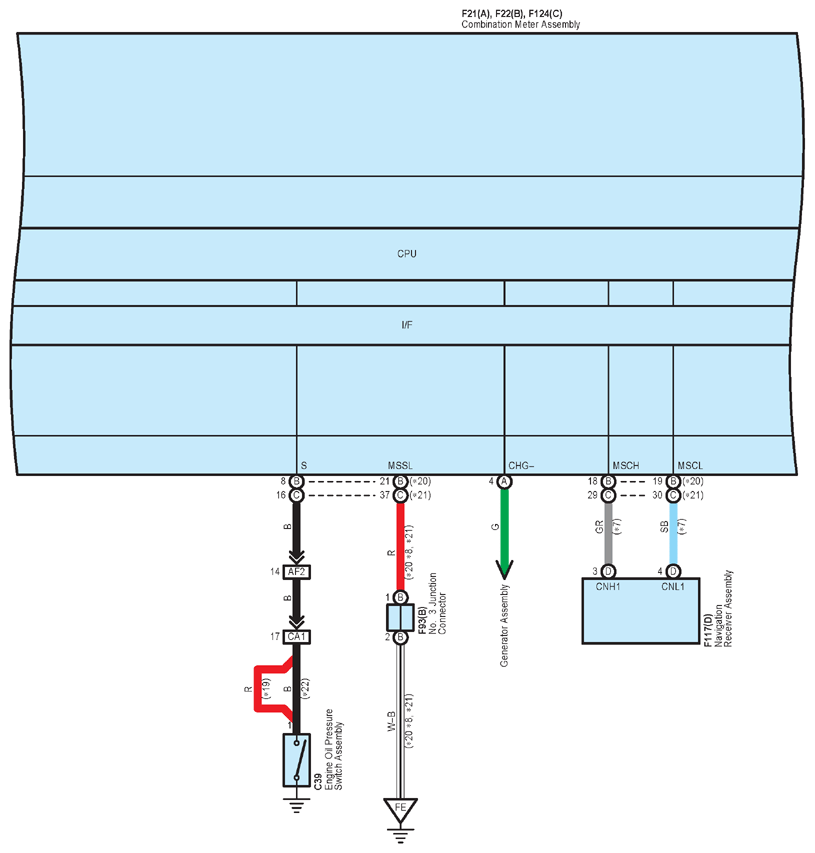

Fig 7: Combination Meter (7 Of 16)

G12240674

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

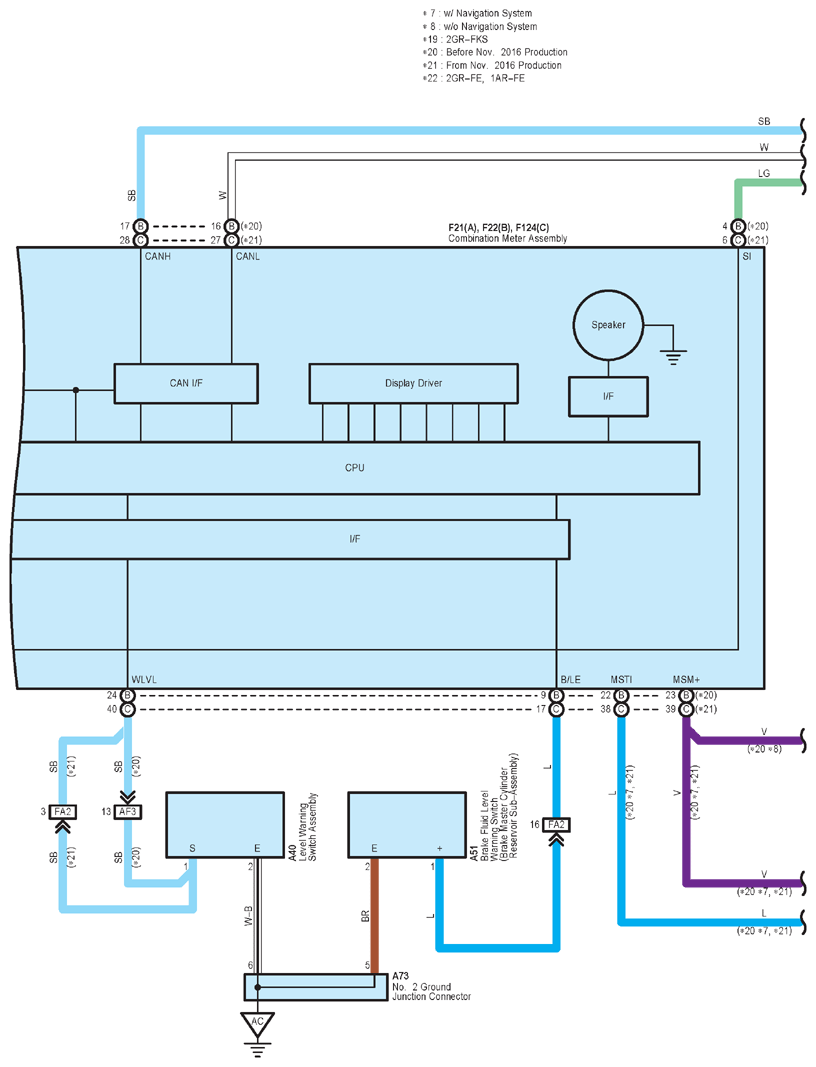

Fig 8: Combination Meter (8 Of 16)

G12240675

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

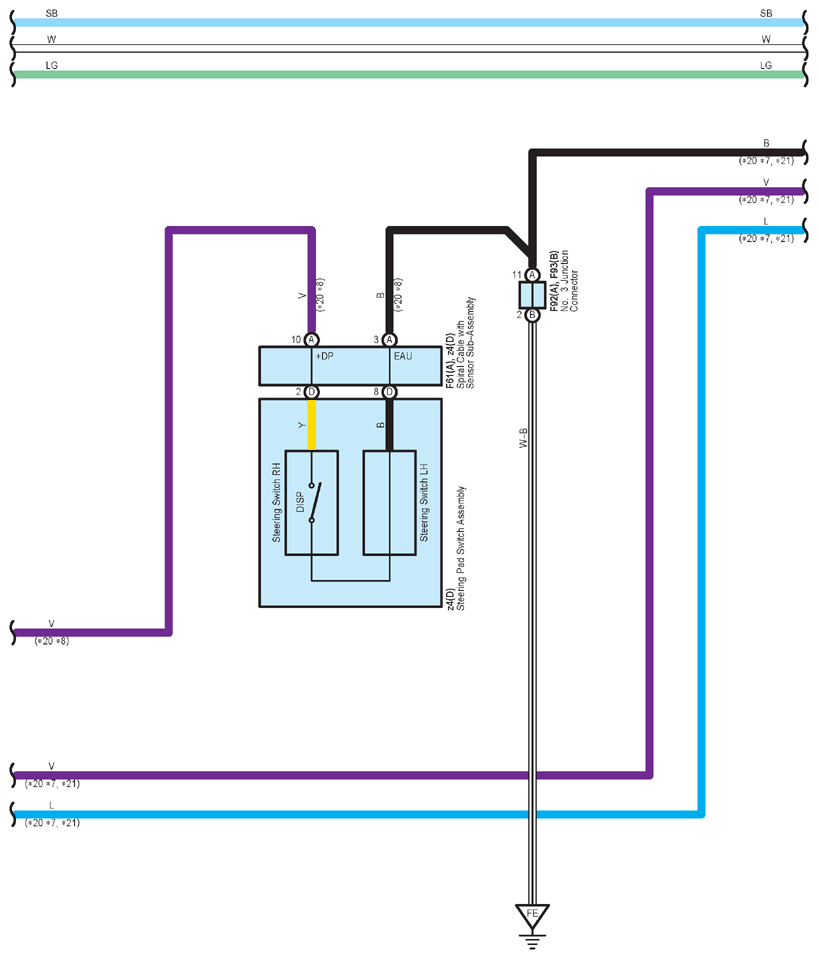

Fig 9: Combination Meter (9 Of 16)

G12240676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

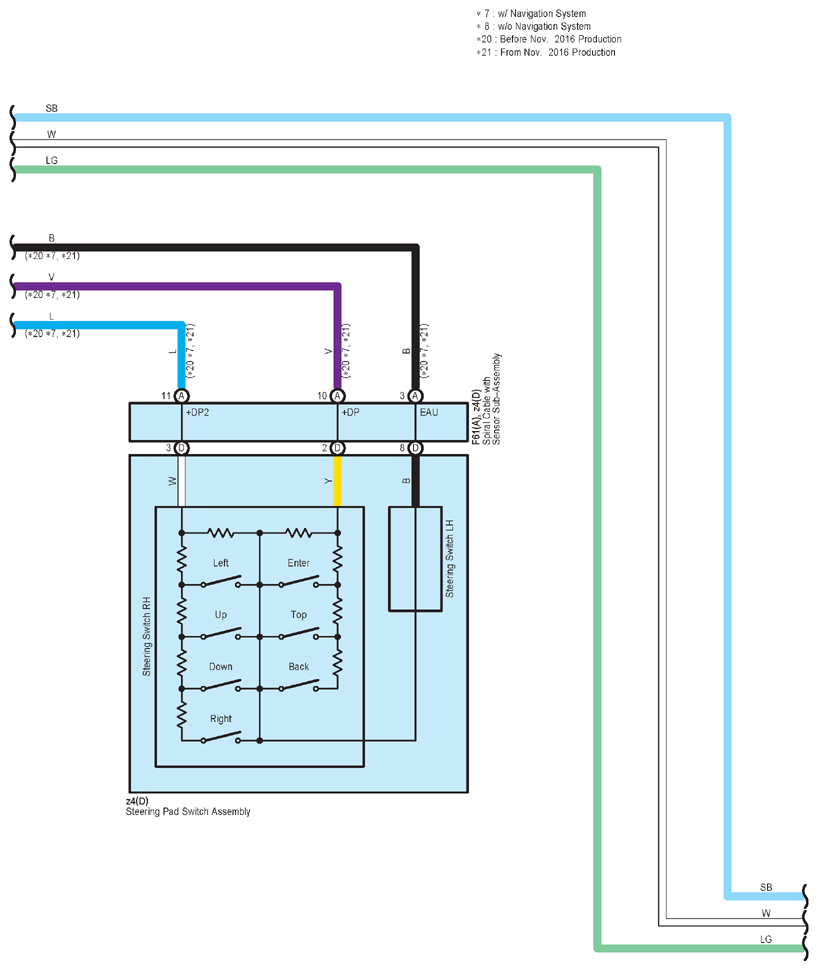

Fig 10: Combination Meter (10 Of 16)

G12240677

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

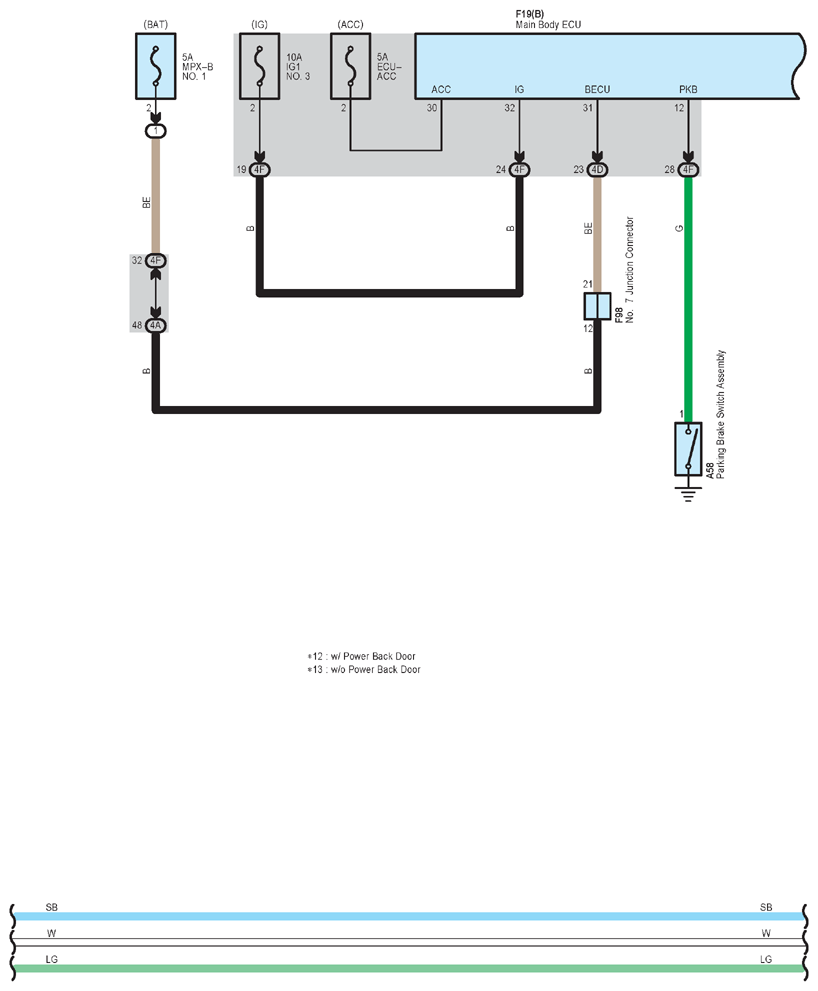

Fig 11: Combination Meter (11 Of 16)

G12240678

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

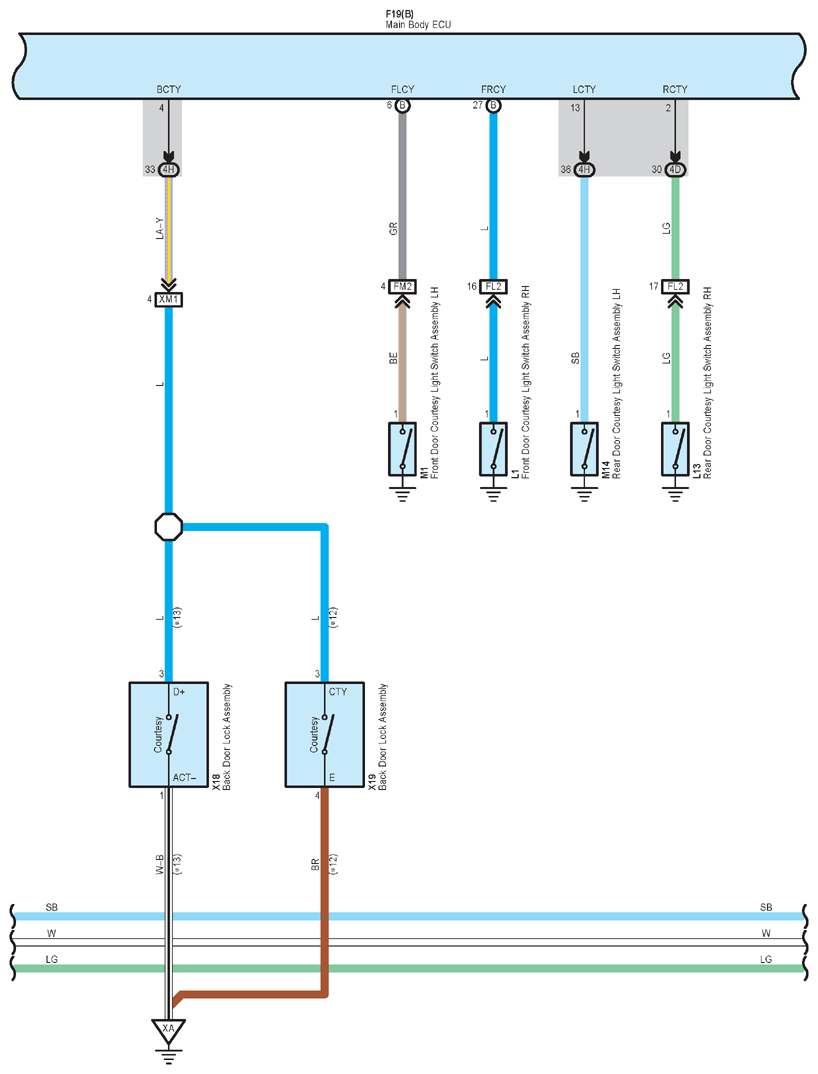

Fig 12: Combination Meter (12 Of 16)

G12240679

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

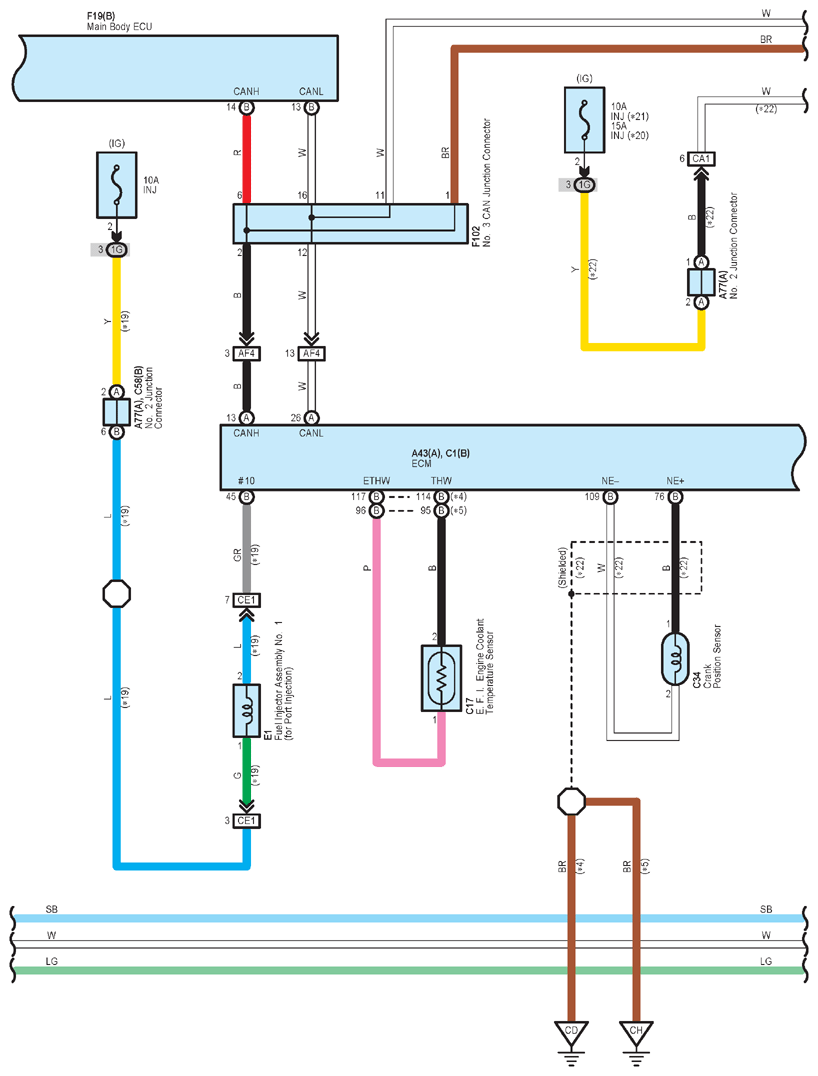

Fig 13: Combination Meter (13 Of 16)

G12240680

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

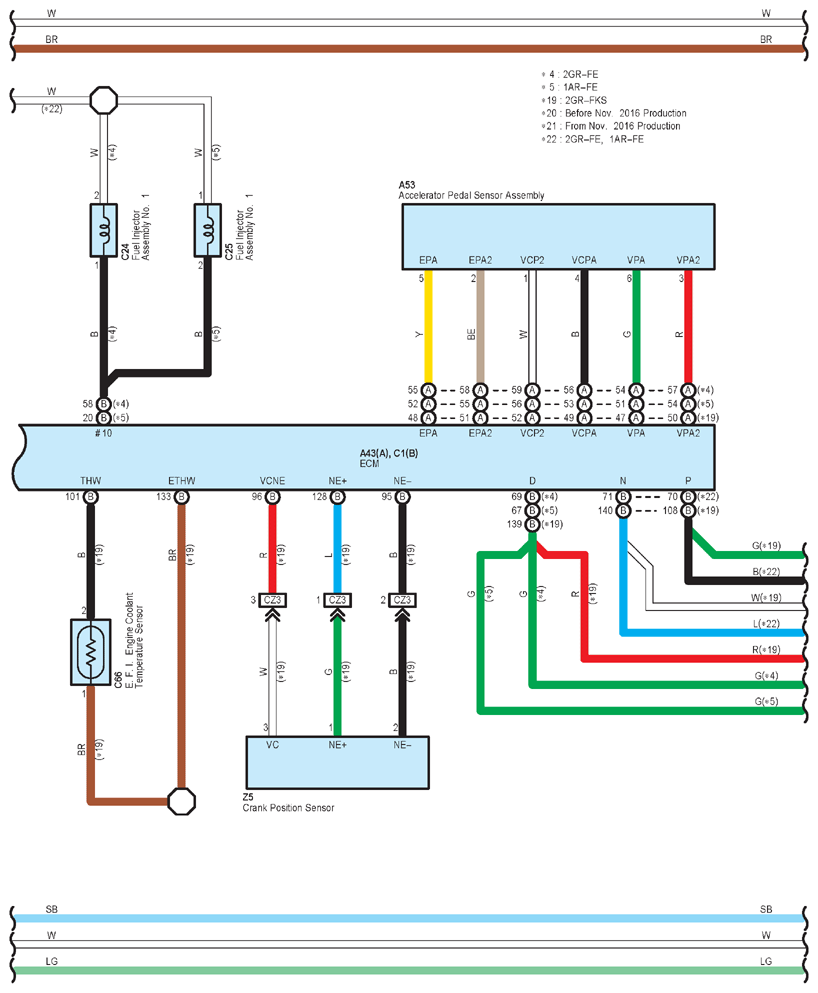

Fig 14: Combination Meter (14 Of 16)

G12240681

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

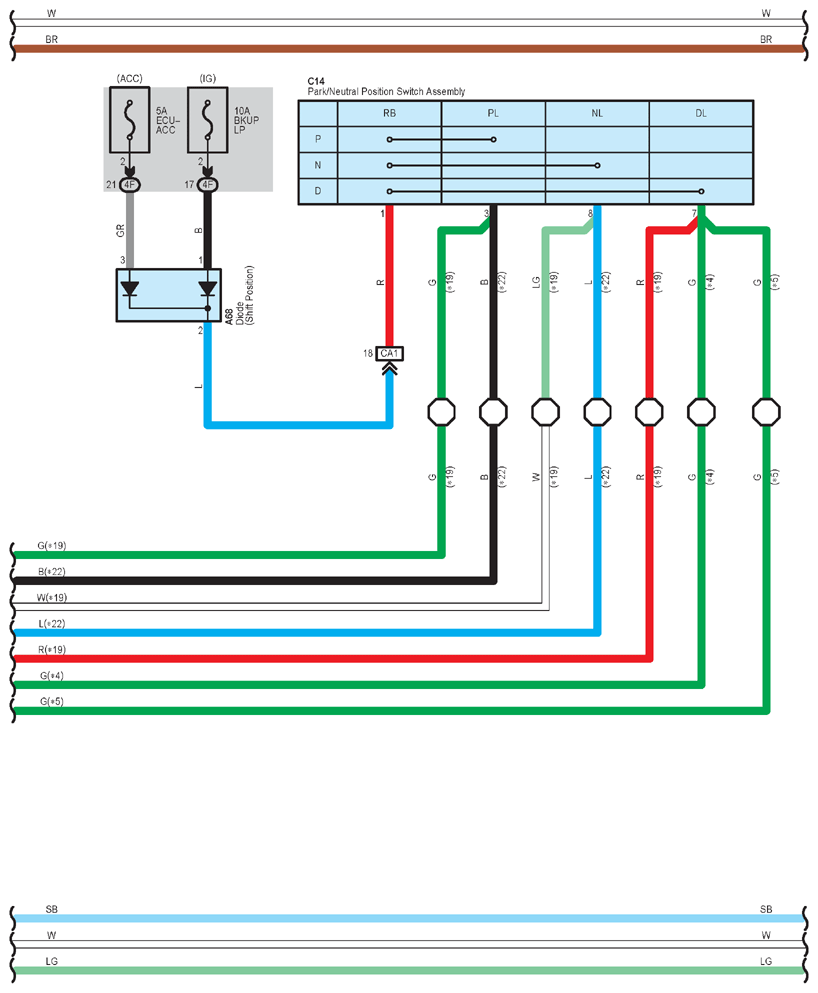

Fig 15: Combination Meter (15 Of 16)

G12240682

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

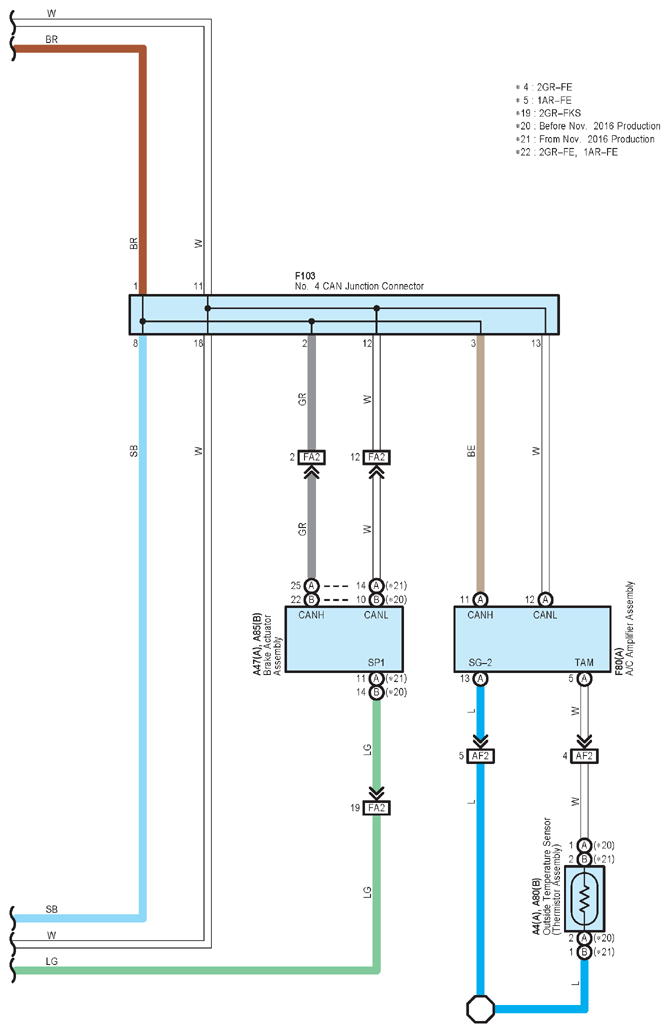

Fig 16: Combination Meter (16 Of 16)

G12240683

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
