System Diagrams — 2017 Toyota Highlander LE Plus, AWD Service Manual ~ FixVault

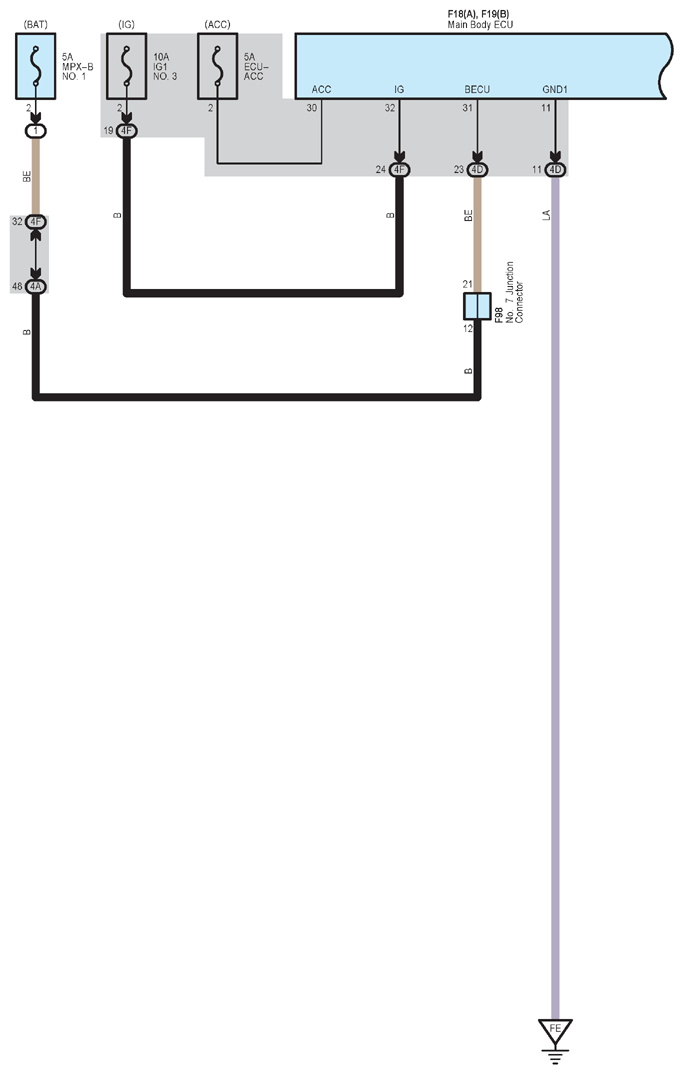

Fig 1: Panoramic View Monitor System (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

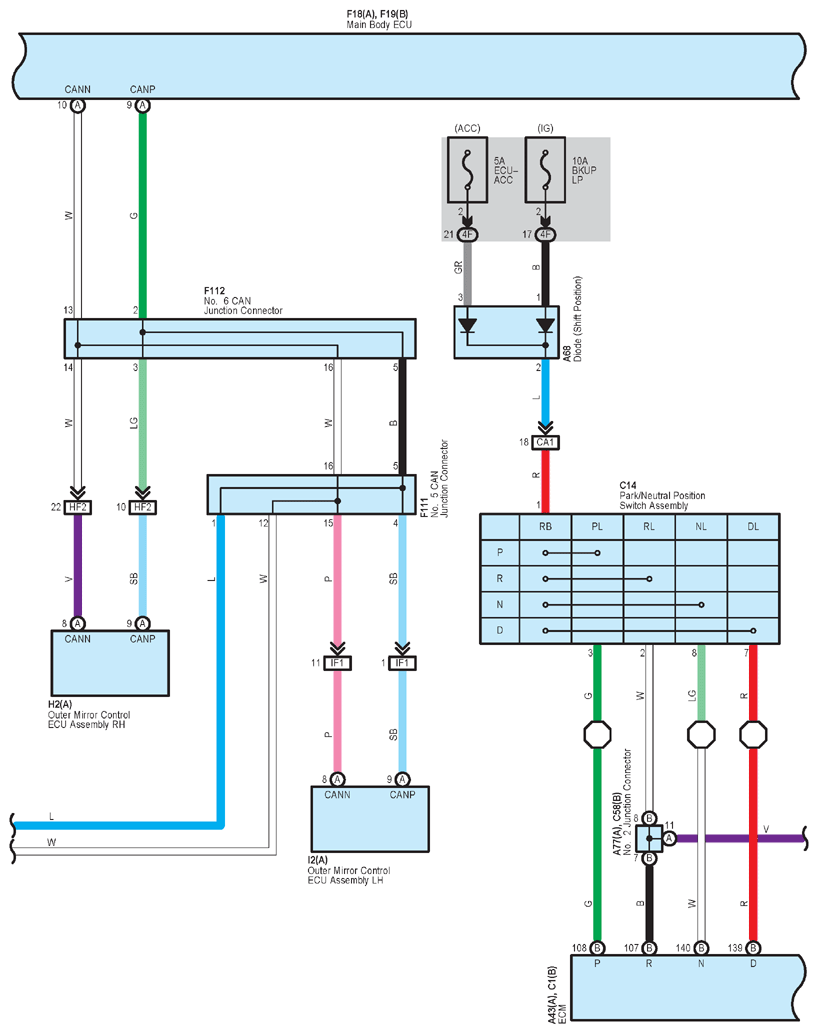

Fig 2: Panoramic View Monitor System (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

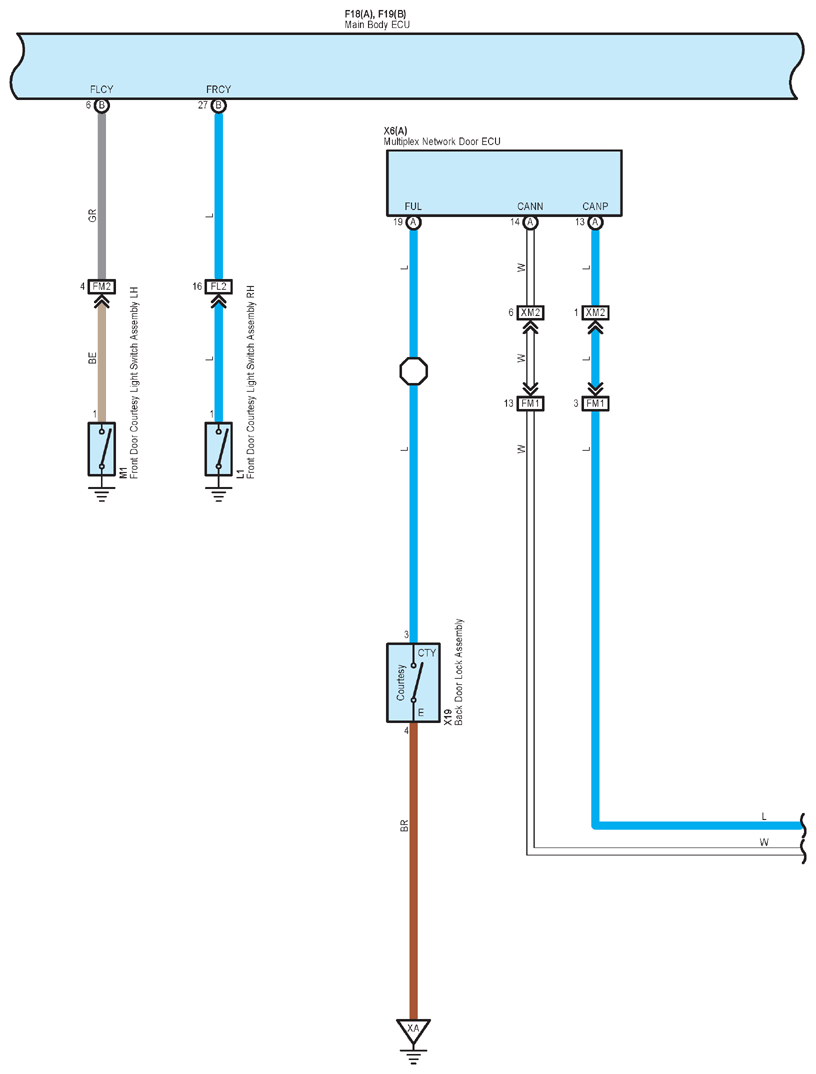

Fig 3: Panoramic View Monitor System (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

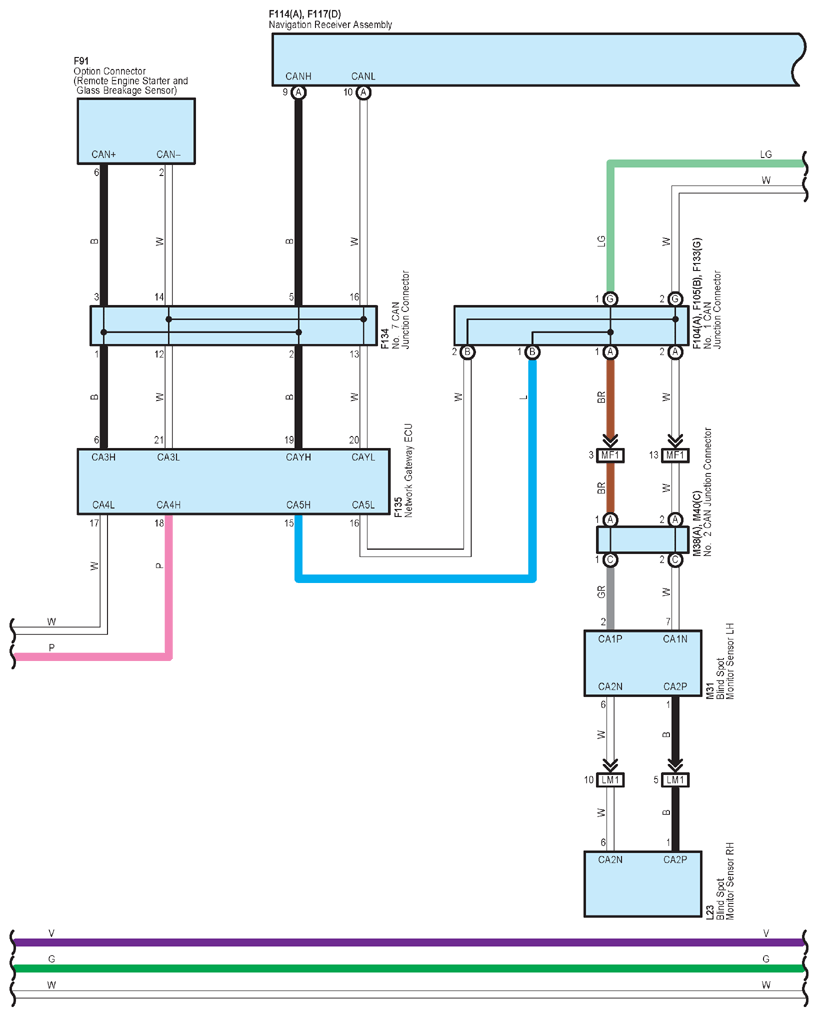

Fig 4: Panoramic View Monitor System (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

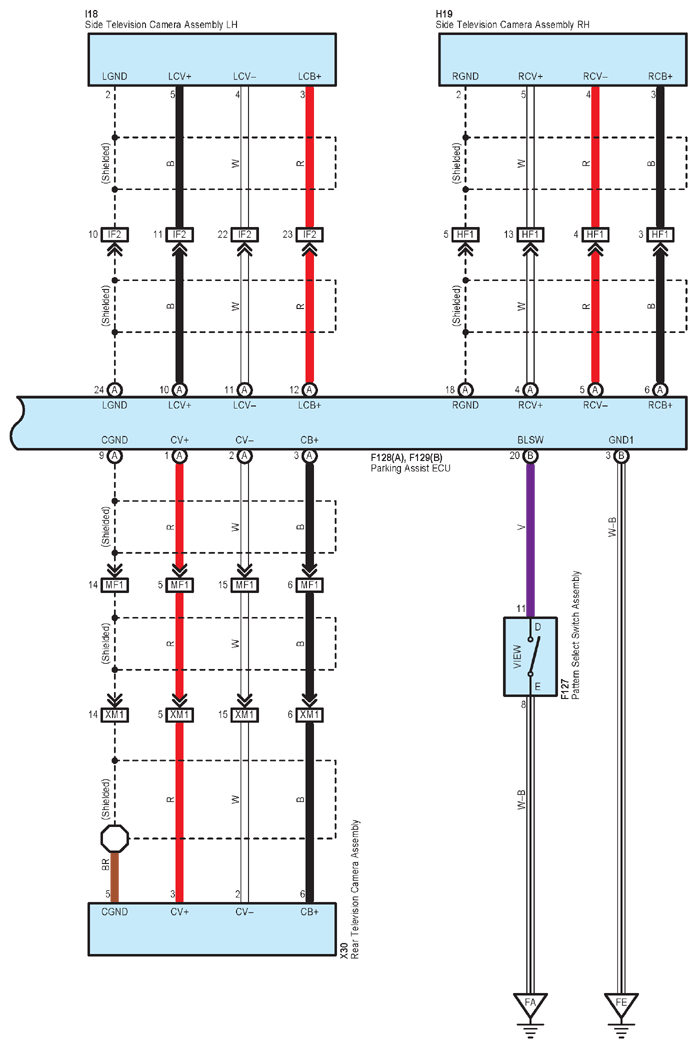

Fig 5: Panoramic View Monitor System (5 Of 7)

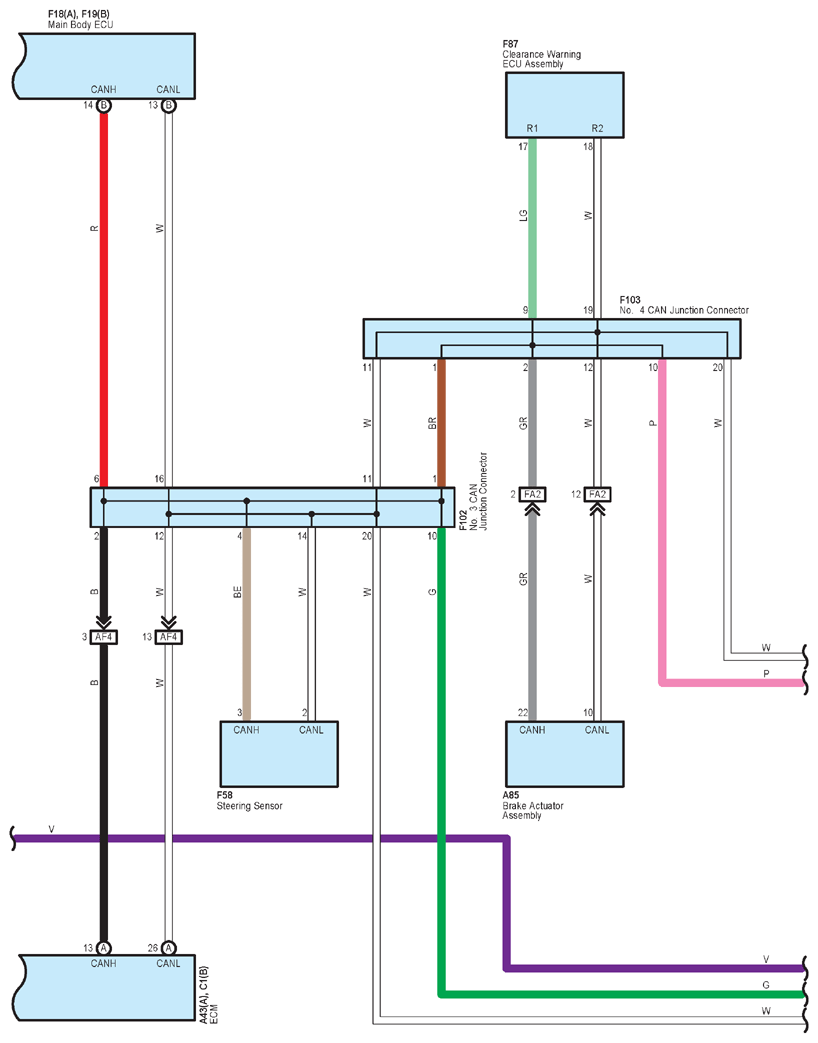

Fig 6: Panoramic View Monitor System (6 Of 7)

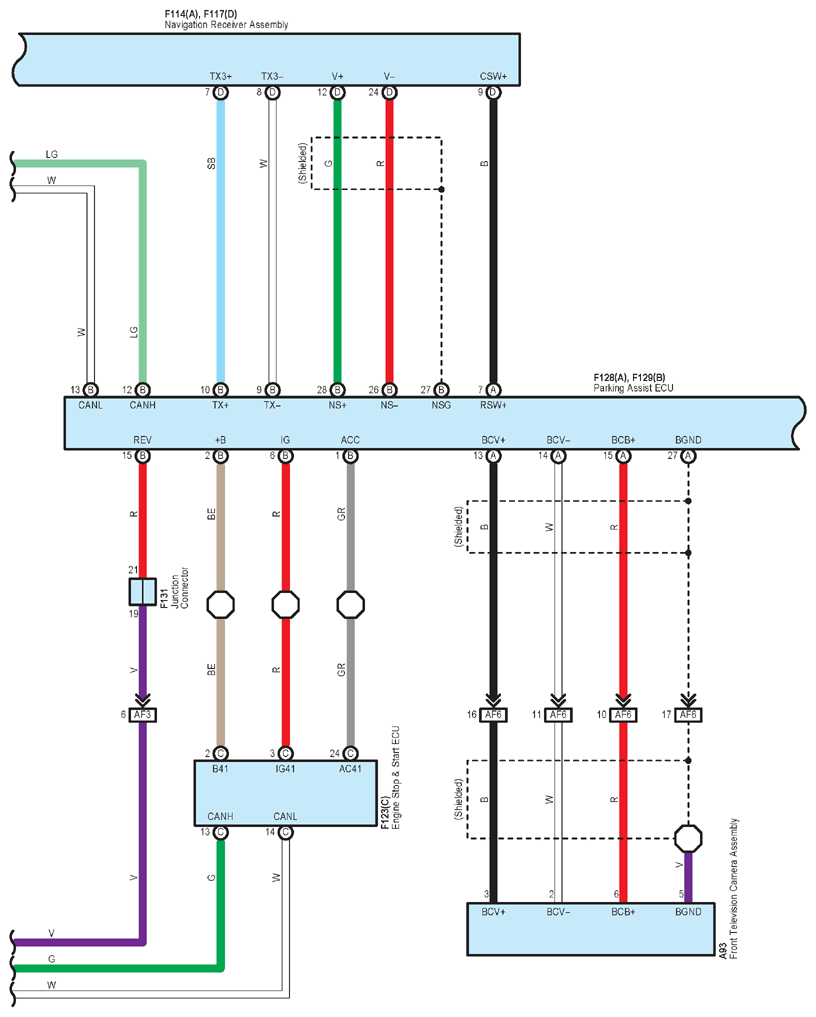

Fig 7: Panoramic View Monitor System (7 Of 7)
