System Diagrams — 2017 Toyota Highlander LE Plus, AWD Service Manual ~ FixVault

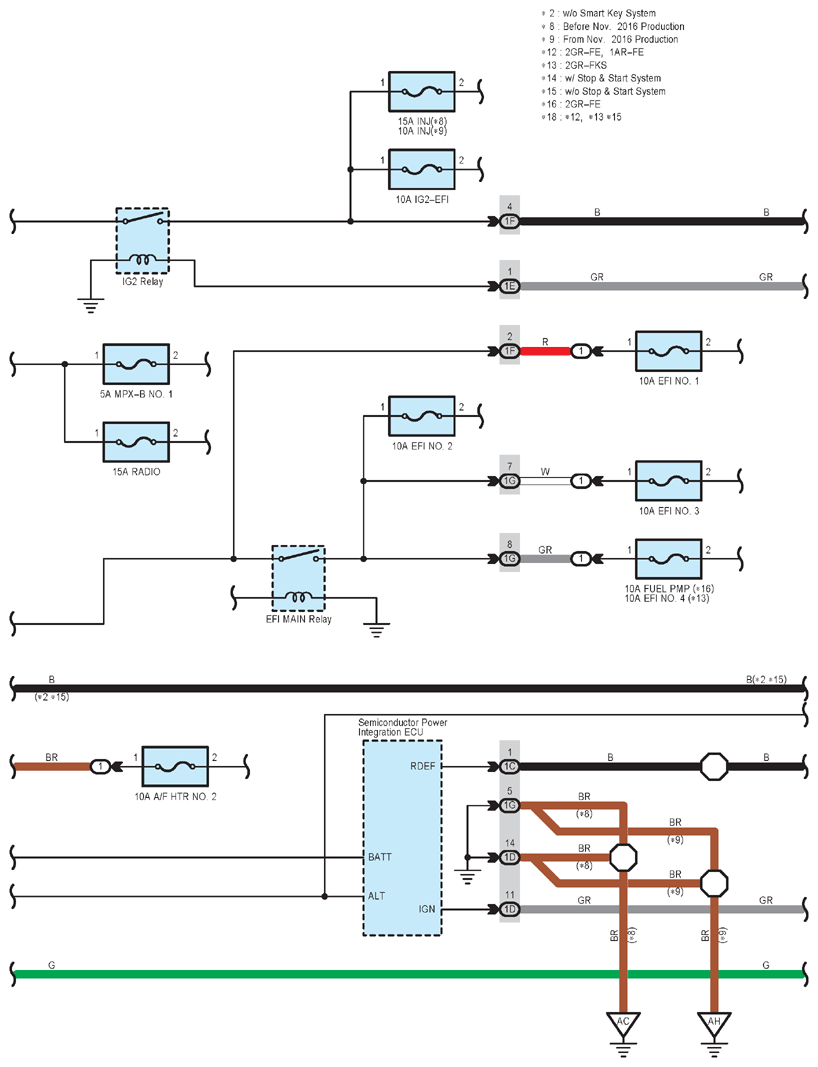

Fig 1: Power Source (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

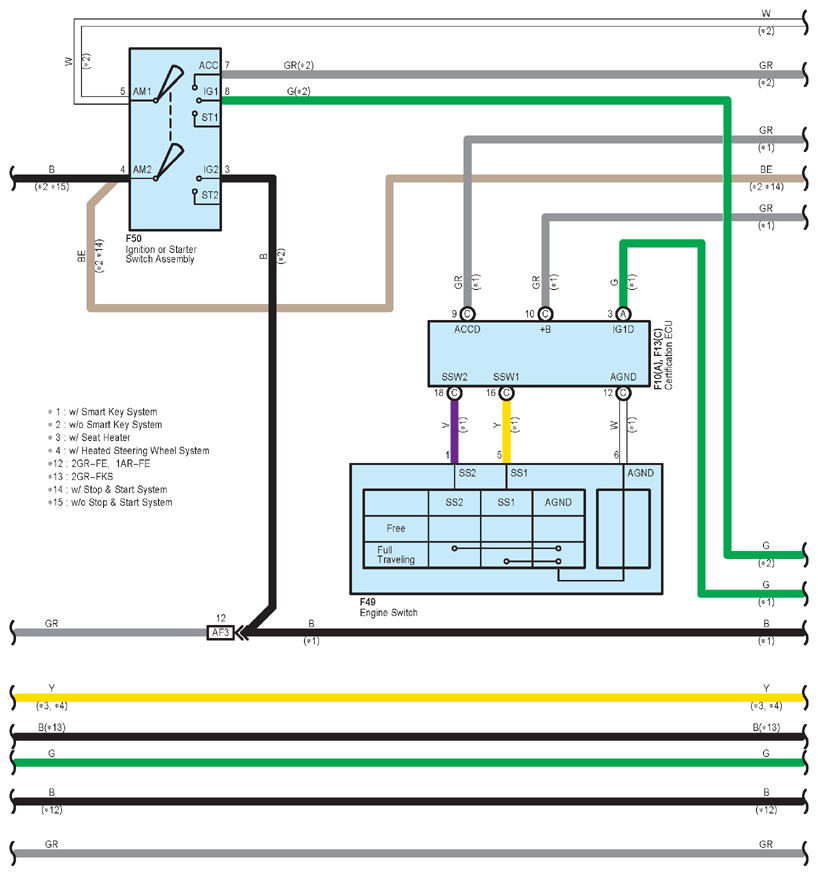

Fig 2: Power Source (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

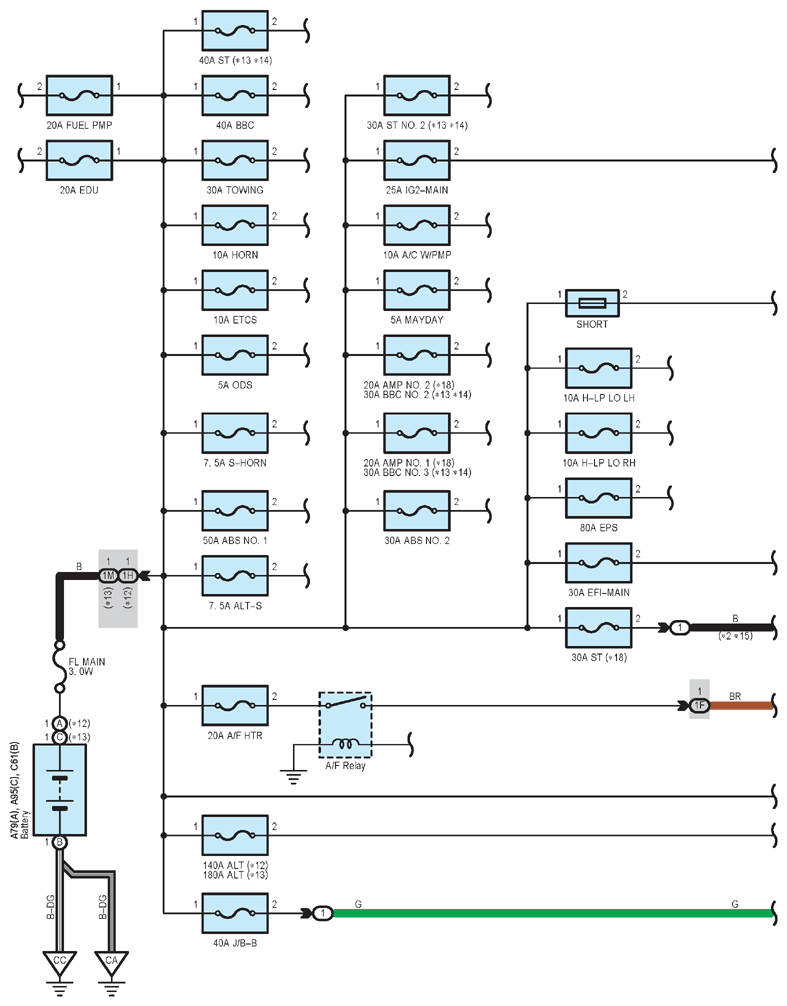

Fig 3: Power Source (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

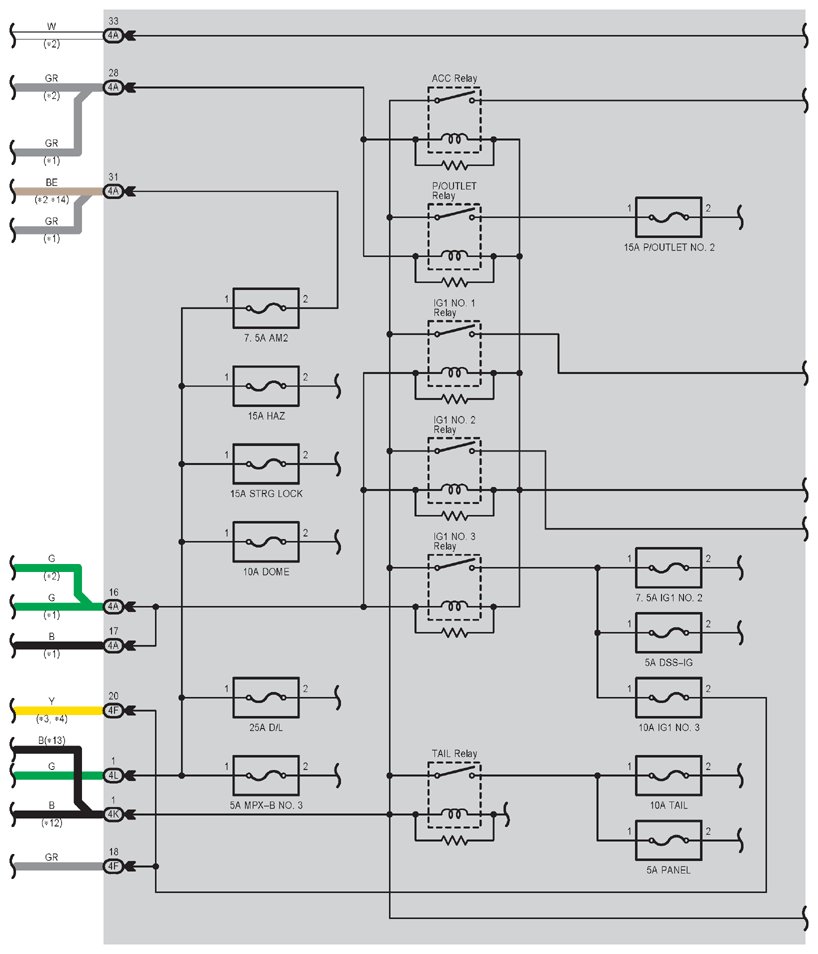

Fig 4: Power Source (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

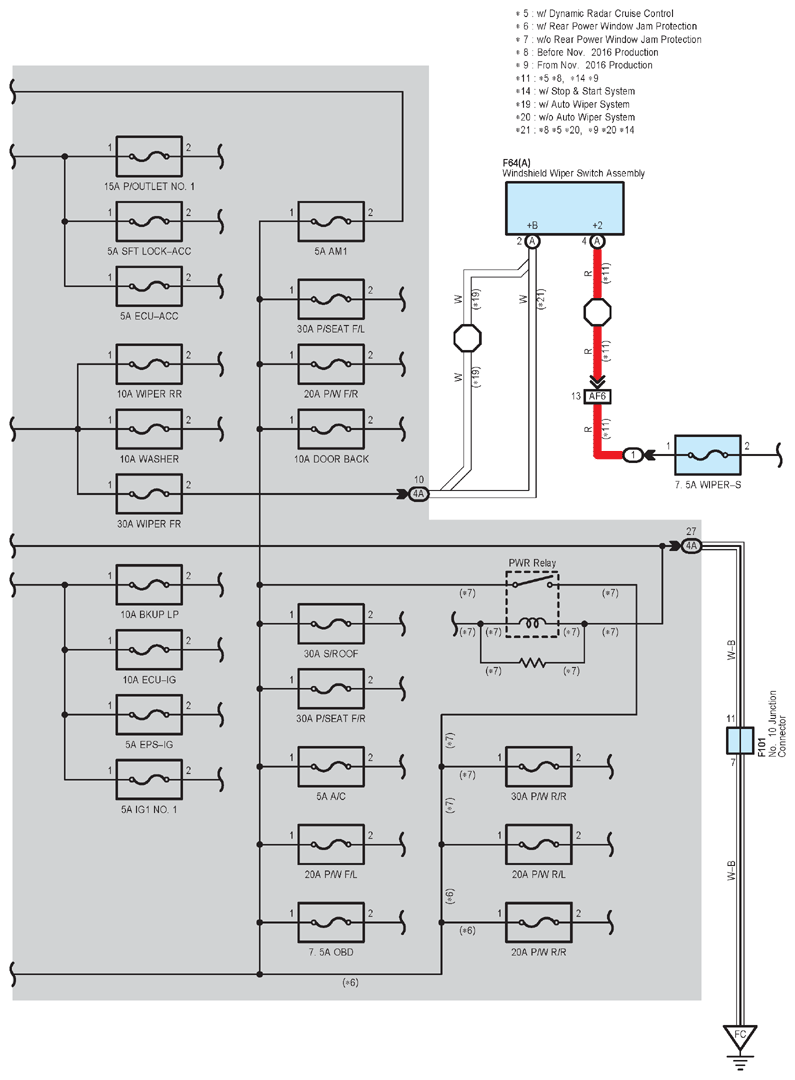

Fig 5: Power Source (5 Of 7)

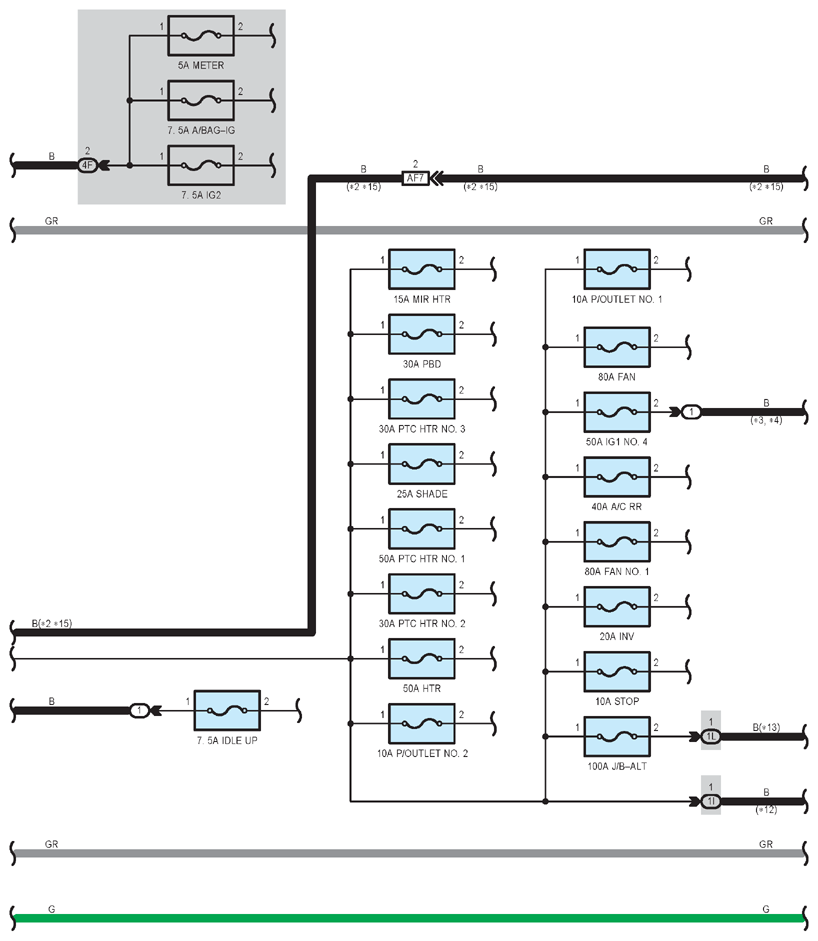

Fig 6: Power Source (6 Of 7)

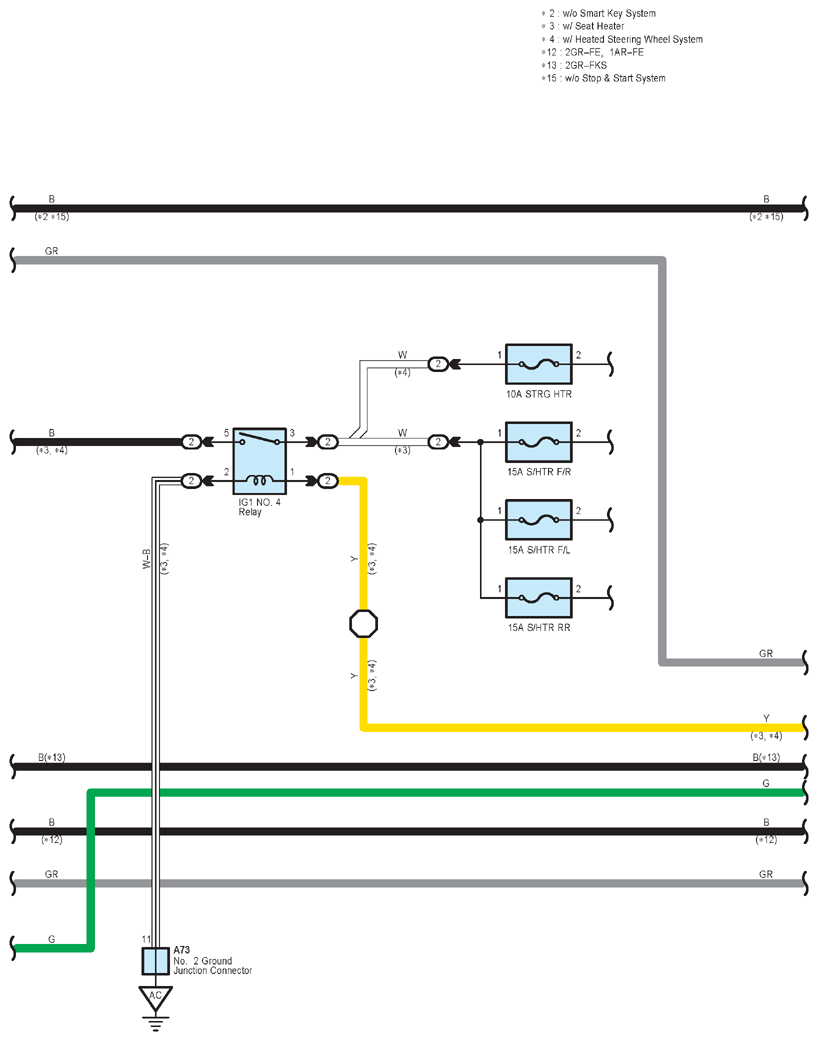

Fig 7: Power Source (7 Of 7)
