Components [02/2014 - 11/2016]: Illustration
WARNING: This page is about a different variant/trim than selected.

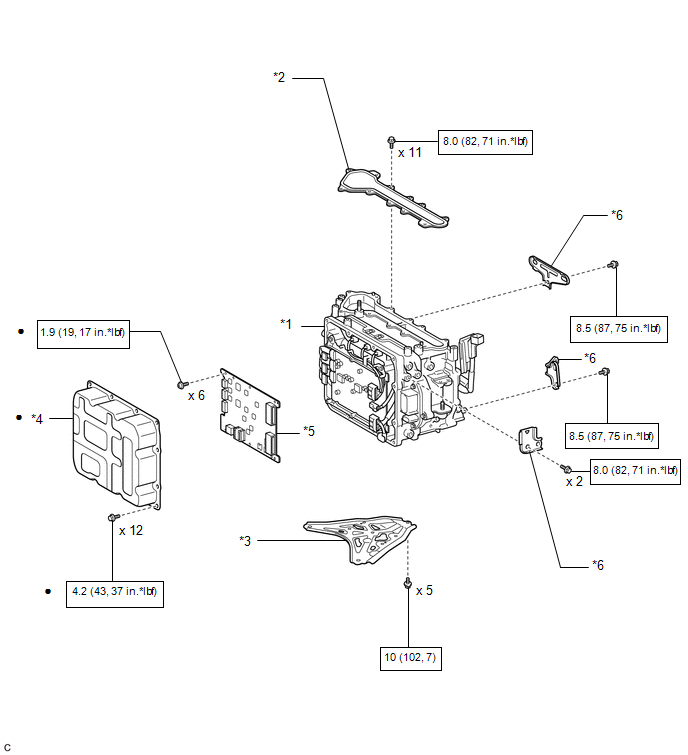

Fig 1: Motor Generator Control Computer Replacement Components With Torque Specifications (02/2014 - 11/2016)
| Callout | Description | Callout | Description |
| *1 | INVERTER WITH CONVERTER ASSEMBLY | *2 | INVERTER TERMINAL COVER |
| *3 | NO. 1 INVERTER BRACKET | *4 | CONVERTER COVER |
| *5 | MOTOR GENERATOR CONTROL COMPUTER | *6 | WIRE HARNESS CLAMP BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
