Removal [02/2014 - 11/2016]: Procedure

Refer to REMOVAL [02/2014 - 11/2016]

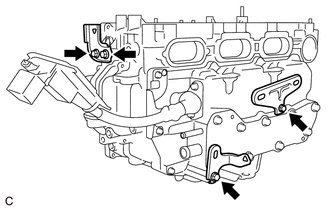

1. Remove the 4 bolts and 3 wire harness clamp brackets from the inverter with converter assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

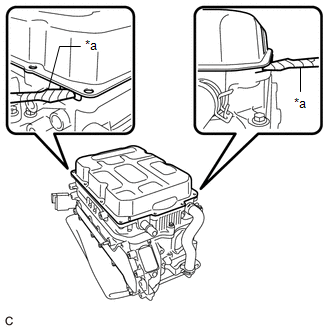

1. Apply protective tape to the areas shown in the illustration without leaving any gaps between the tape and part.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Use non-residue type tape.

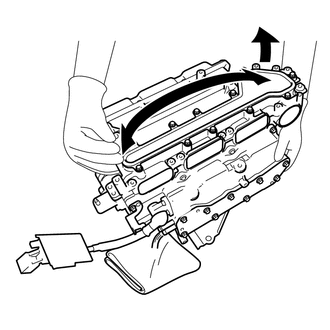

2. Tilt the inverter with converter assembly back and forth to drain the coolant (for inverter).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not hold the inverter with converter assembly by the coolant pipes or inverter signal connector.

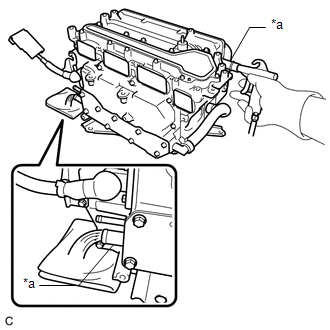

3. Blow compressed air into the inverter with converter assembly until most of the coolant (for inverter) is blown out.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Coolant Pipe

   NOTE:

   Do not damage the coolant pipes.

   HINT:

   • Use a piece of cloth as shown in the illustration to prevent the coolant (for inverter) from spraying.
   • Cover the air inlet port with a piece of cloth to minimize air leakage.

1. Using a piece of cloth, clean the outside of the inverter with converter assembly and around the bolts.
   NOTE:

   To prevent foreign matter from entering the inverter with converter assembly, make sure that the protective tape is not partially removed.

See step  9

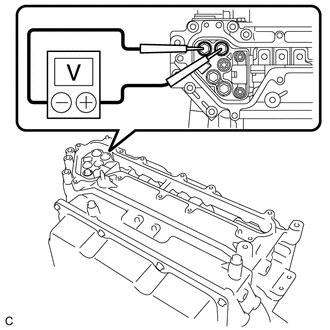

1. Using a voltmeter, measure the voltage between the terminals of the 2 phase connectors.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   0 V

   HINT:

   • Use a measuring range of DC 750 V or more on the voltmeter.
   • If it is confirmed that high-voltage is not being applied to the inverter with converter assembly, removal/installation can be performed without using insulated tools or gloves after this step.

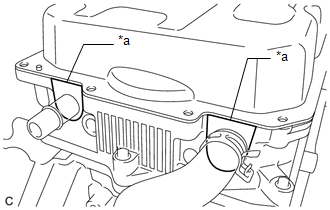

2. Apply protective tape to the area that was exposed when the inverter terminal cover was removed.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Use non-residue type tape.

1. Set the inverter with converter assembly on a clean cloth, etc. and orient it as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Cloth

2. Remove the 5 bolts and No. 1 inverter bracket from the inverter with converter assembly.

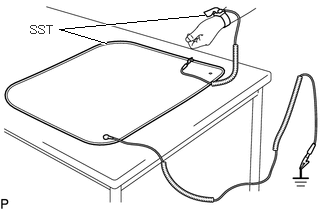

1. Wear SST (wrist band).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09890-47010
2. Connect the ground clip of the SST (anti-static mat) securely to a ground point provided in the workshop or on a workbench (anchor bolt).
   • SST: 09890-47010

   HINT:

   If the ground clip cable is too short, use an extension cable.

3. Connect the ground clip of the antistatic wrist strap securely to the specified point of the antistatic mat.
4. After removing the converter cover, perform work with bare hands to prevent damage from static electricity and entry of foreign matter.

1. Set the inverter with converter assembly on a clean cloth, etc. and orient it as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Cloth

2. Remove the 12 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Using a screwdriver with its tip wrapped with protective tape, remove the converter cover from the inverter with converter assembly.
   NOTE:

   • Do not damage the sealing surfaces of the inverter with converter assembly.
   • To prevent internal components of the inverter with converter assembly from being damaged, do not insert the screwdriver excessively.
   • As the grommets are attached to the converter cover with seal packing, slowly separate the seal packing when removing the converter cover.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *a

     Grommet

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

1. Set the inverter with converter assembly on a clean cloth, etc. and orient it as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

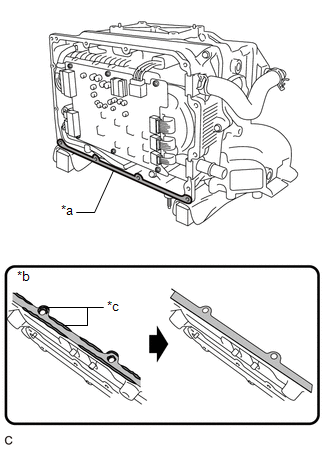

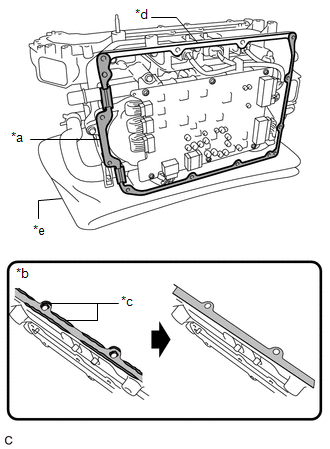

   *a	Seal Packing to be Removed
   *b	Minimum Requirement for Removal of Seal Packing
   *c	Seeped Out or Uneven Seal Packing
   *d	Seal Packing not to be Removed
   *e	Cloth

2. Using a finger or a scraper with its tip wrapped with protective tape, remove any seal packing which is uneven, has peeled off or seeped out from the contact surface (*a) shown in the illustration.
   NOTE:

   To prevent the seal packing from entering the inverter with converter assembly, make sure to perform the following steps to remove any remaining seal packing from the part of the contact surface (*d) shown in the illustration.

3. Set the inverter with converter assembly on wooden blocks covered with clean cloths, etc. and orient it as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

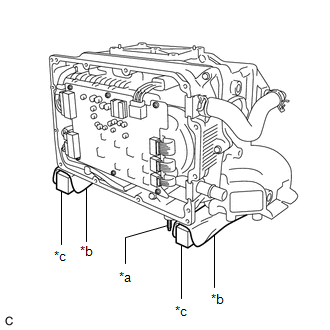

   *a	Stud Bolt
   *b	Cloth
   *c	Wooden Block

   NOTE:

   To prevent the stud bolt from being damaged, make sure to leave clearance between the stud bolt and workbench.

4. Using a scraper with its tip wrapped with protective tape or a finger, remove any remaining seal packing from around the contact surface shown in the illustration and inside the bolt holes.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

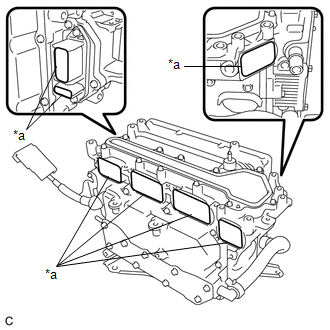

   *a	Seal Packing to be Removed
   *b	Minimum Requirement for Removal of Seal Packing
   *c	Seeped Out or Uneven Seal Packing

1. Set the inverter with converter assembly on a clean cloth, etc. and orient it as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Cloth

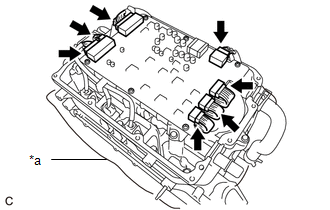

2. Disconnect the 7 motor generator control computer connectors.

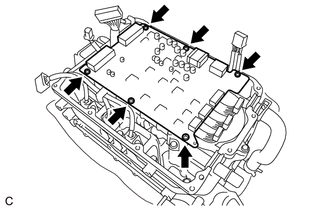

3. Remove the 6 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Hold the corners of the motor generator control computer and remove it from the inverter with converter assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Remove SST (wrist band).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
