Headlight Beam Level Control
›
System Diagrams
System Diagrams

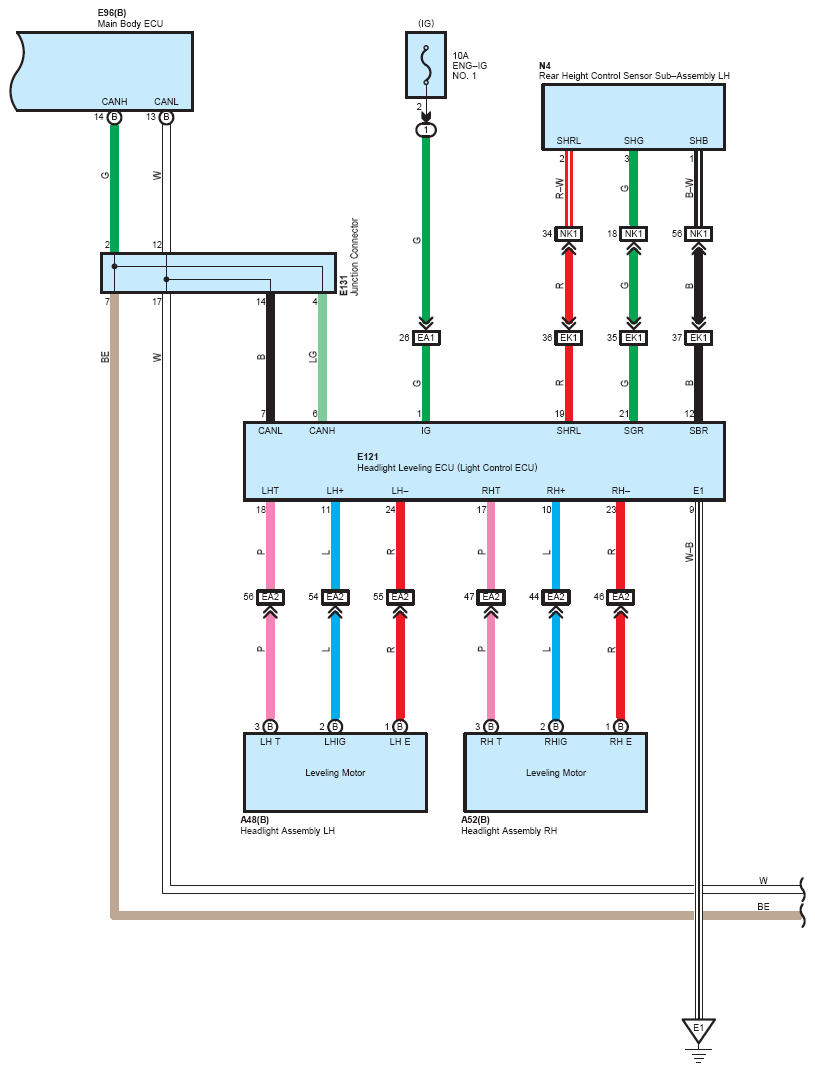

Fig 1: Headlight Beam Level Control (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

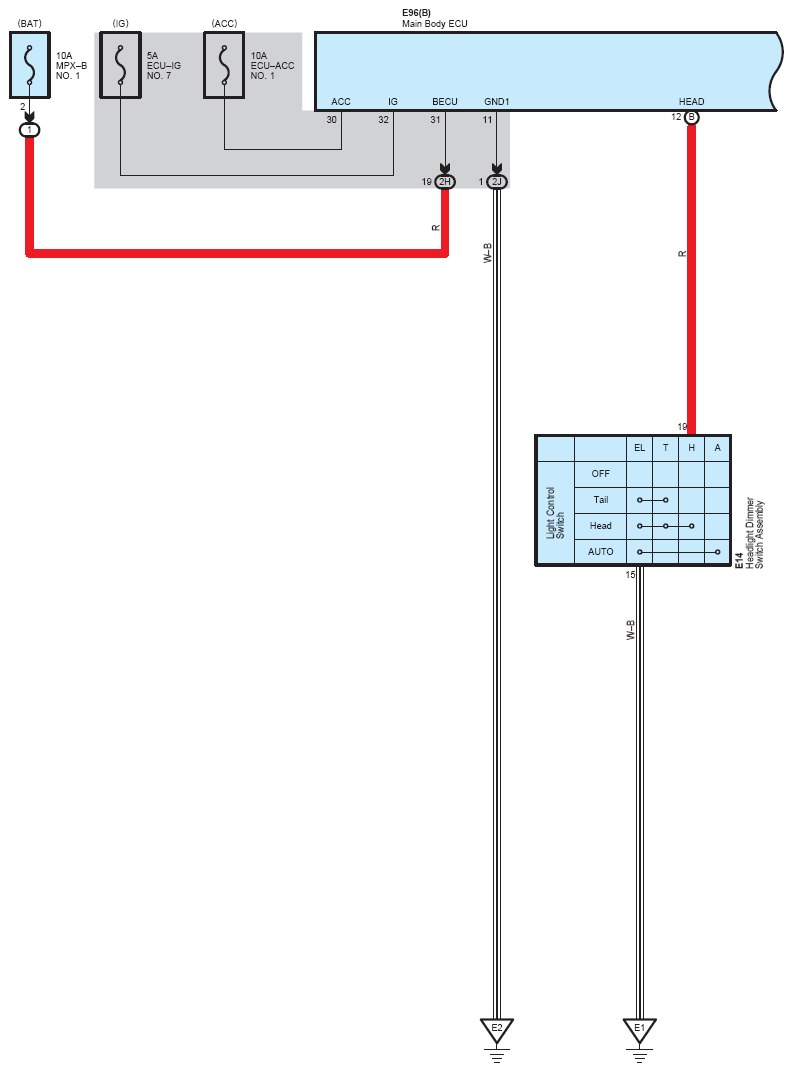

Fig 2: Headlight Beam Level Control (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

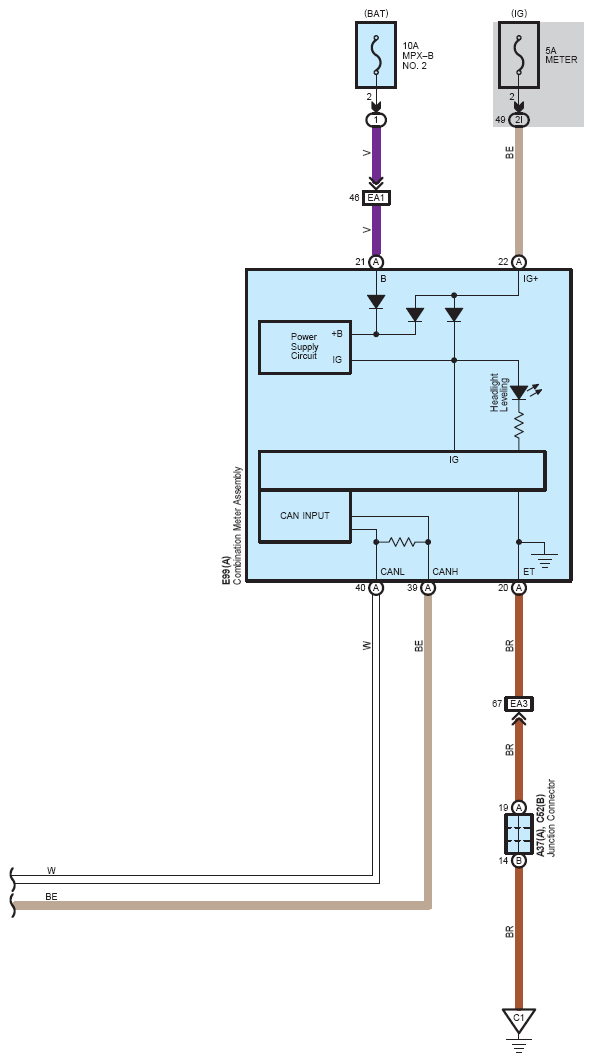

Fig 3: Headlight Beam Level Control (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
