Mirror Heater, Rear Window Defogger: Connectors

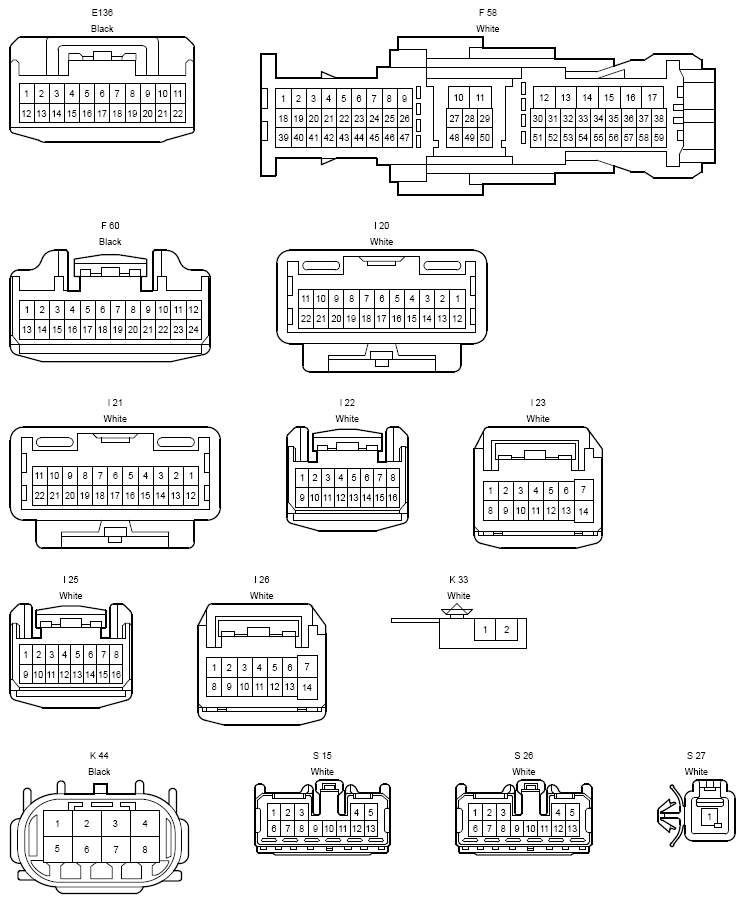

Fig 1: Connectors (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

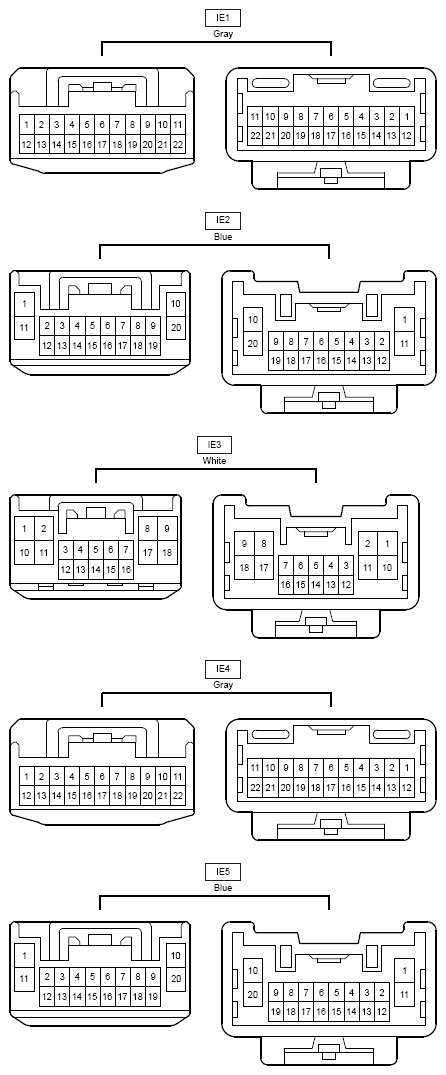

Fig 2: Connectors (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

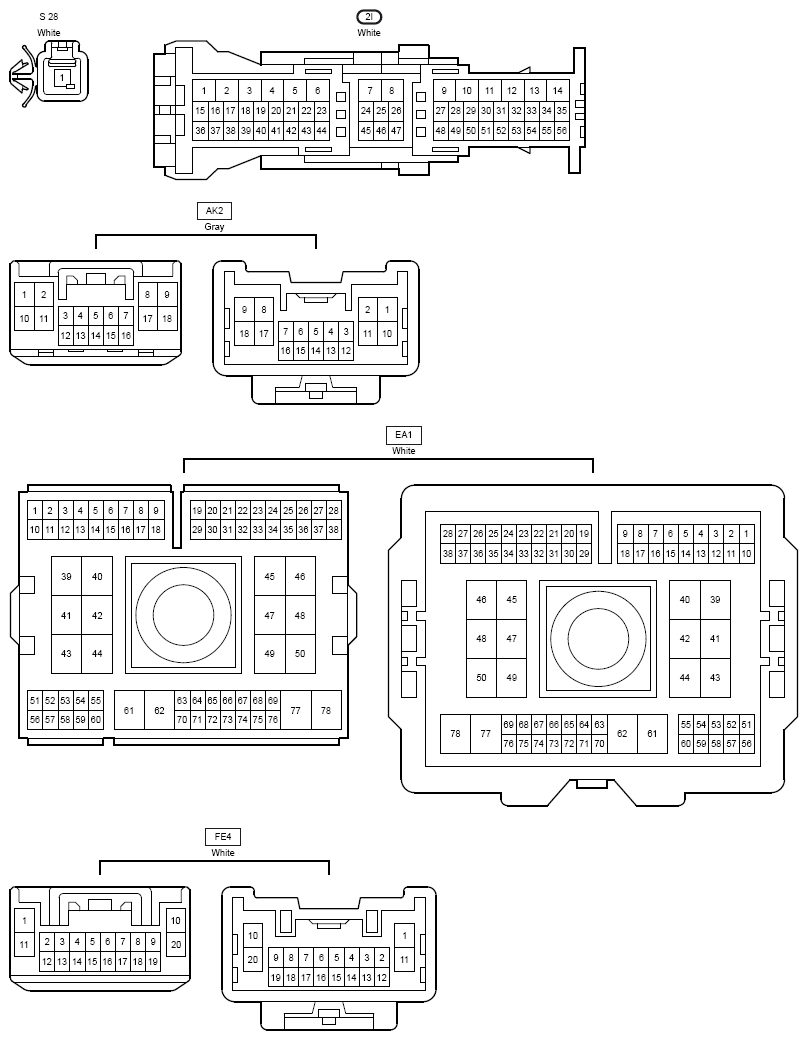

Fig 3: Connectors (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

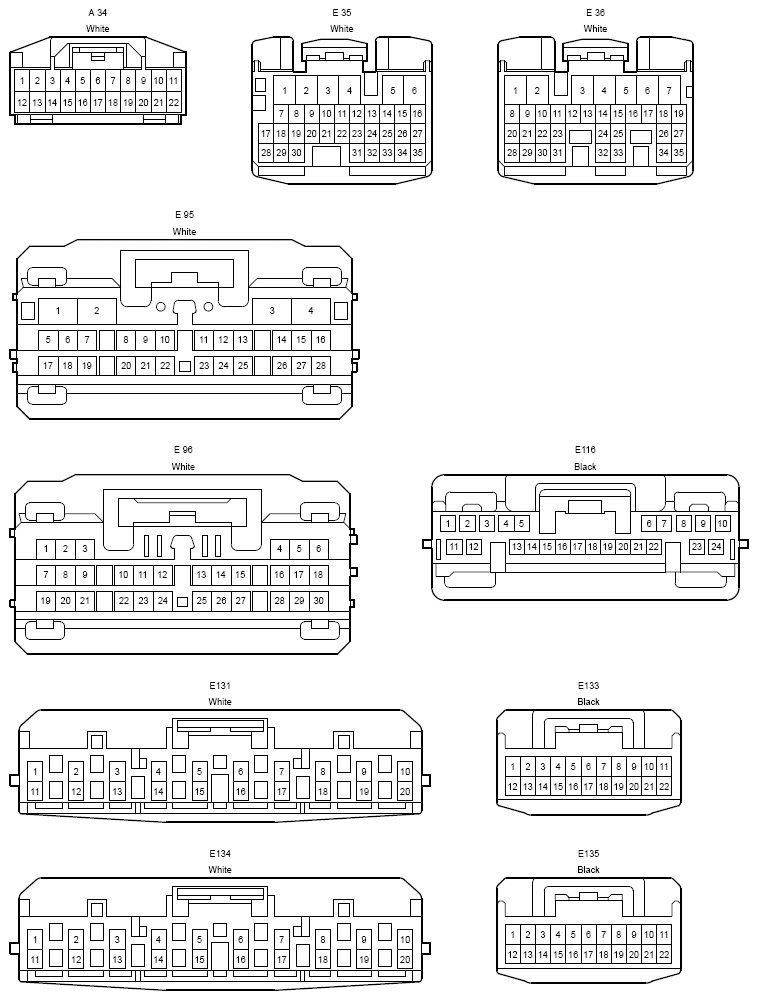

Fig 4: Connectors (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Connectors (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
