Multiplex Communication System (AVC-LAN)
›
System Diagrams
System Diagrams

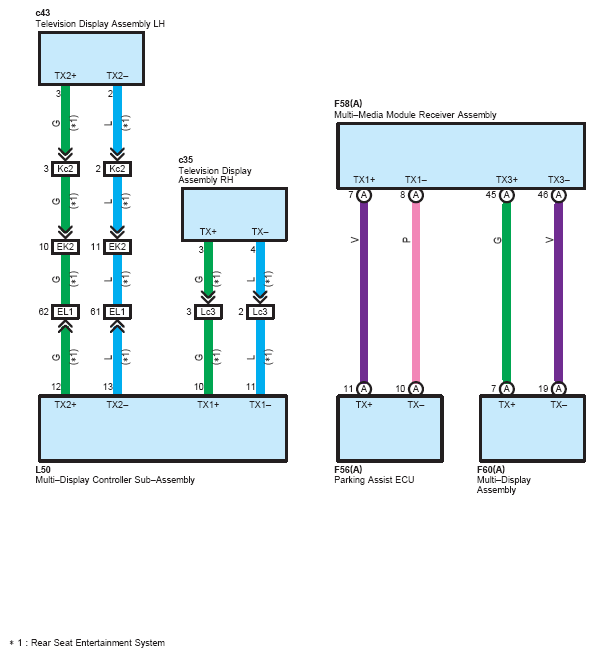

Fig 1: Multiplex Communication System (AVC-LAN) (6 Of 1)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
