Power Source: Connectors

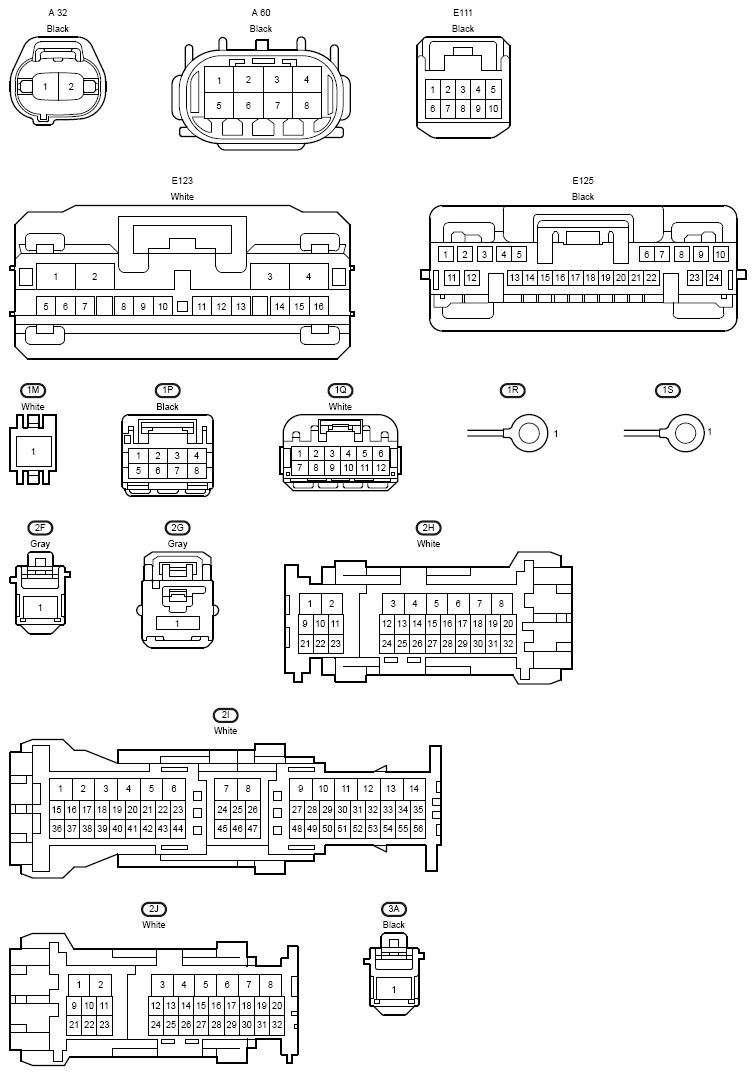

Fig 1: Connectors (1 Of 3)
G12206651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

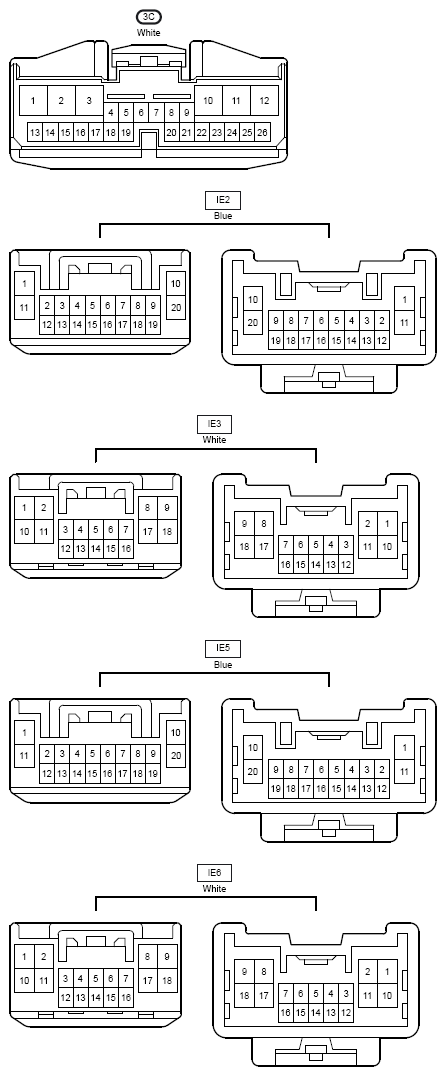

Fig 2: Connectors (2 Of 3)
G12206652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Connectors (3 Of 3)
G12206653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
