Components [06/2015 - ]

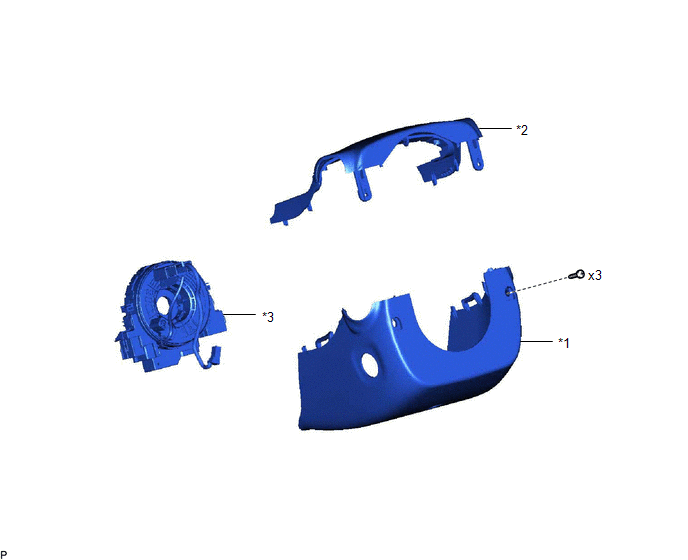

Fig 1: Steering Angle Sensor Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	LOWER STEERING COLUMN COVER	*2	UPPER STEERING COLUMN COVER
*3	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY	-	-

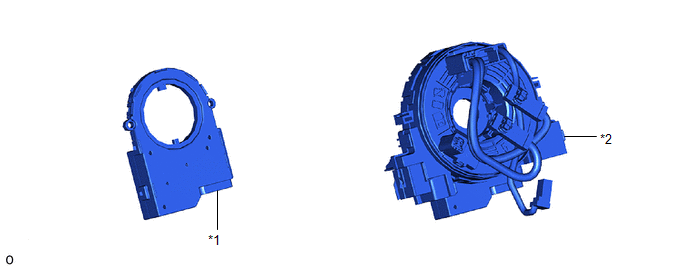

Fig 2: Steering Angle Sensor Replacement Components (2 Of 2)

STEERING SENSOR

SPIRAL CABLE SUB-ASSEMBLY
