Dynamic Radar Cruise Control: Connectors

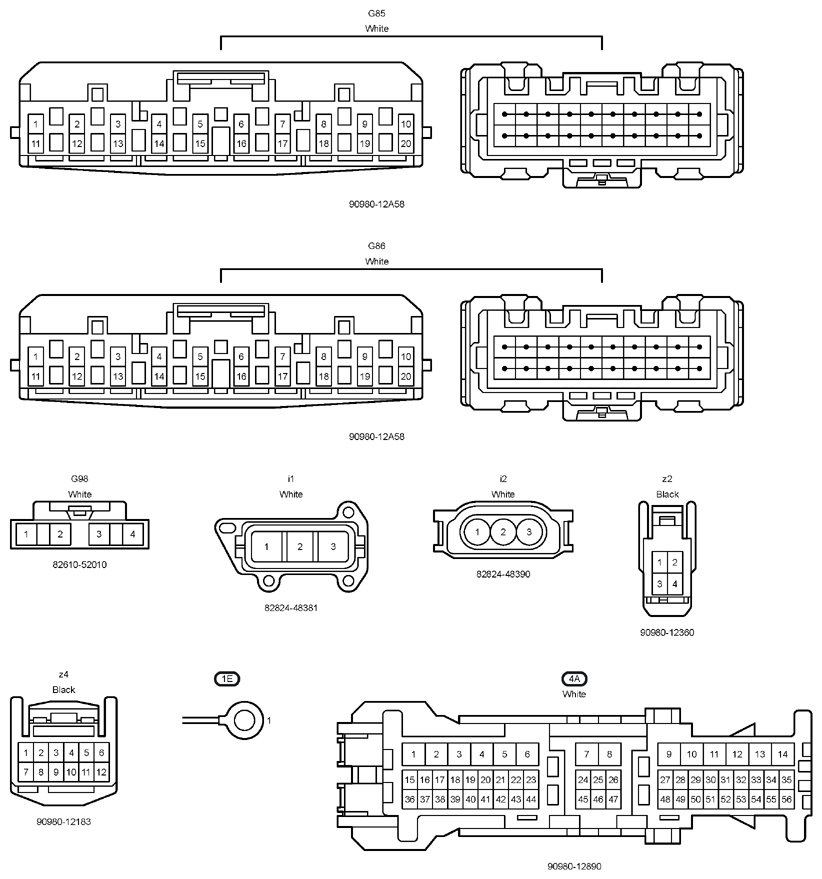

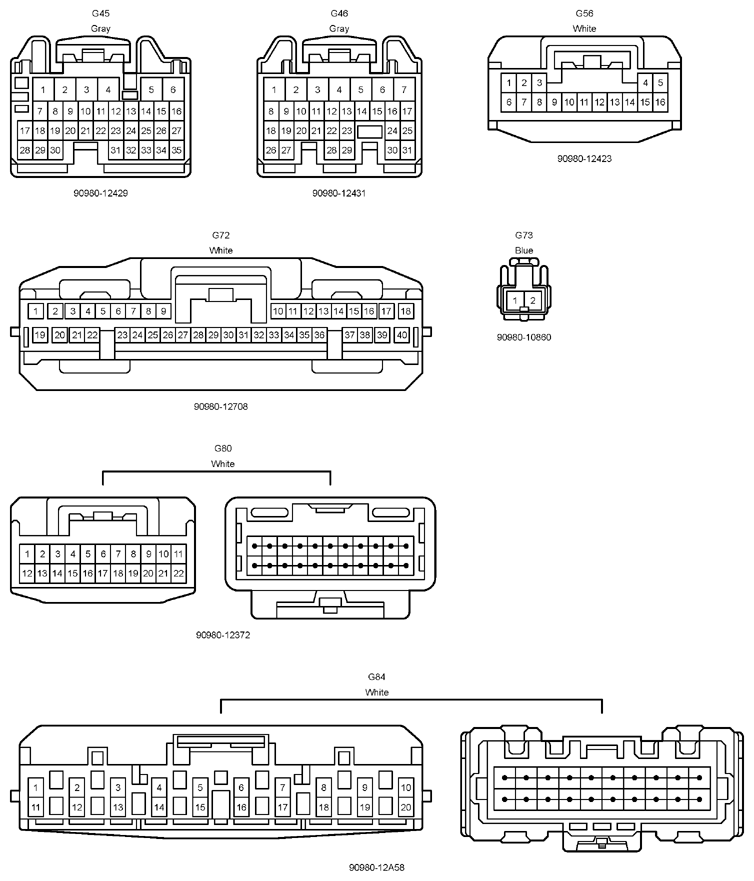

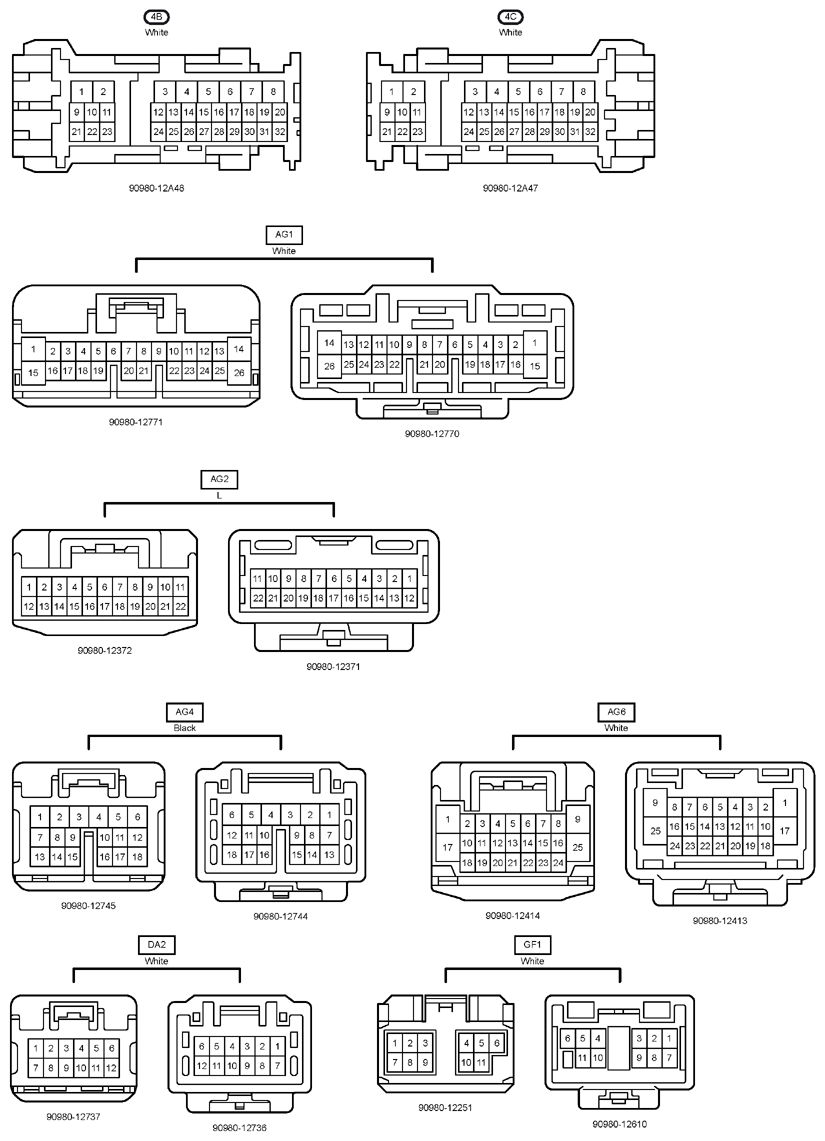

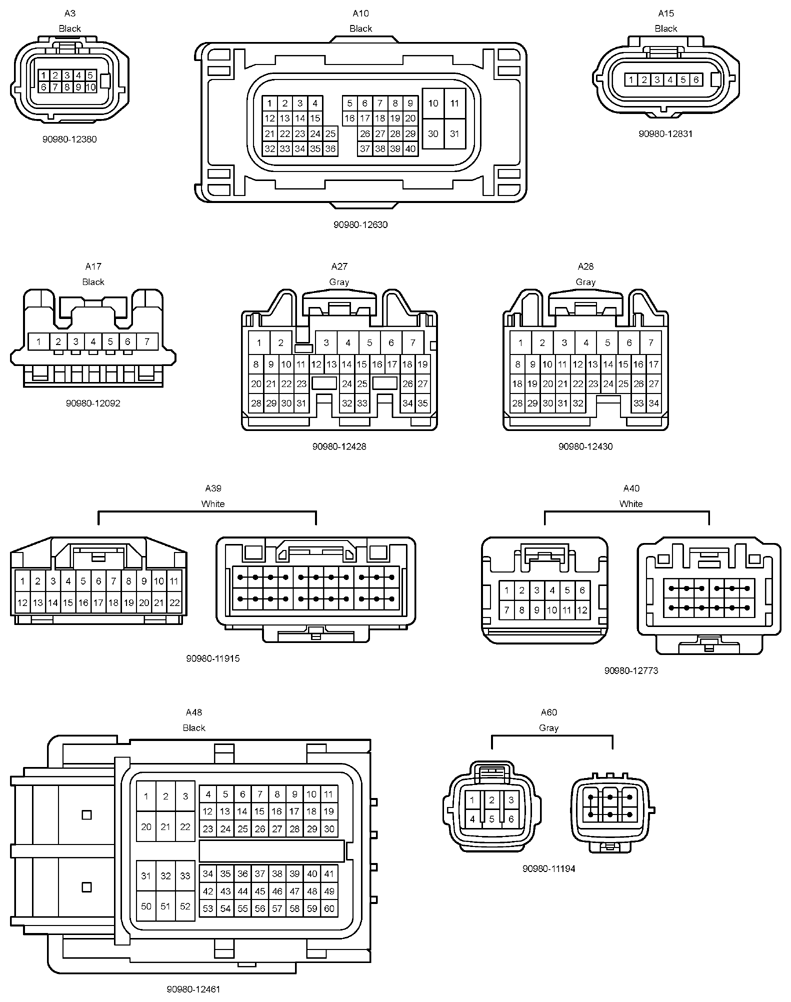

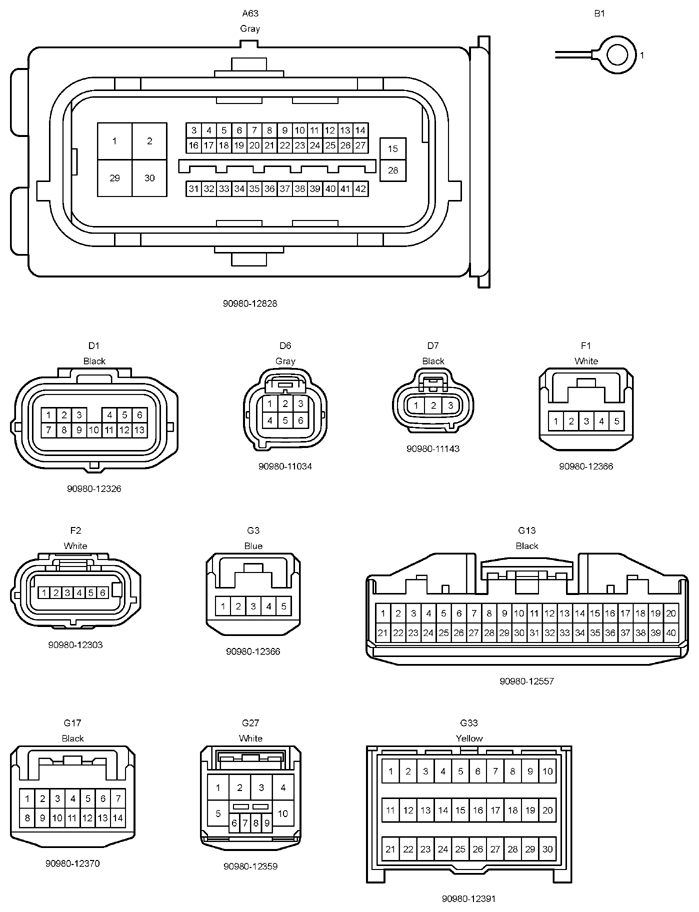

Fig 1: Connectors (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Connectors (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Connectors (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Connectors (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Connectors (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
