Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
EPS
›
System Diagrams
System Diagrams

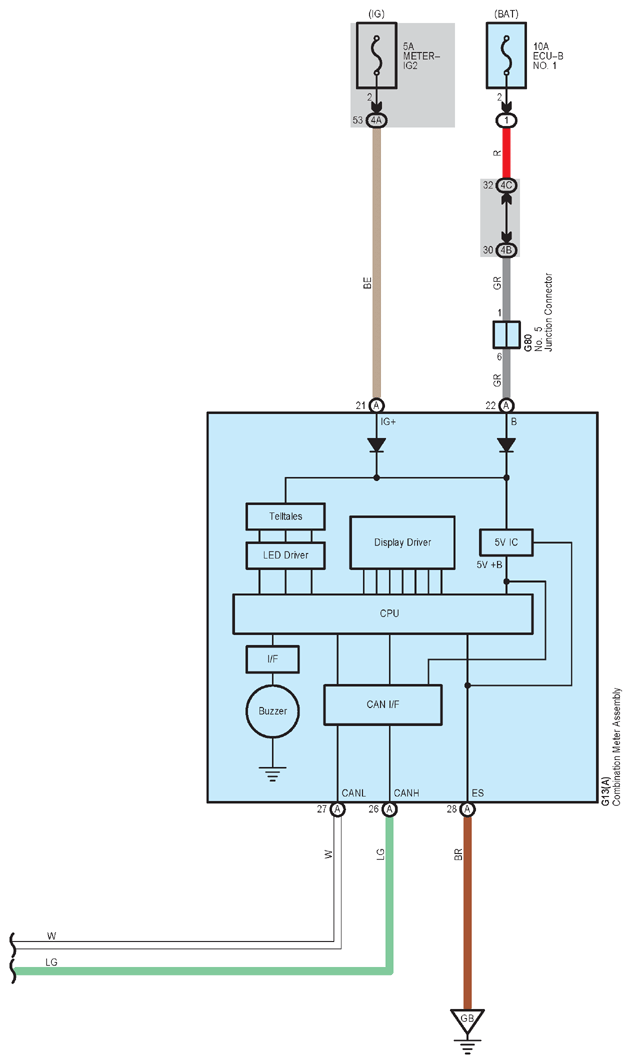

Fig 1: EPS (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

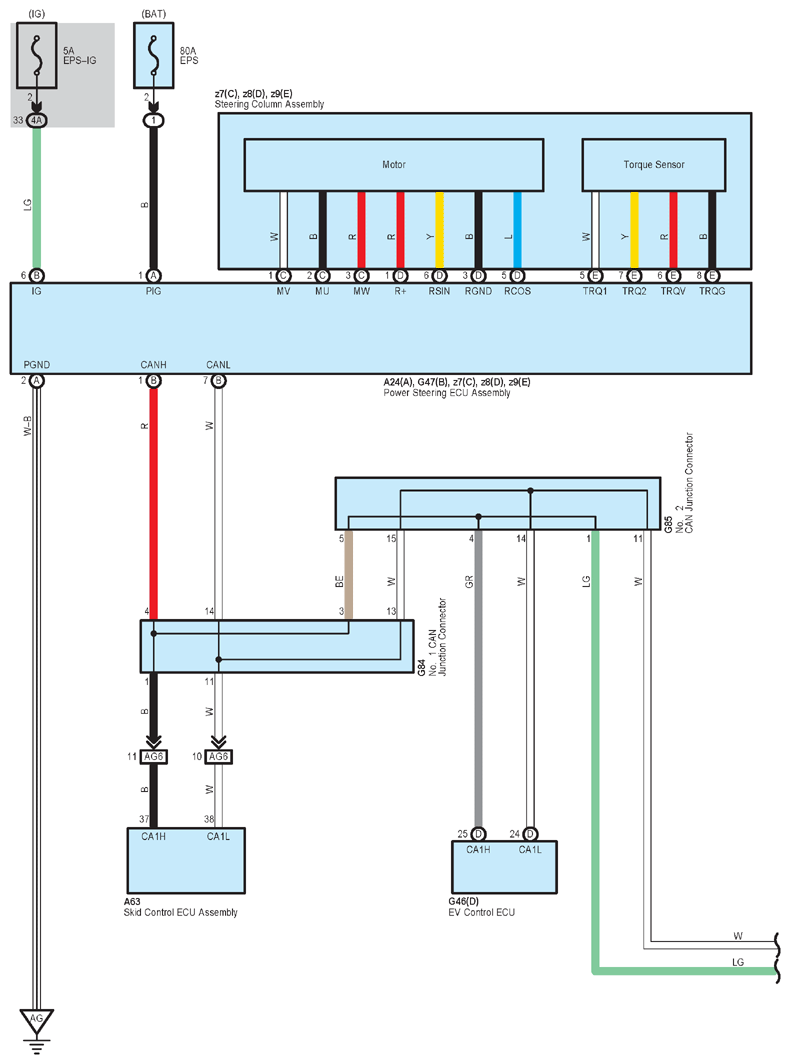

Fig 2: EPS (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
