Intuitive Parking Assist System
›
System Diagrams
System Diagrams

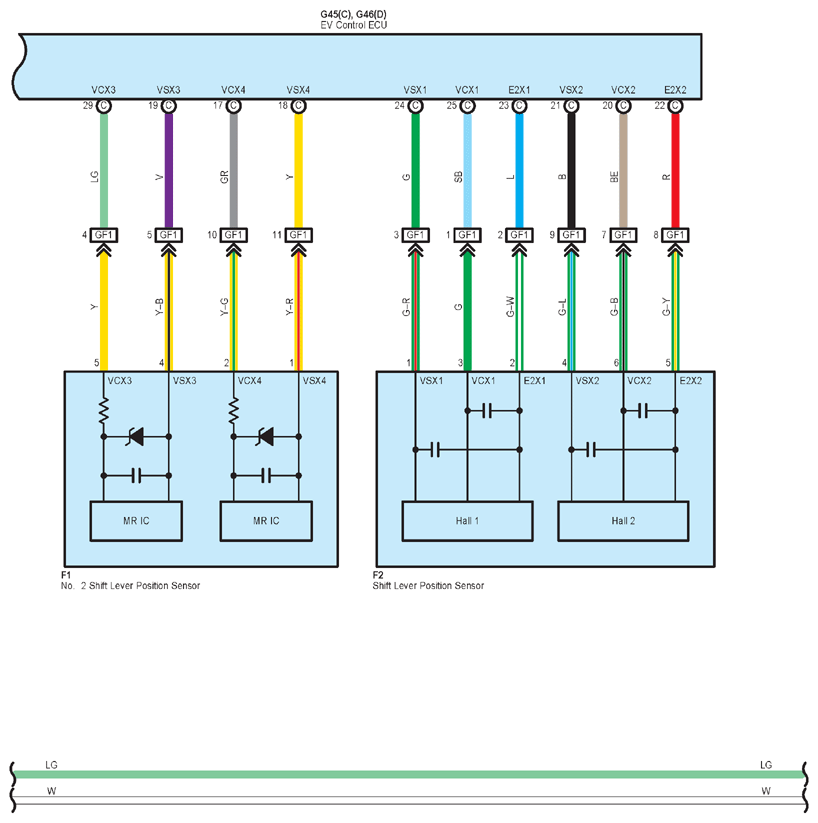

Fig 1: Intuitive Parking Assist System (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

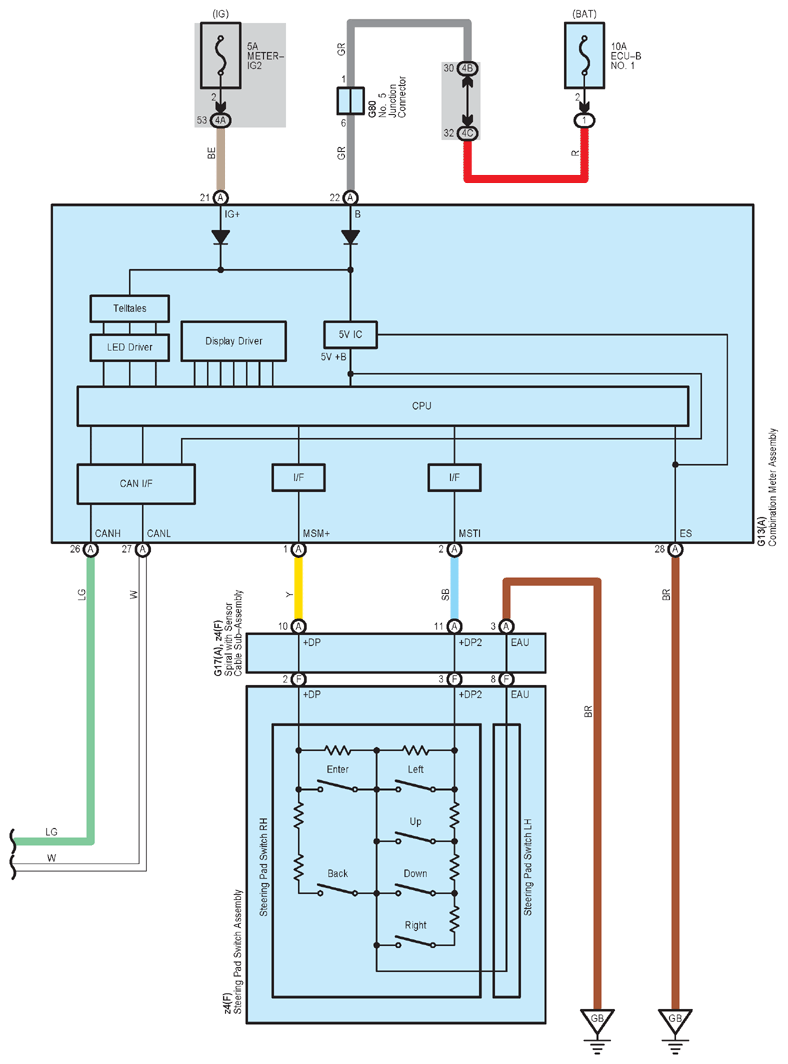

Fig 2: Intuitive Parking Assist System (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

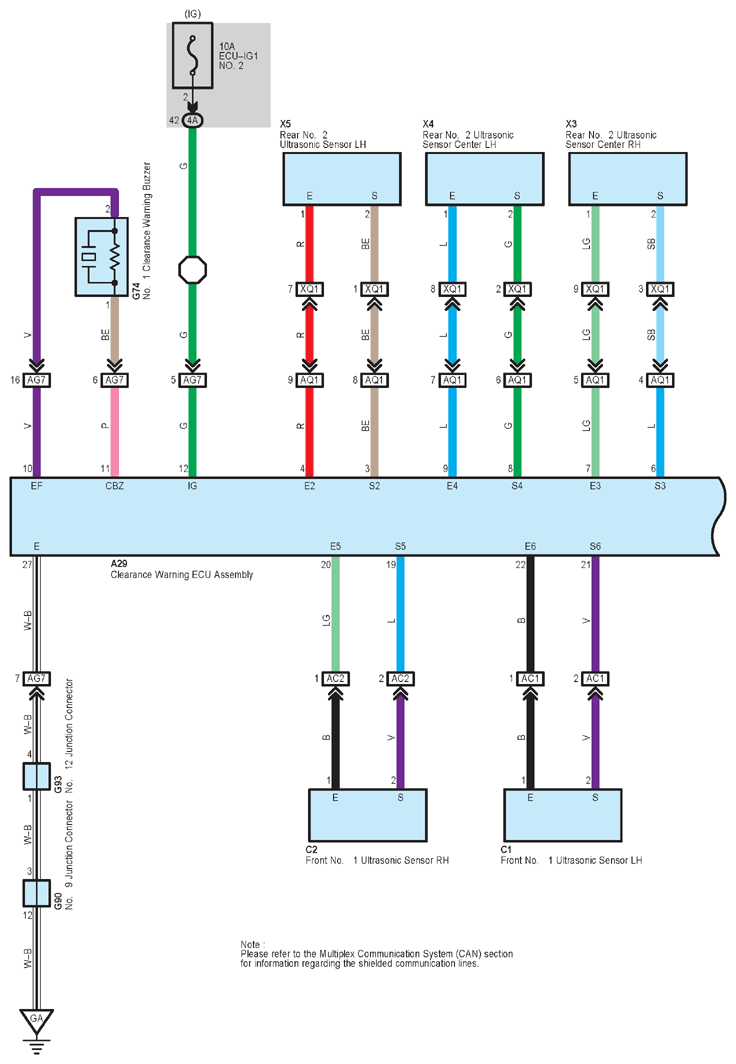

Fig 3: Intuitive Parking Assist System (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

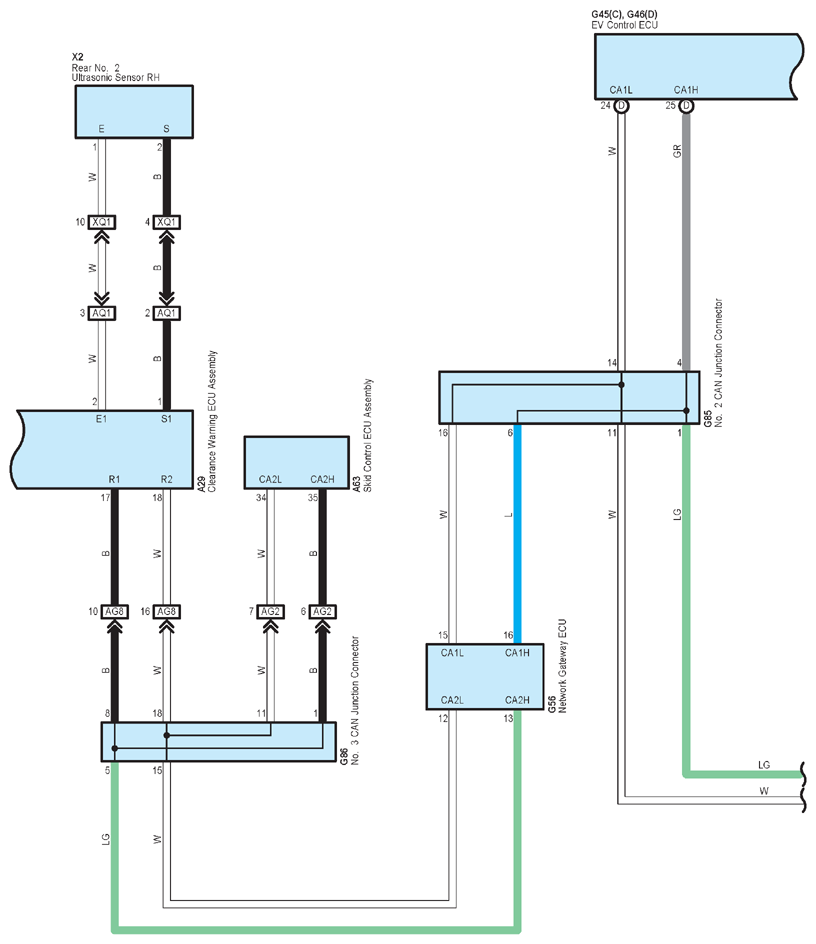

Fig 4: Intuitive Parking Assist System (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
