Removal [11/2015 - ]: Procedure

  1. REMOVE NO. 1 RELAY BLOCK COVER
  2. REMOVE NO. 1 INTEGRATION RELAY

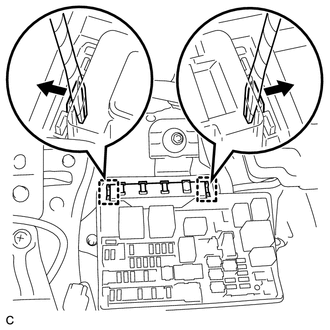

    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the No. 1 integration relay.
      GTY338311Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.

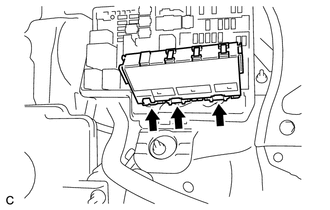

    2. Disconnect the 3 connectors and remove the No. 1 integration relay.
      GTY338310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
