System Diagrams

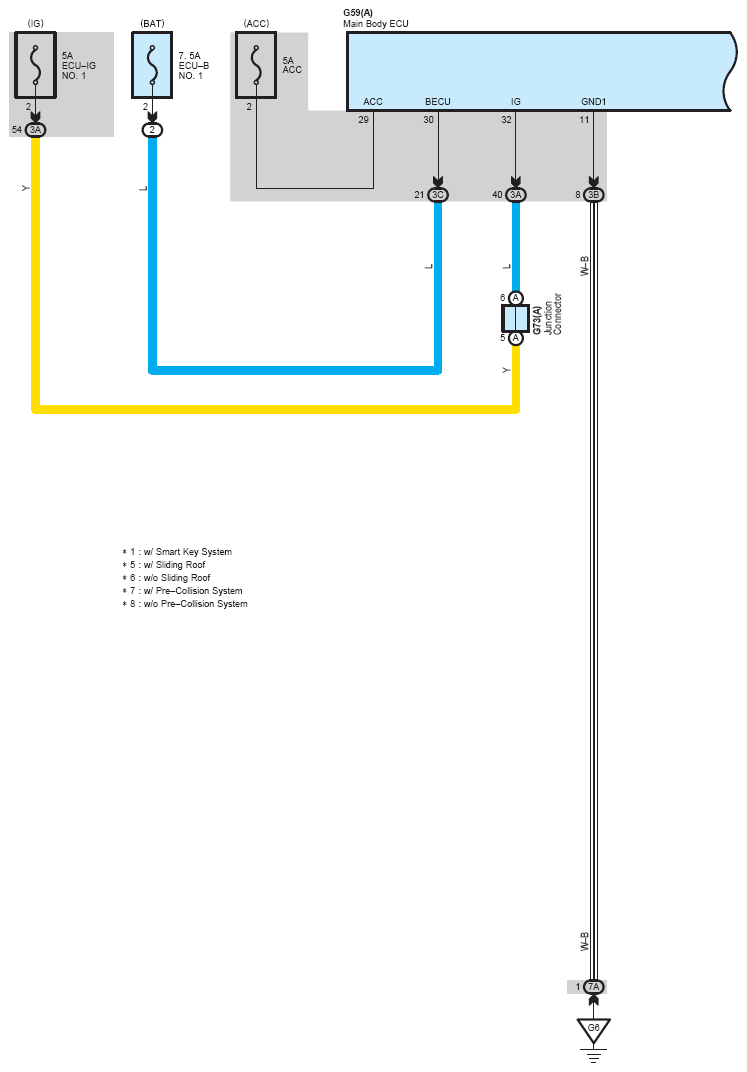

Fig 1: Interior Light (1 Of 4)
G12211324Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

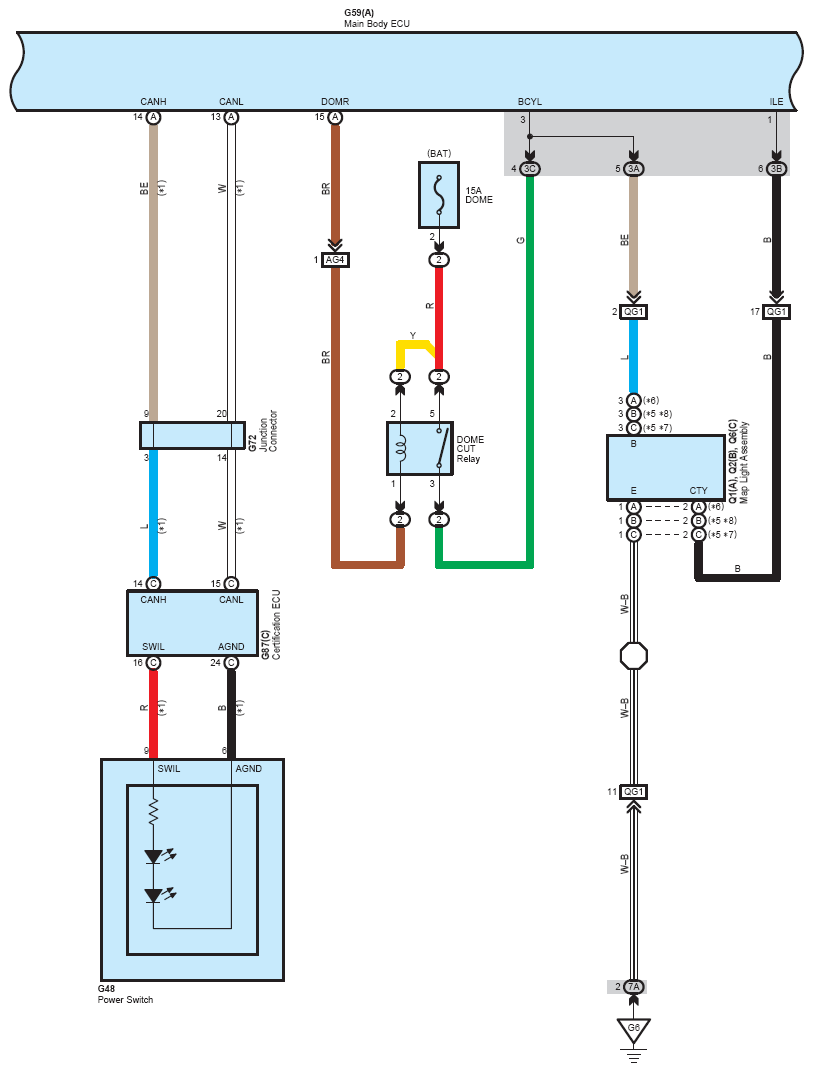

Fig 2: Interior Light (2 Of 4)
G12211325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

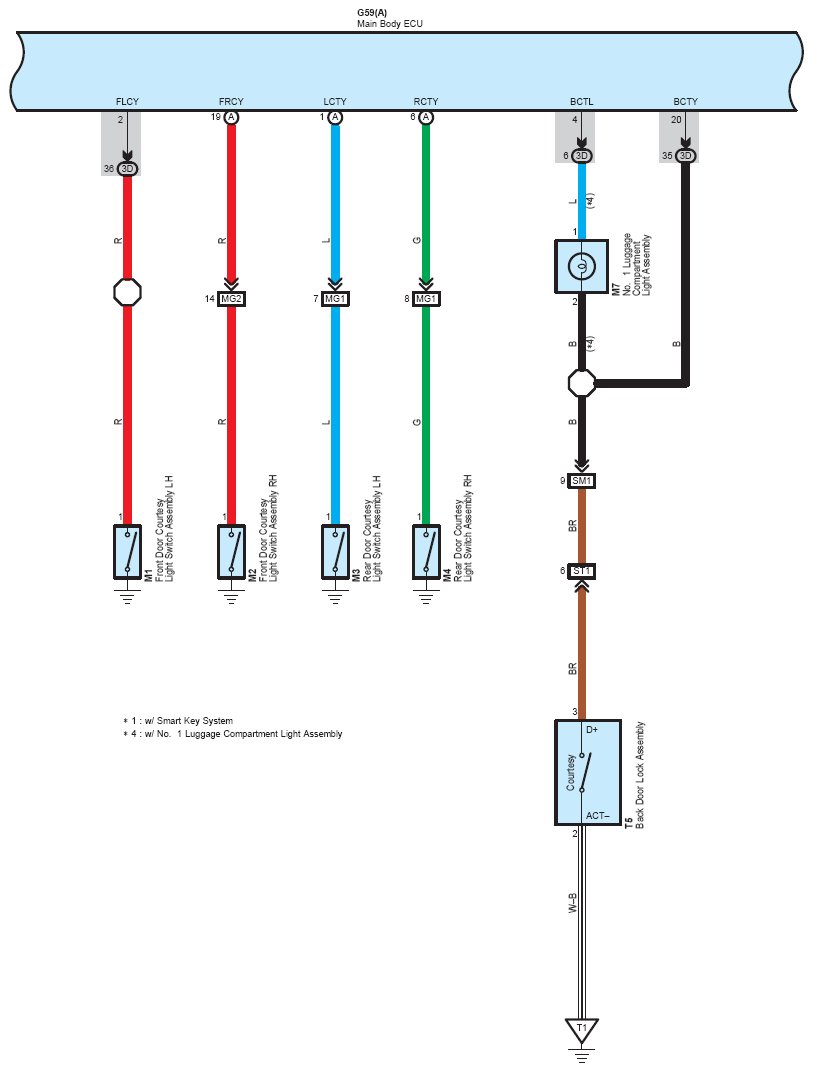

Fig 3: Interior Light (3 Of 4)
G12211326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

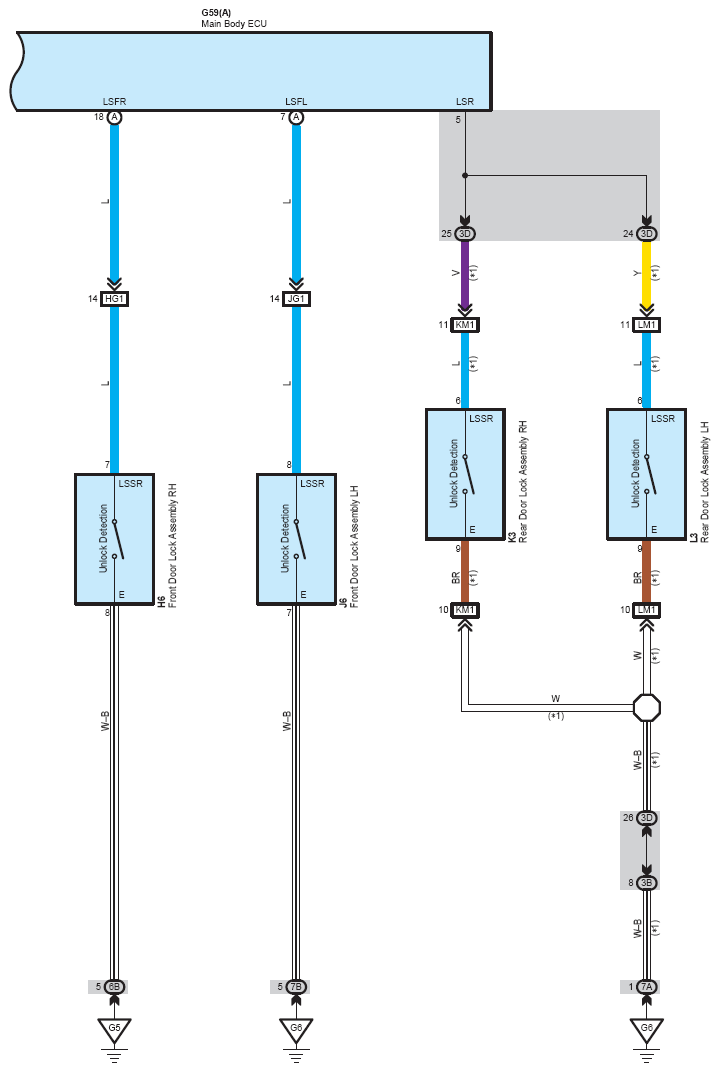

Fig 4: Interior Light (4 Of 4)
G12211327Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
