System Diagrams

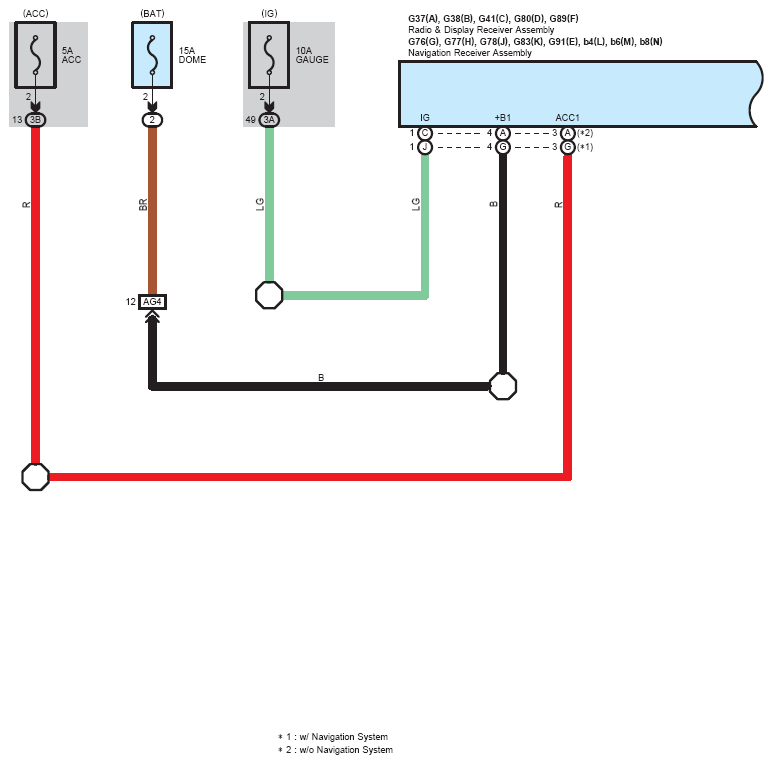

Fig 1: Audio System, Navigation System, Parking Assist (Rear View Monitor) (1 Of 10)
G12211166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

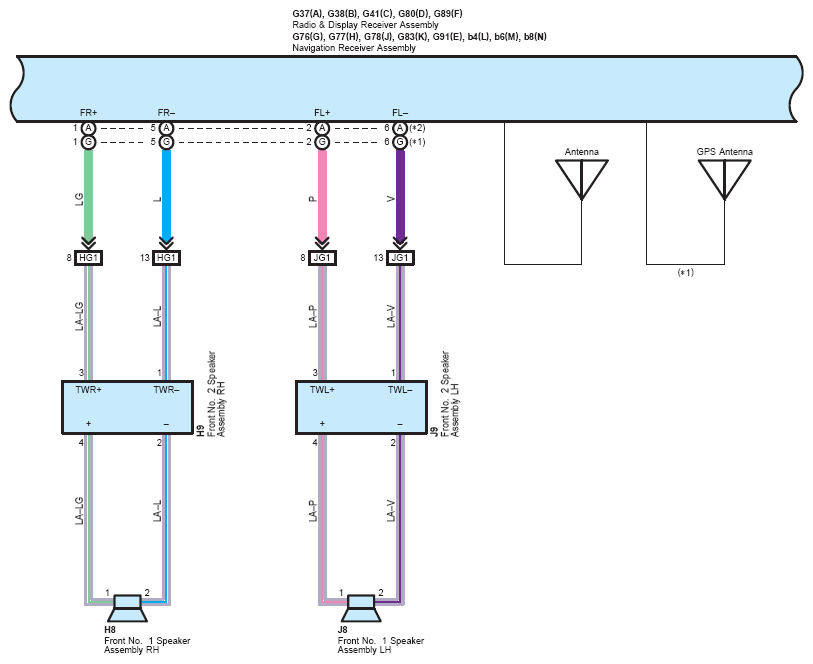

Fig 2: Audio System, Navigation System, Parking Assist (Rear View Monitor) (2 Of 10)
G12211167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

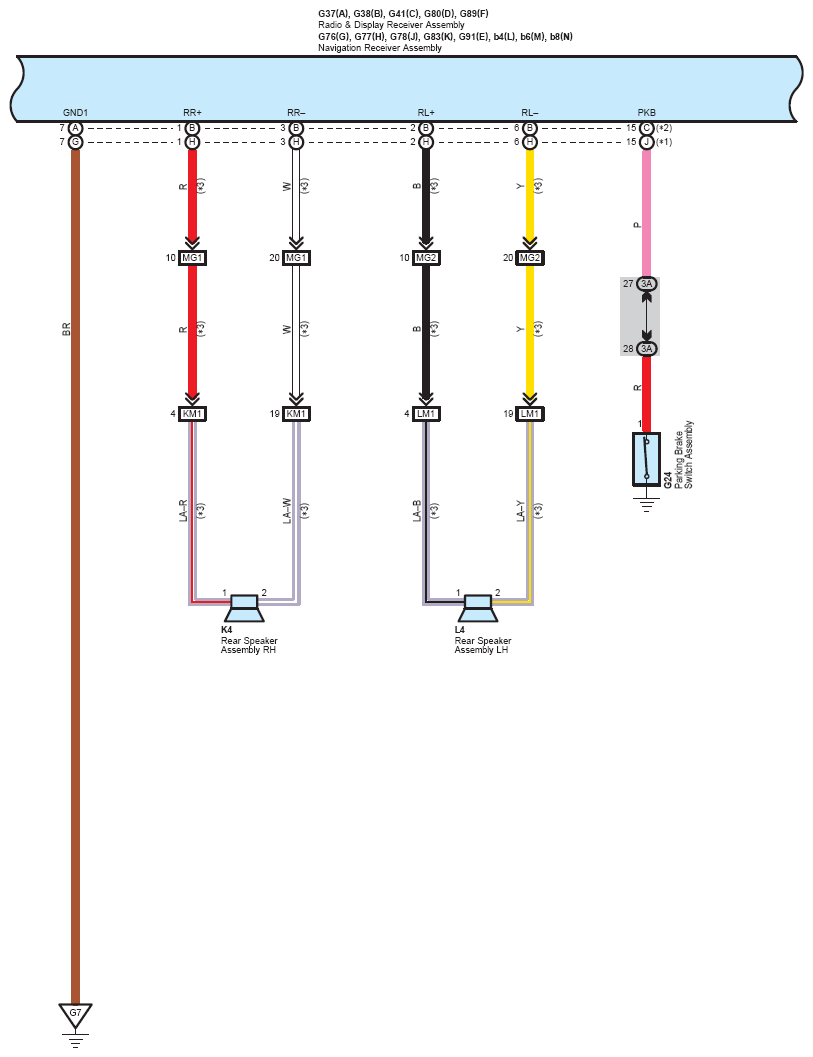

Fig 3: Audio System, Navigation System, Parking Assist (Rear View Monitor) (3 Of 10)
G12211168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

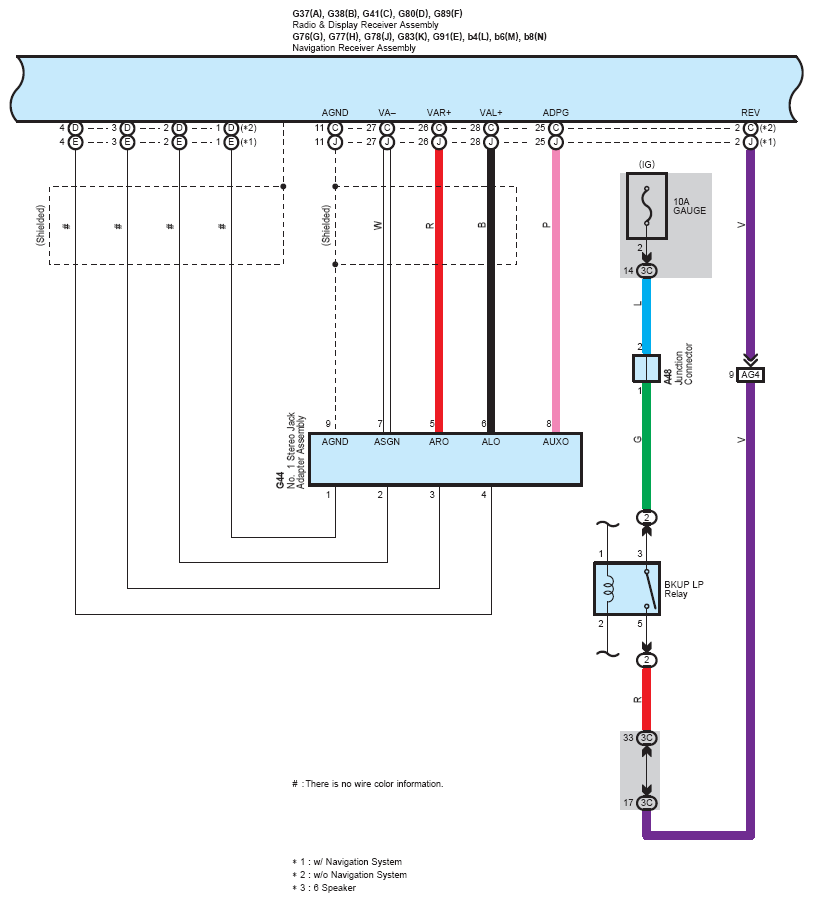

Fig 4: Audio System, Navigation System, Parking Assist (Rear View Monitor) (4 Of 10)
G12211169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

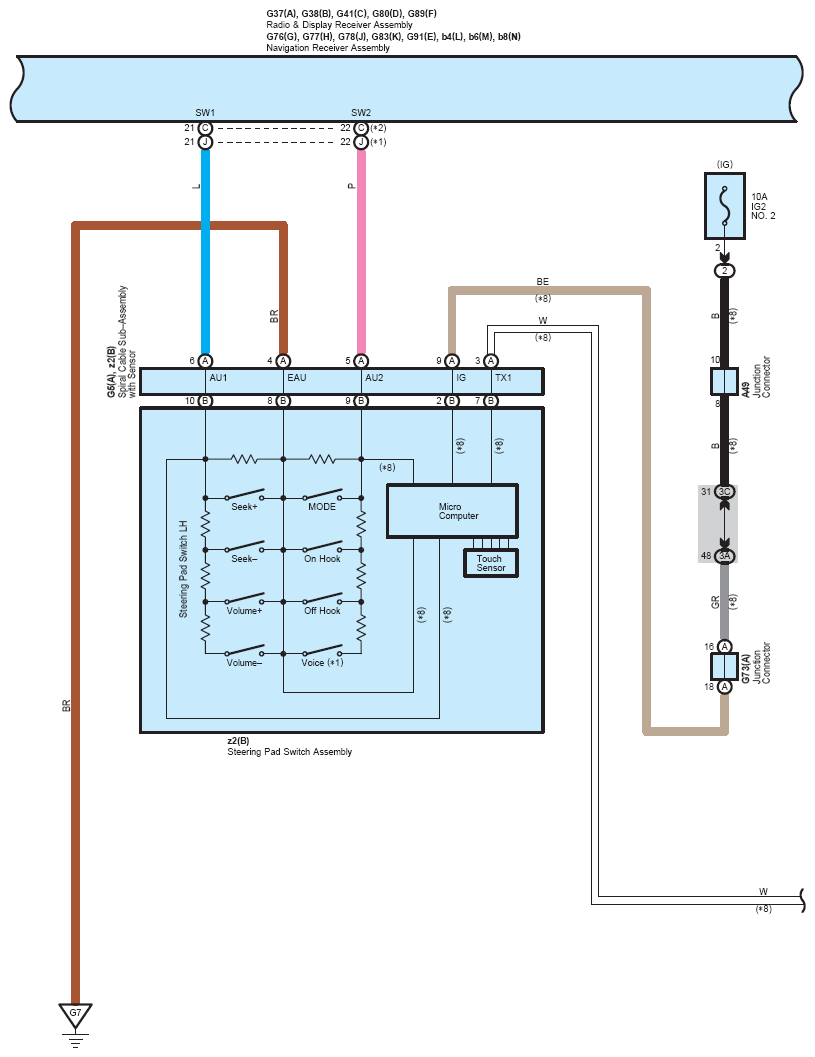

Fig 5: Audio System, Navigation System, Parking Assist (Rear View Monitor) (5 Of 10)
G12211170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

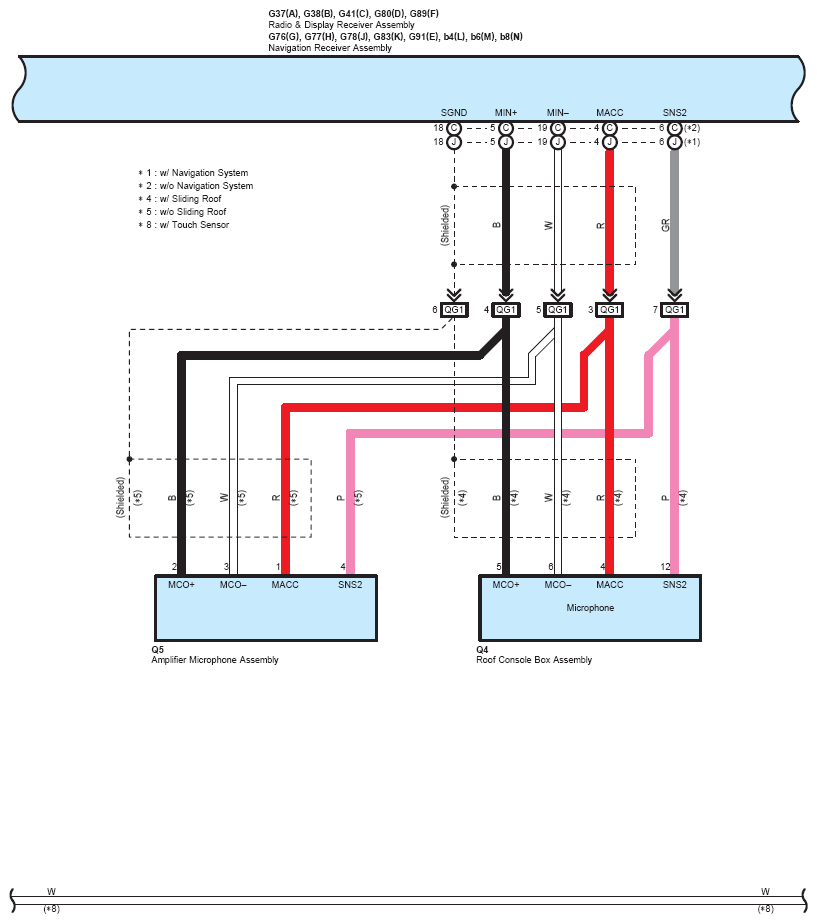

Fig 6: Audio System, Navigation System, Parking Assist (Rear View Monitor) (6 Of 10)
G12211171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

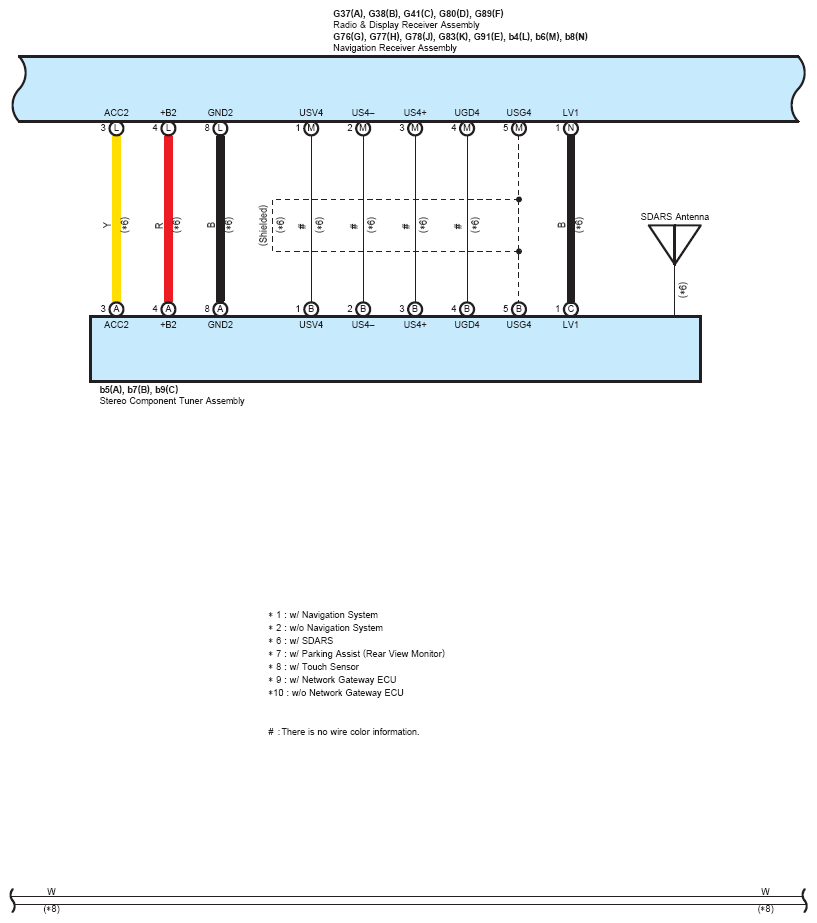

Fig 7: Audio System, Navigation System, Parking Assist (Rear View Monitor) (7 Of 10)
G12211172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

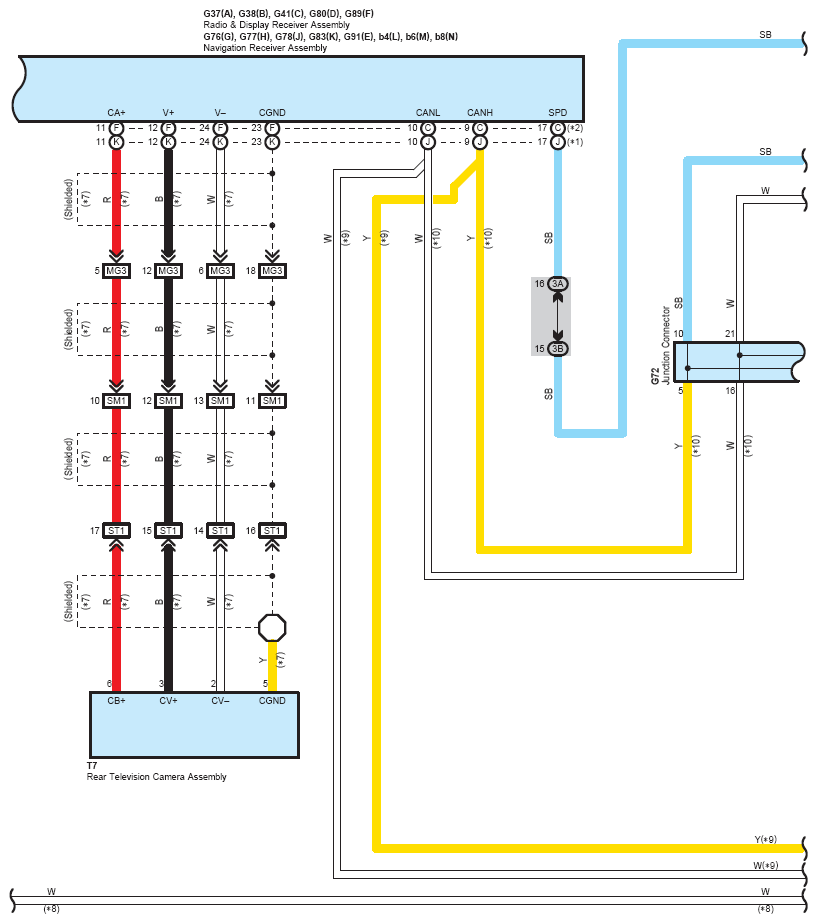

Fig 8: Audio System, Navigation System, Parking Assist (Rear View Monitor) (8 Of 10)
G12211173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

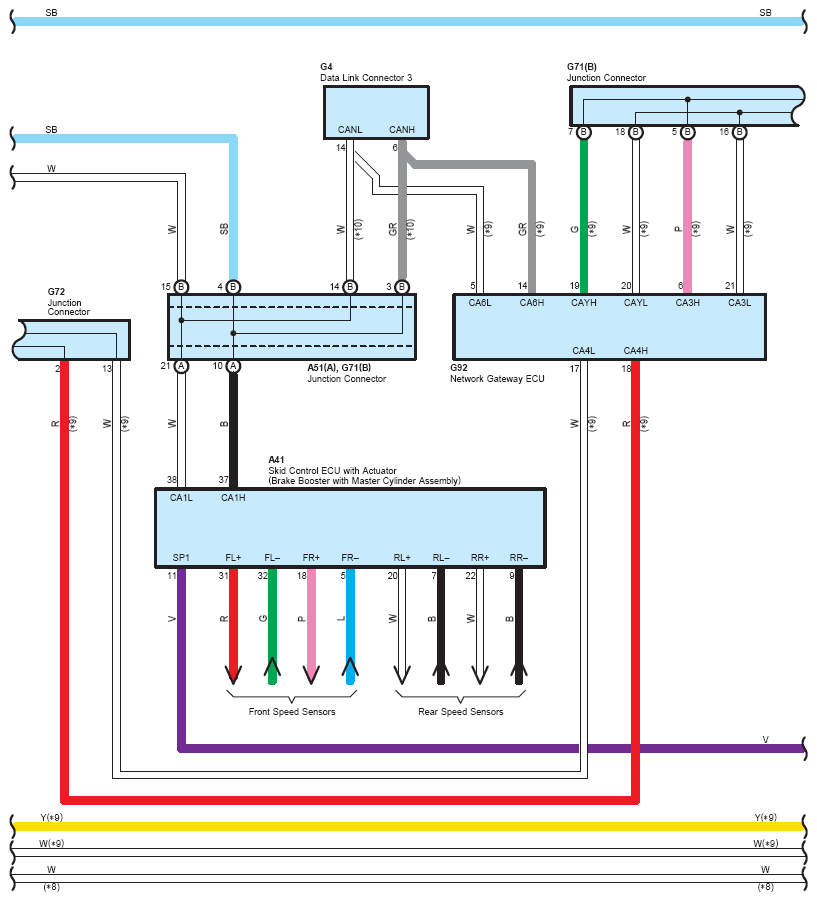

Fig 9: Audio System, Navigation System, Parking Assist (Rear View Monitor) (9 Of 10)
G12211174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

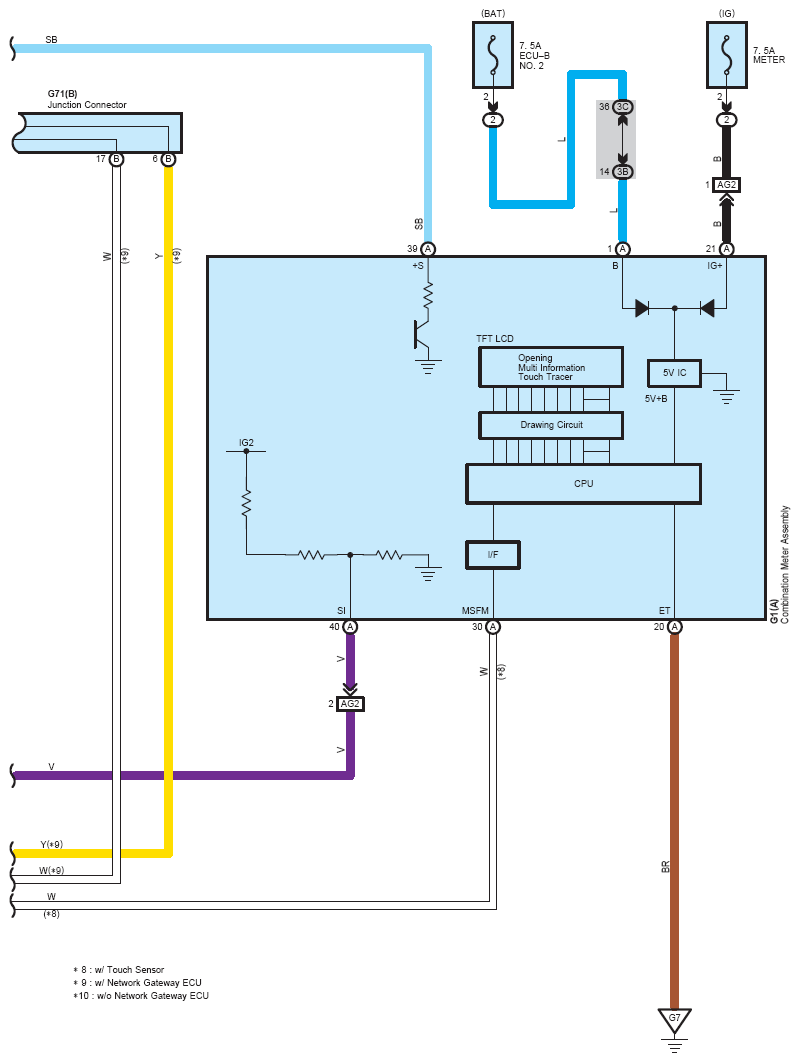

Fig 10: Audio System, Navigation System, Parking Assist (Rear View Monitor) (10 Of 10)
G12211175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
