Key Reminder (W/O Smart Key System), Light Reminder: Connectors

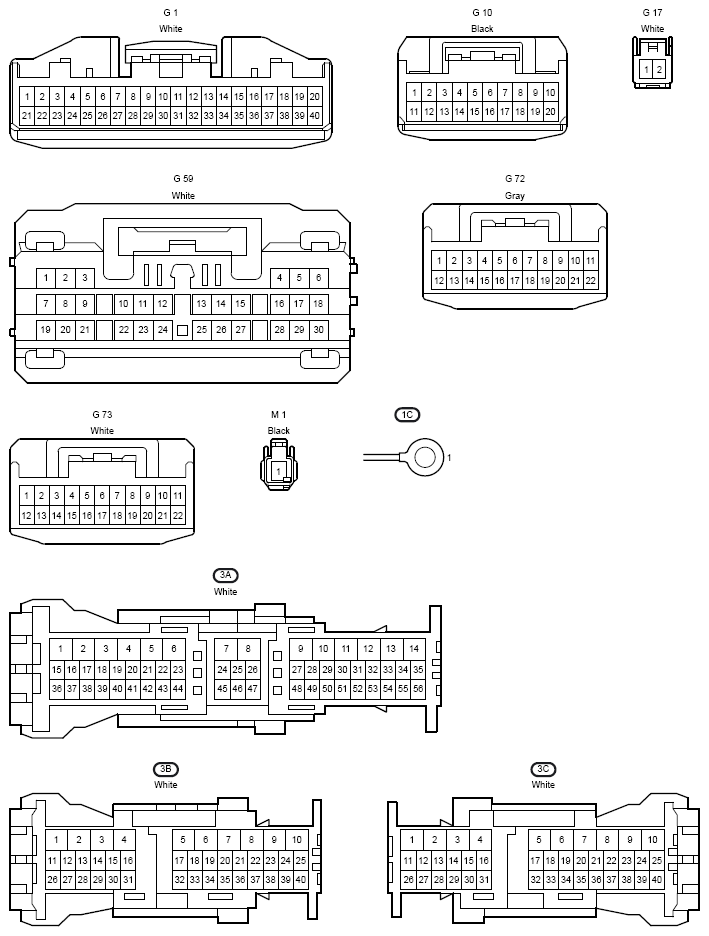

Fig 1: Connectors (1 Of 2)
G12211337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

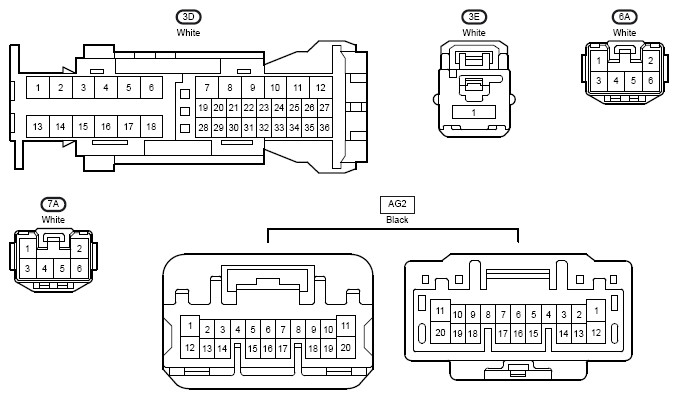

Fig 2: Connectors (2 Of 2)
G12211338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
