Sliding Roof: Connectors

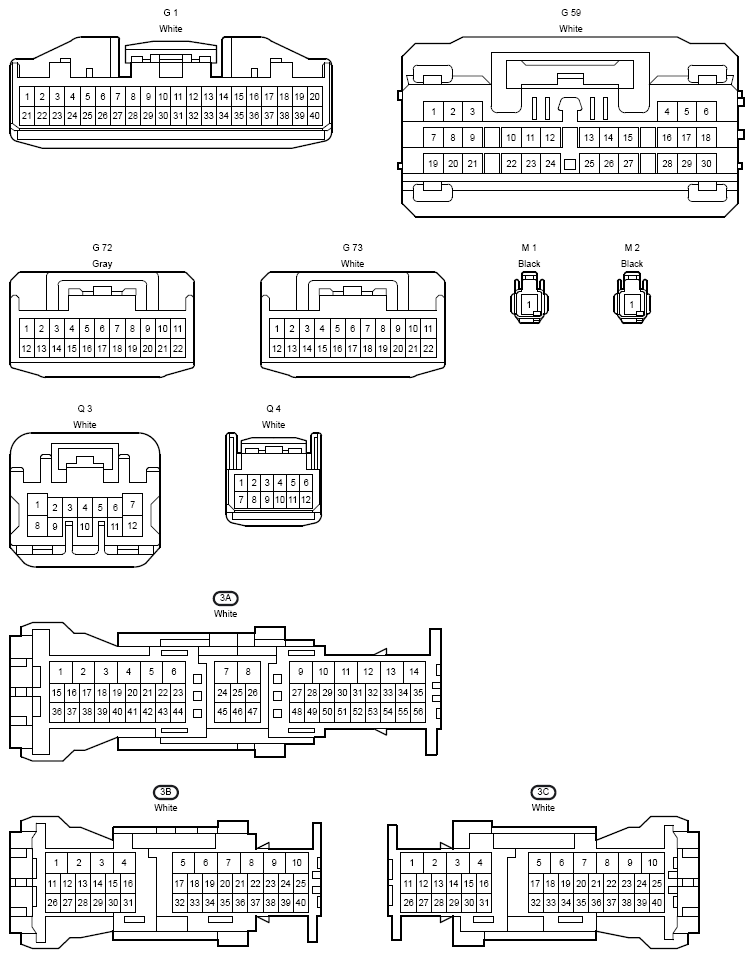

Fig 1: Connectors (1 Of 2)
G12211423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

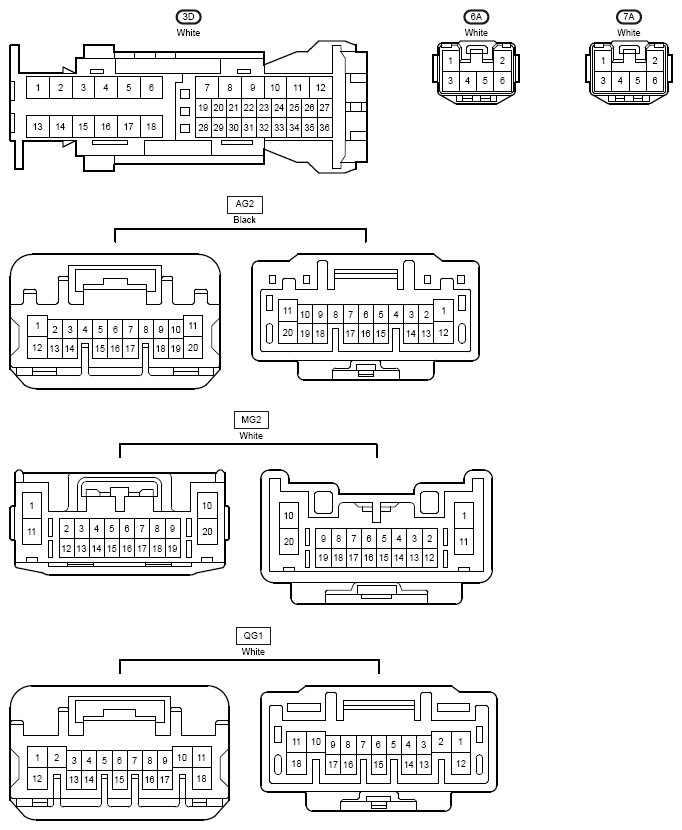

Fig 2: Connectors (2 Of 2)
G12211424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
