Turn Signal And Hazard Warning Light
›
System Diagrams
System Diagrams

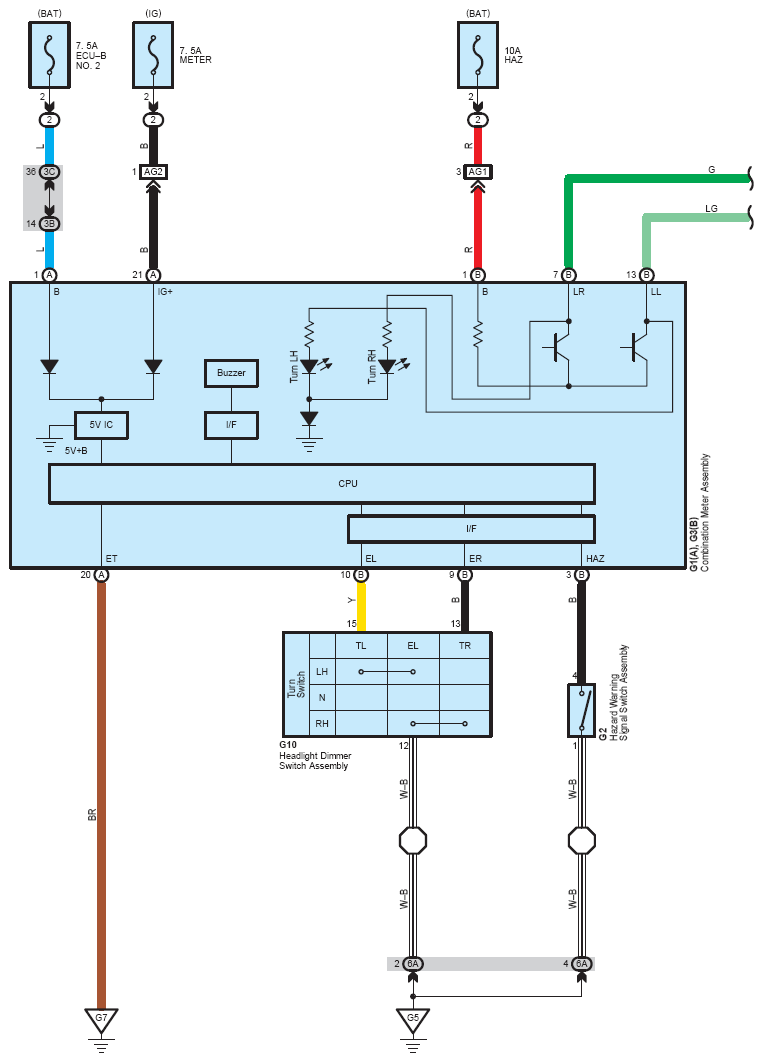

Fig 1: Turn Signal And Hazard Warning Light (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

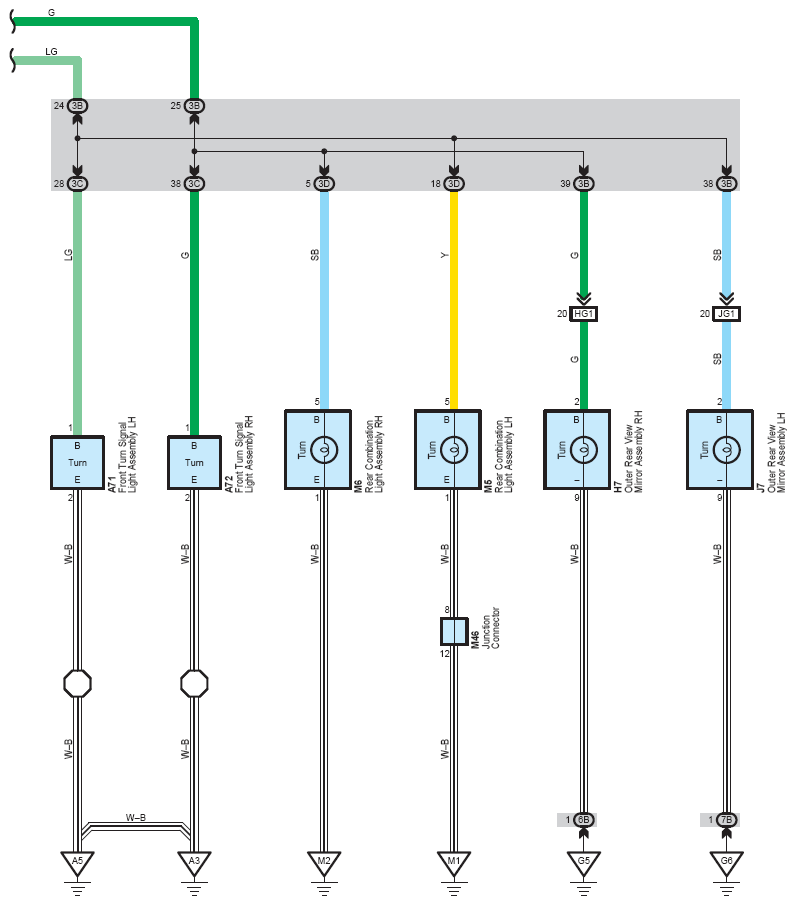

Fig 2: Turn Signal And Hazard Warning Light (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
