Removal [11/2015 - ]: Procedure

  1. REMOVE INTAKE MANIFOLD

    (Refer to REMOVAL [11/2015 - ] )

  2. REMOVE KNOCK CONTROL SENSOR
    1. Disconnect the knock control sensor connector.

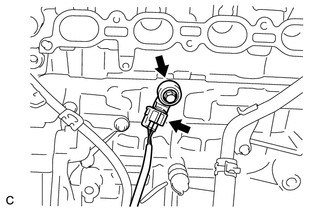

      GTY338374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002.
    2. Remove the bolt and remove the knock control sensor.
