System Diagrams

Fig 1: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (1 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (2 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (3 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (4 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

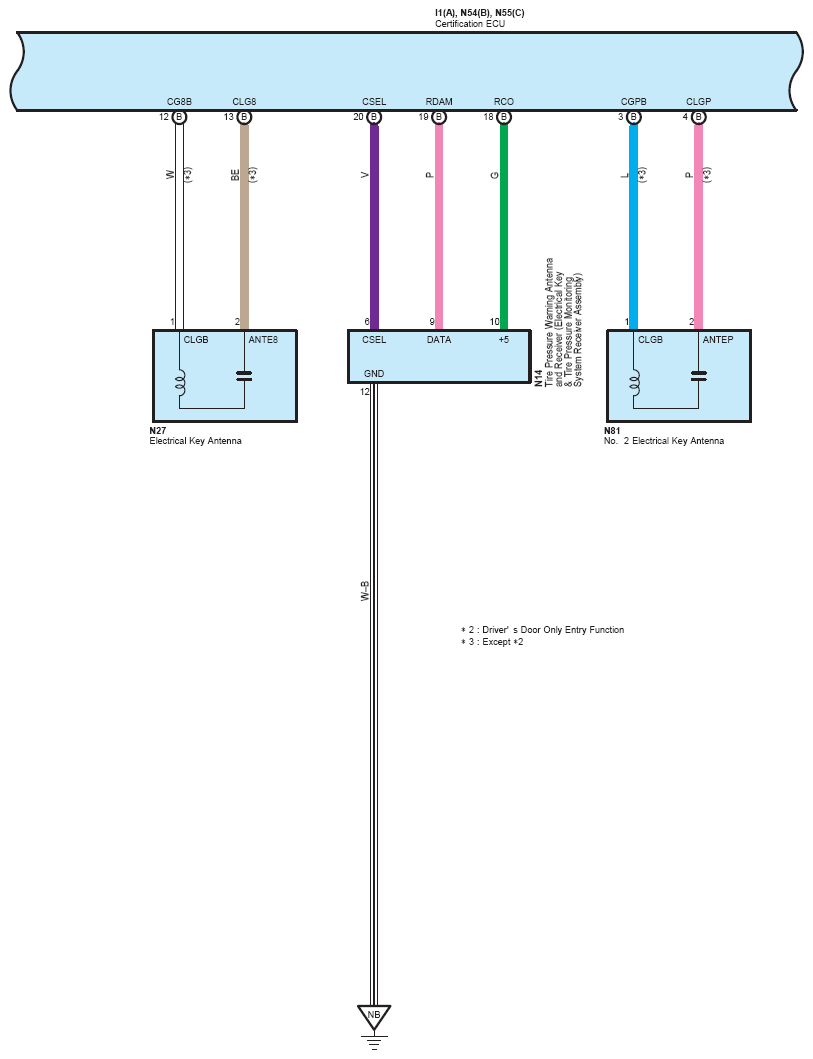

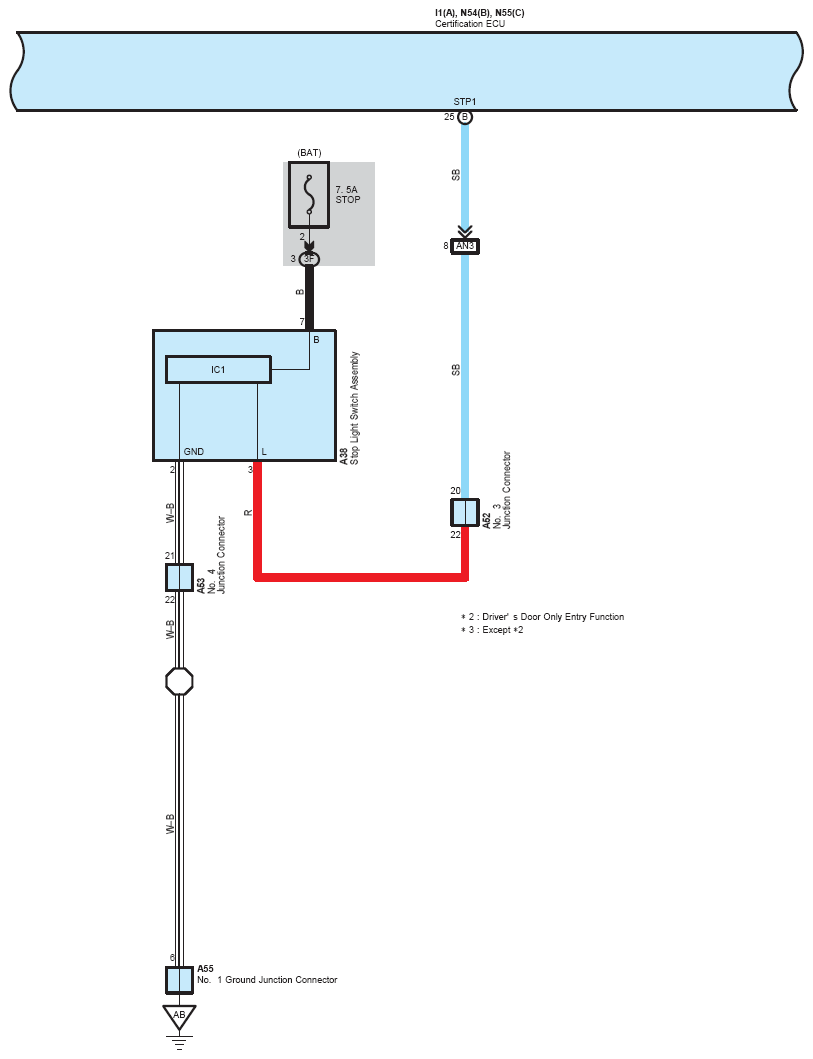

Fig 5: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (5 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (6 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

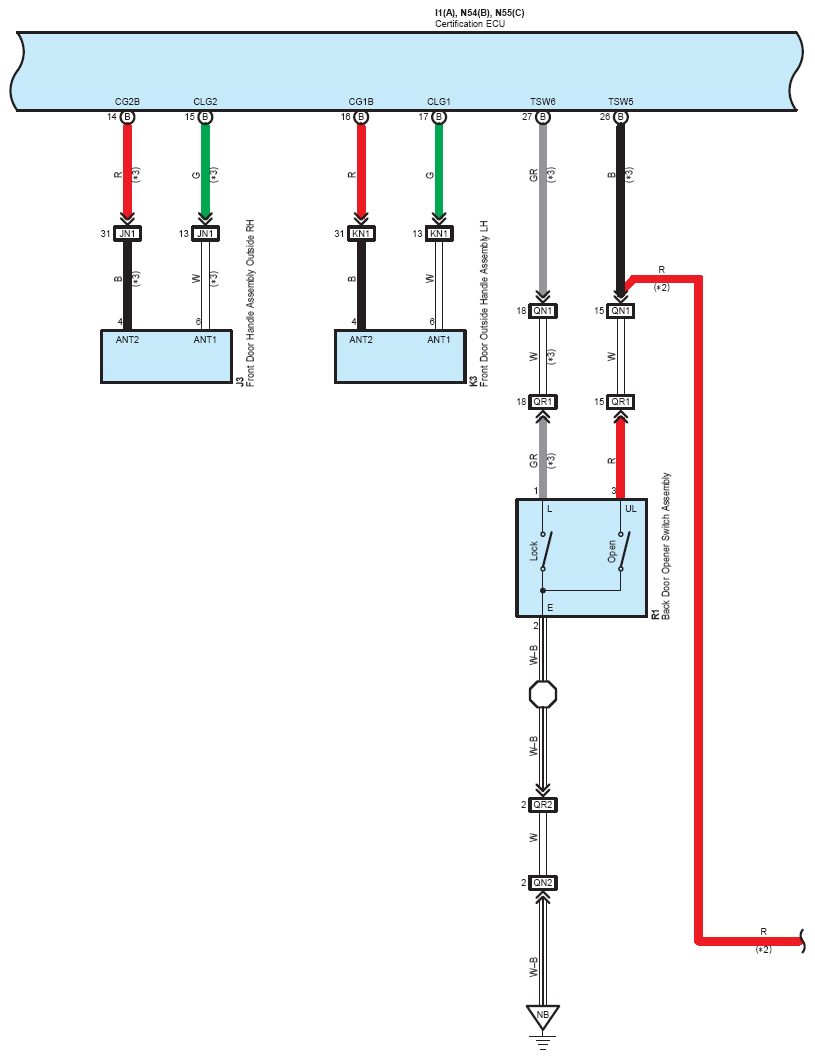

Fig 7: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (7 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

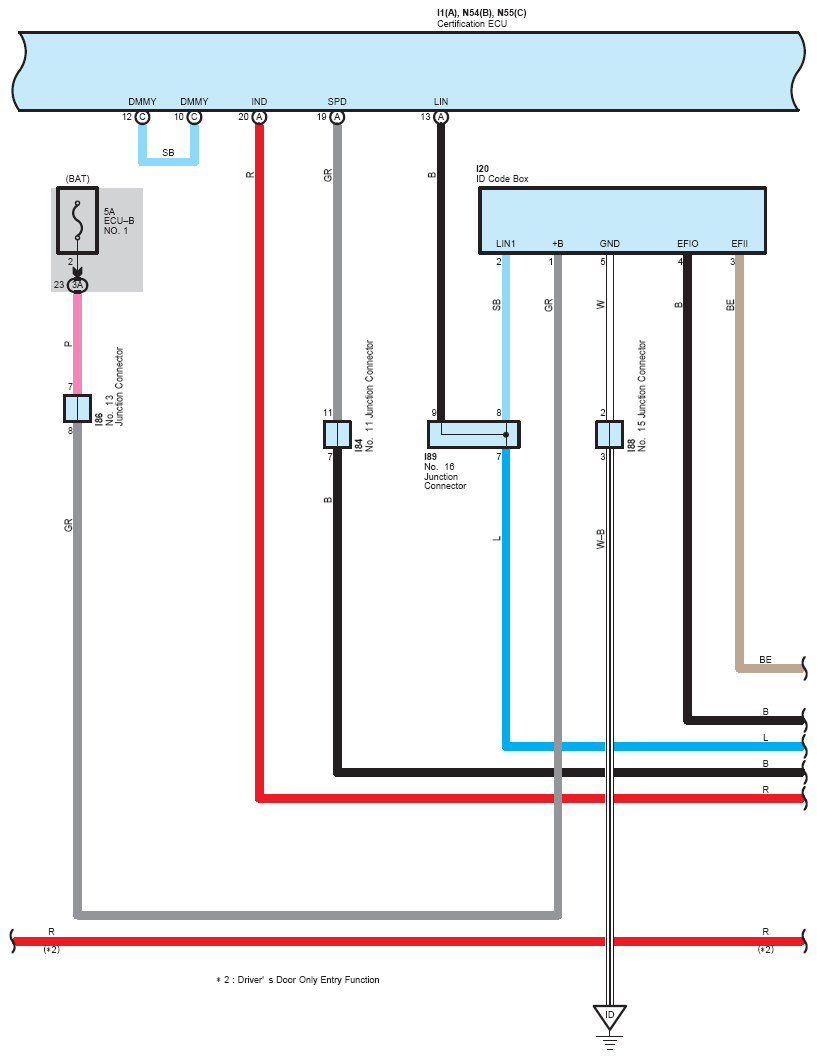

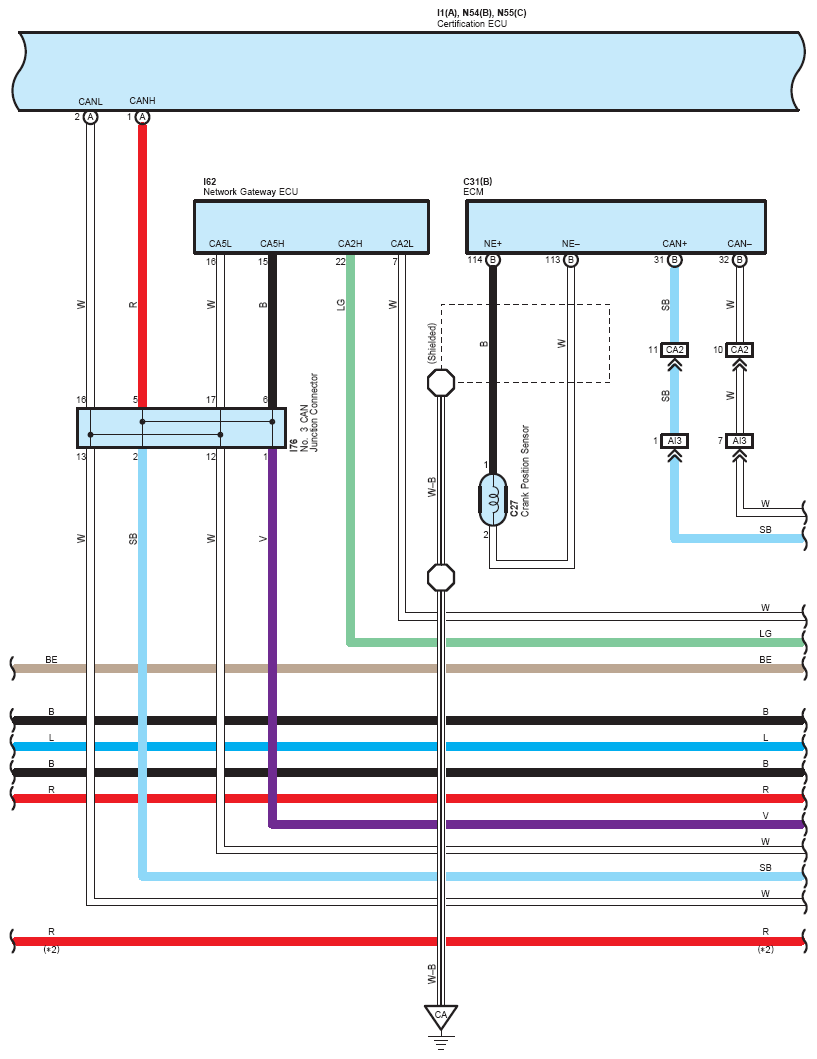

Fig 8: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (8 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

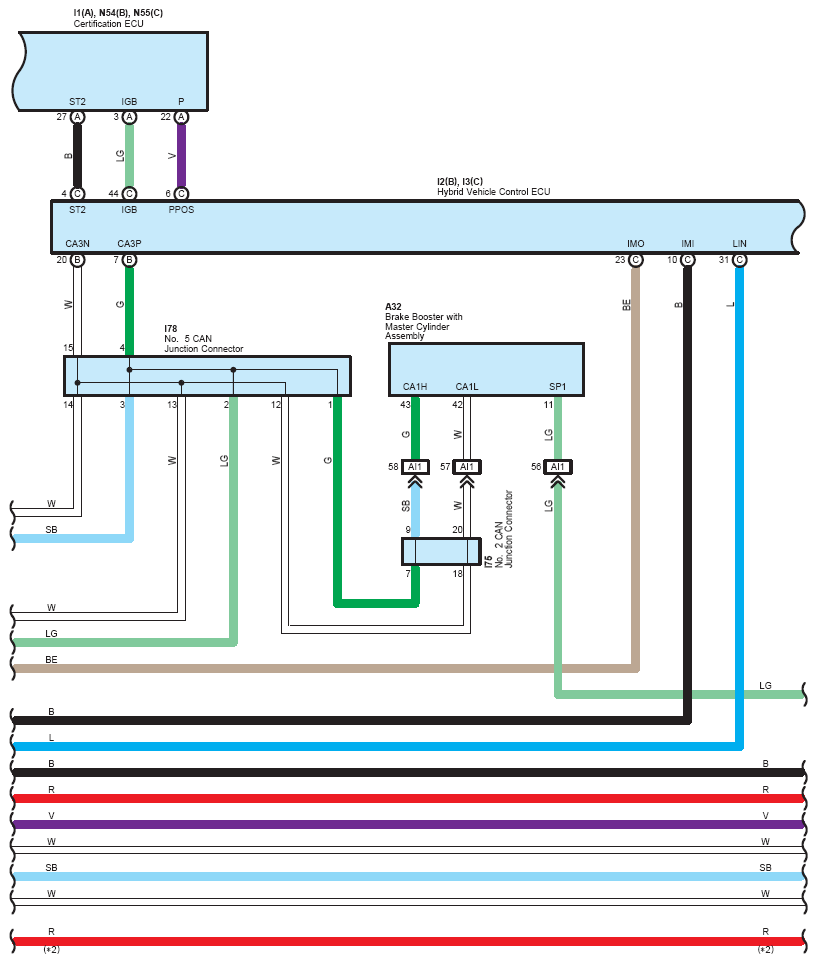

Fig 9: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (9 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (10 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (11 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

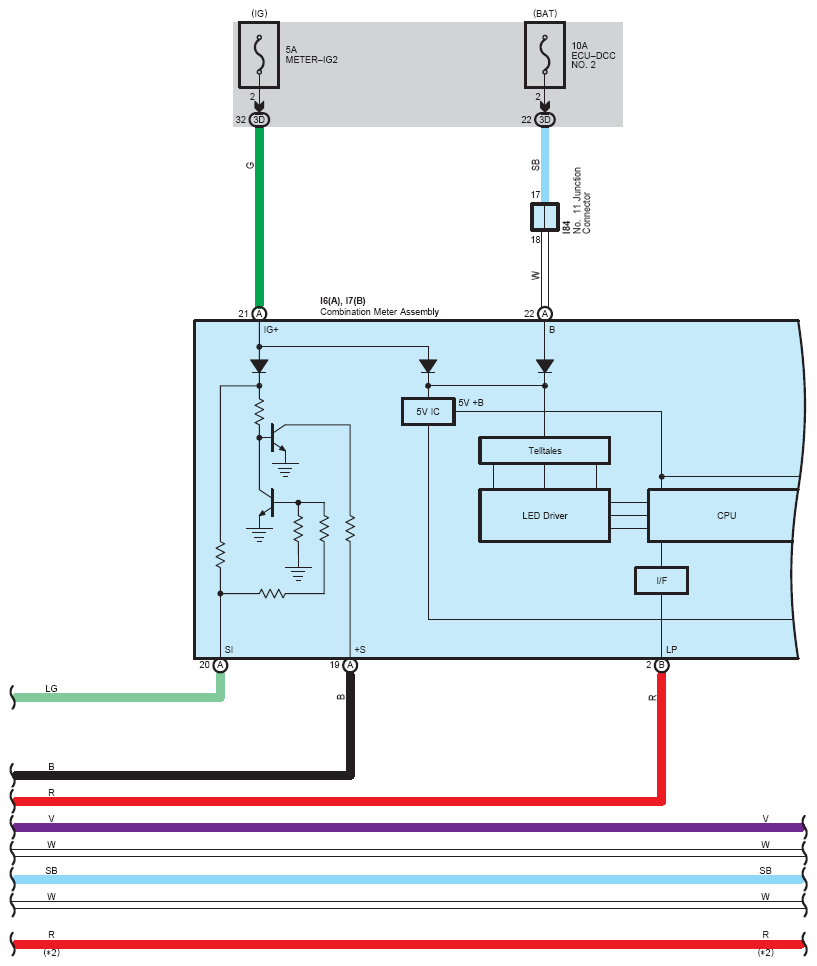

Fig 12: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (12 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

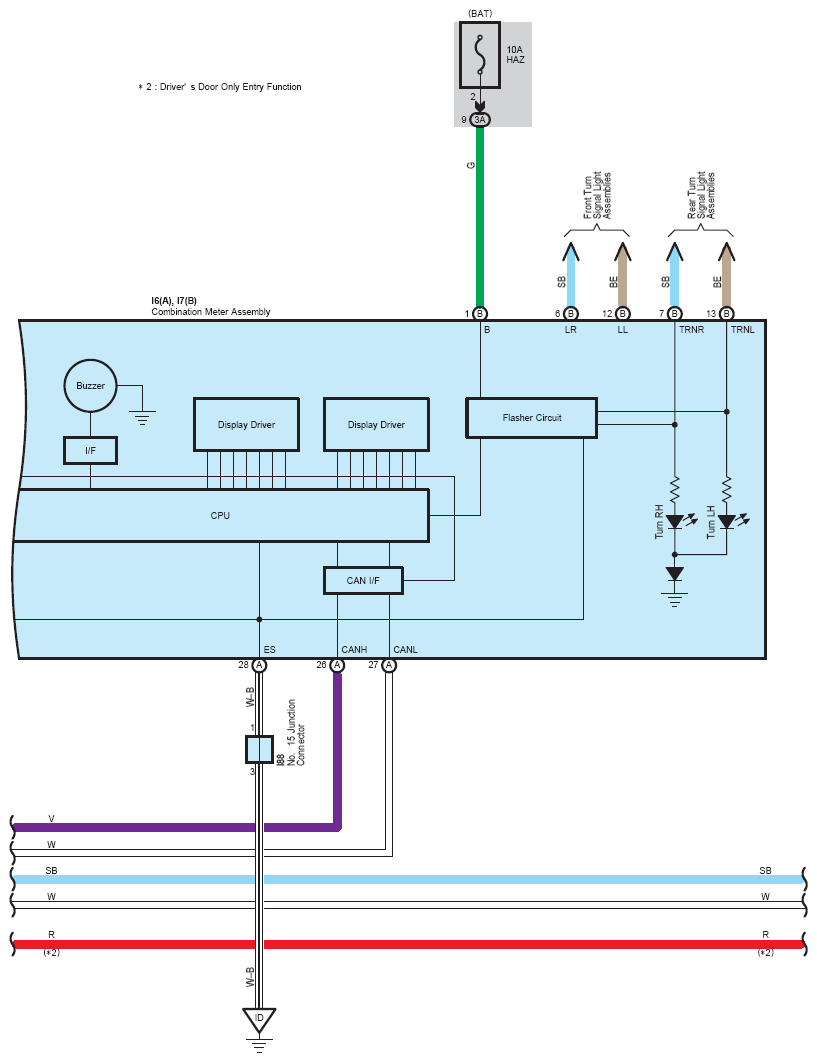

Fig 13: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (13 Of 20)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

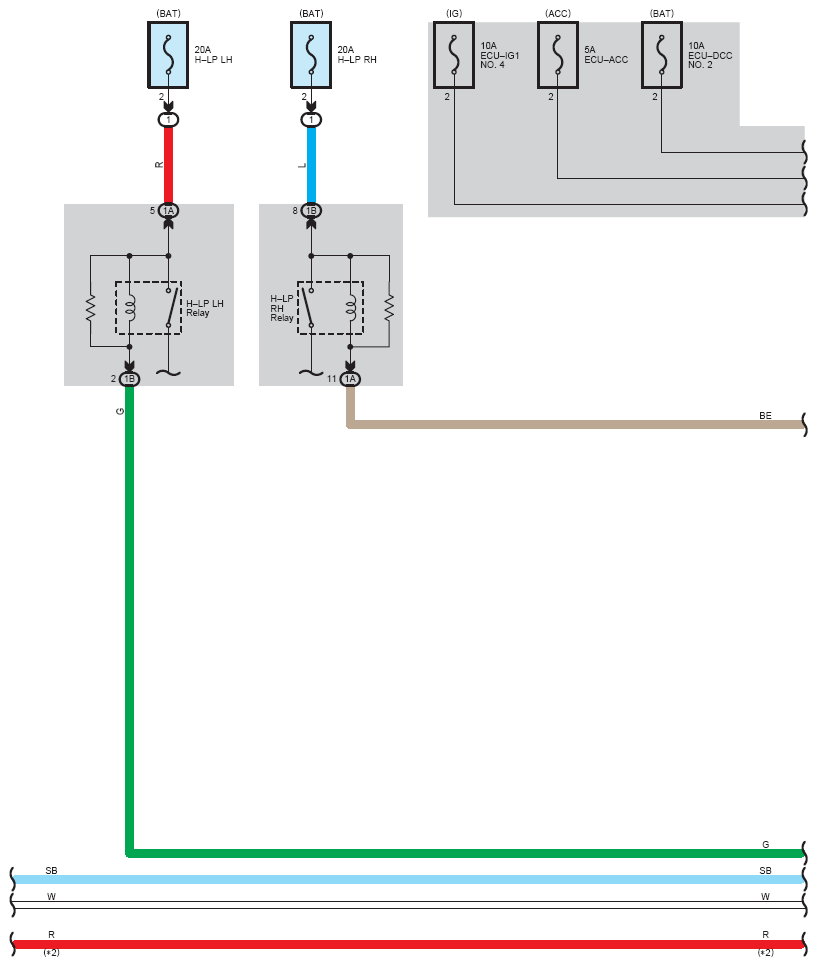

Fig 14: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (14 Of 20)

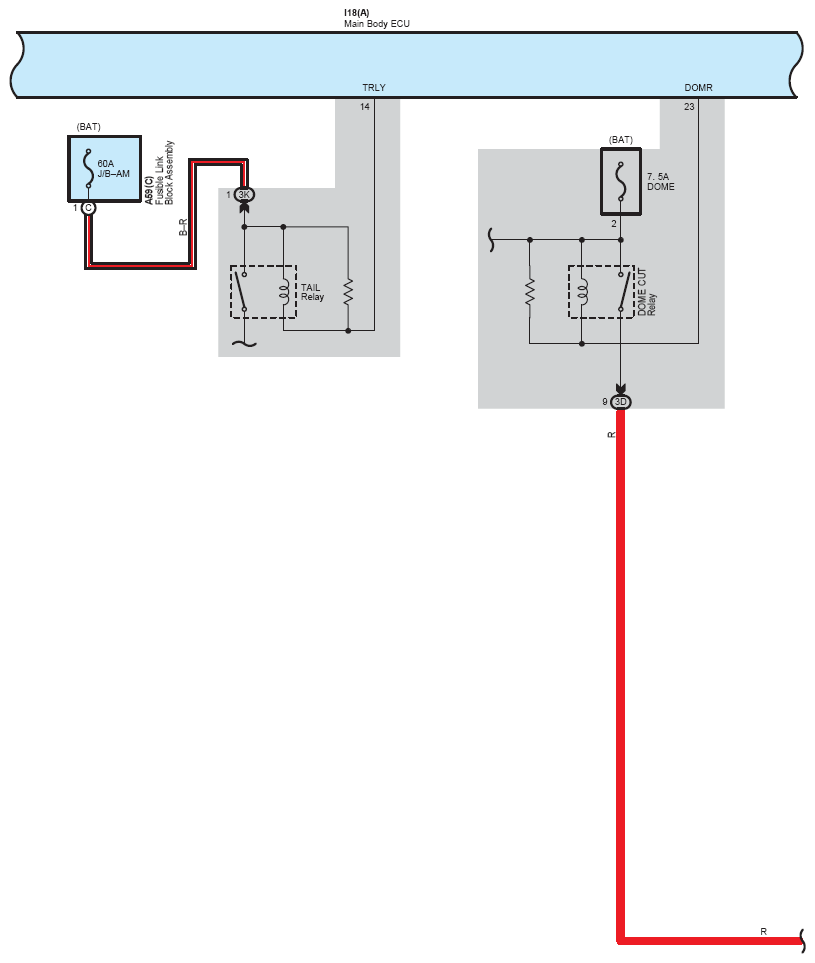

Fig 15: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (15 Of 20)

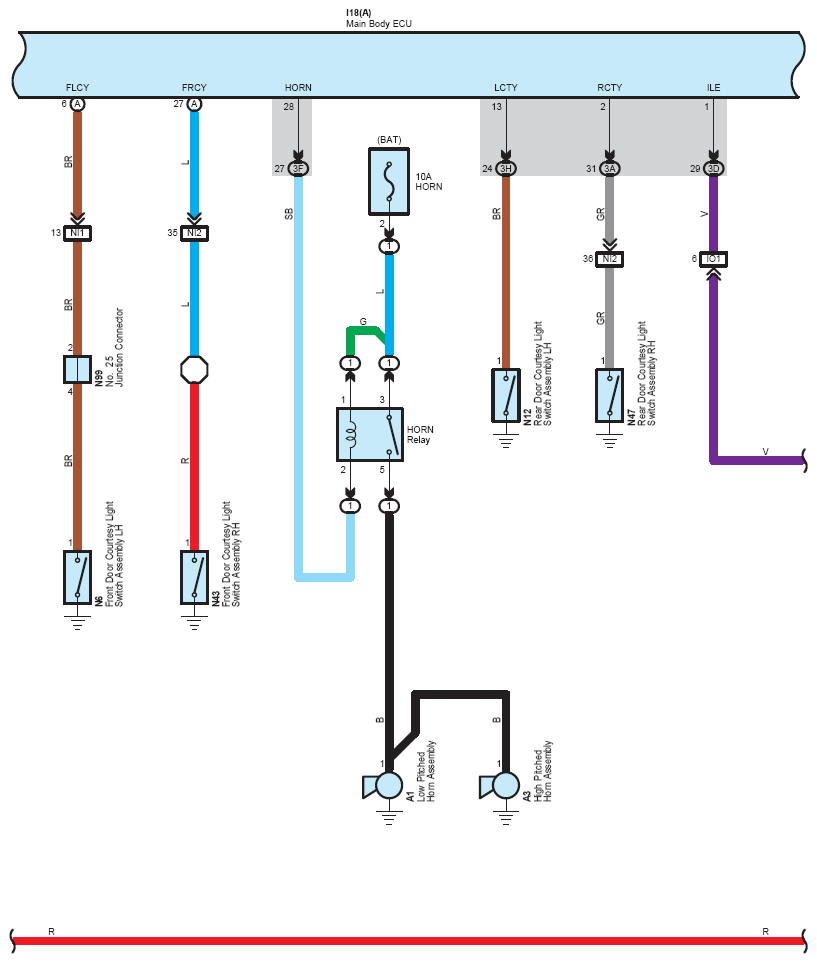

Fig 16: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (16 Of 20)

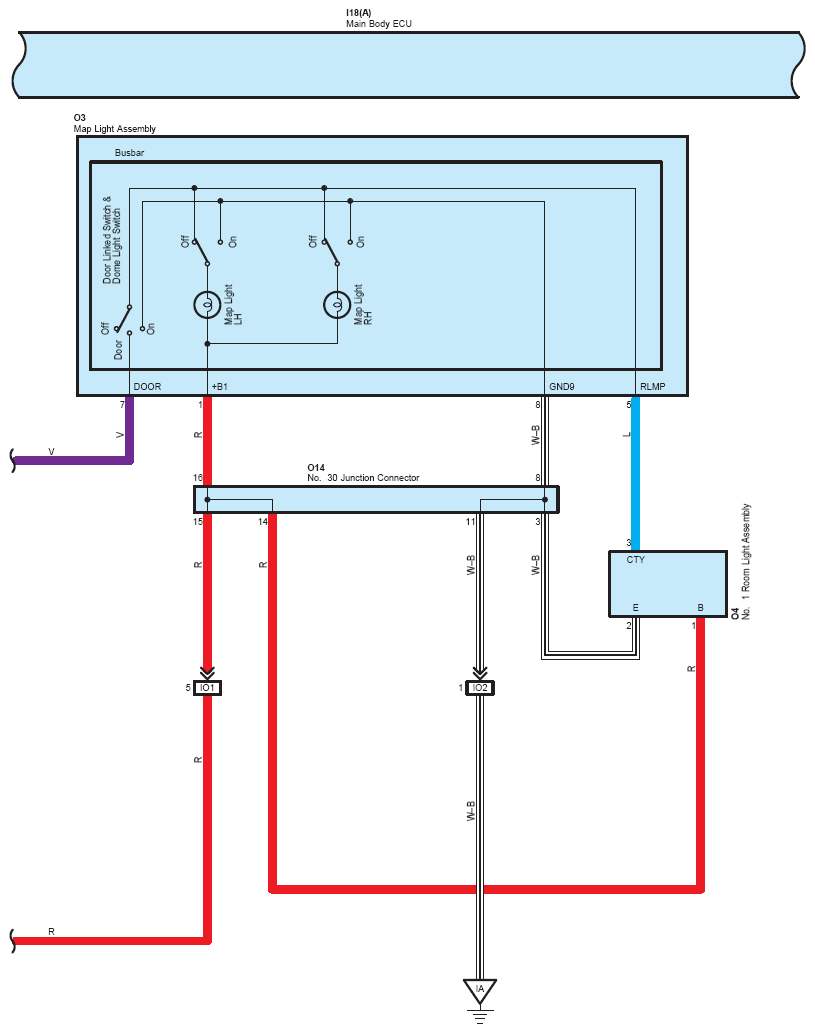

Fig 17: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (17 Of 20)

Fig 18: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (18 Of 20)

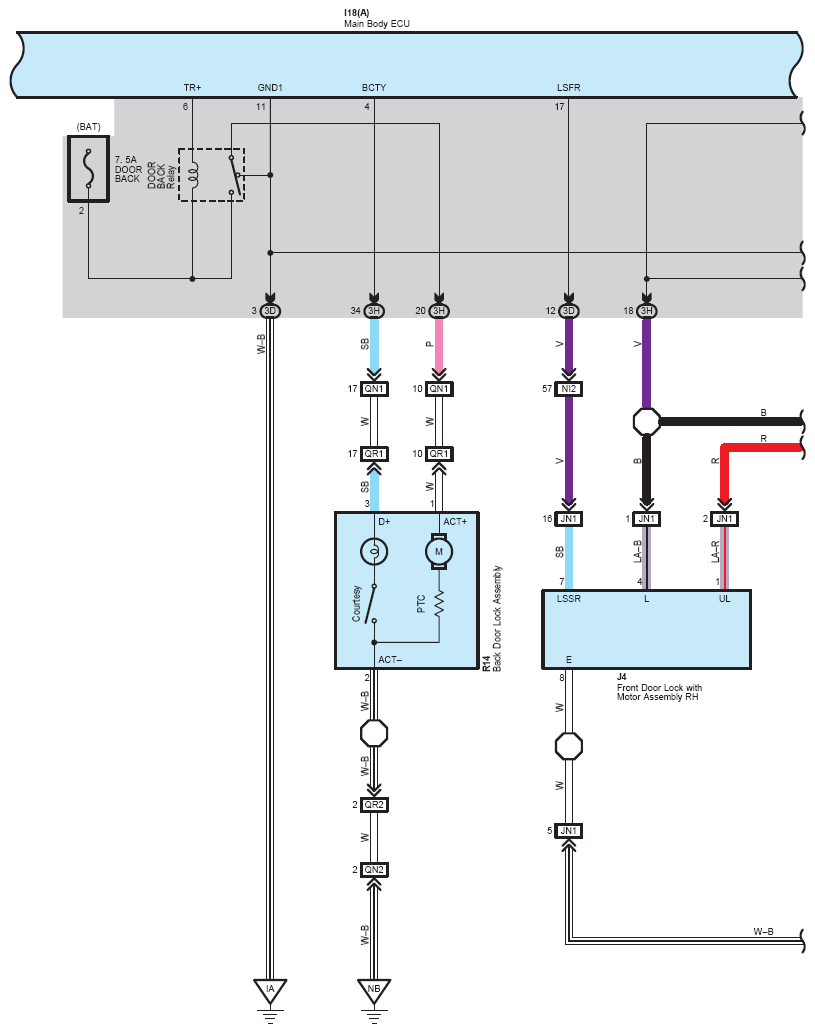

Fig 19: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (19 Of 20)

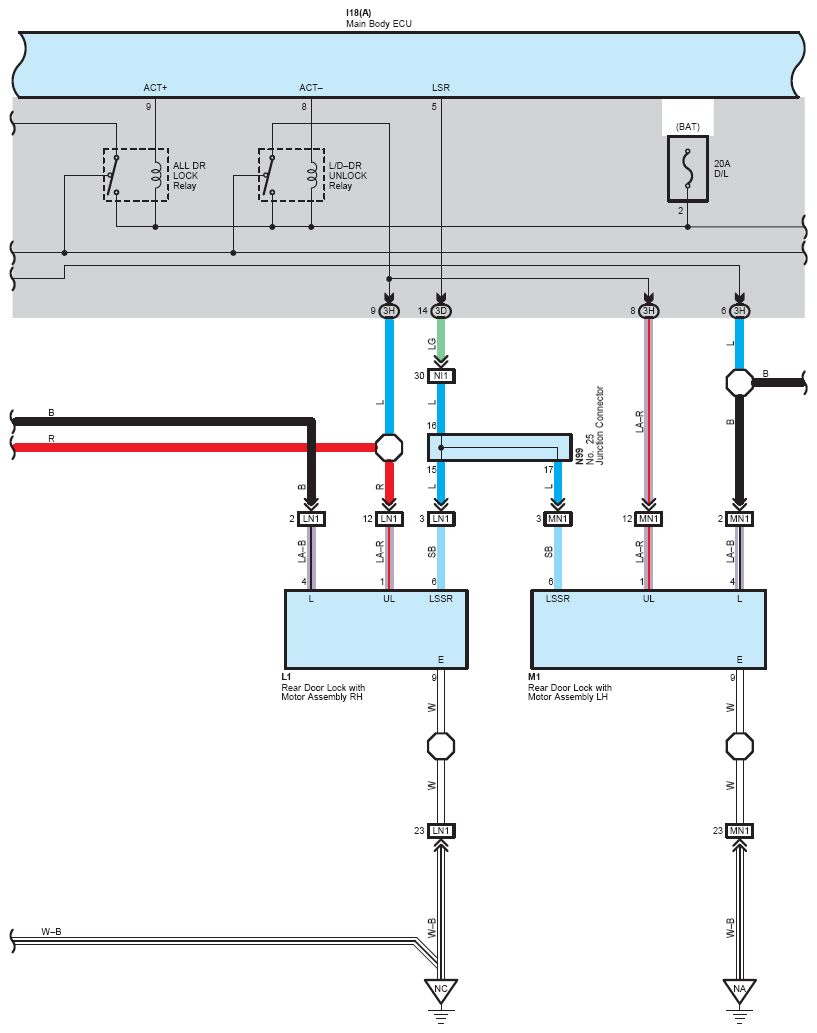

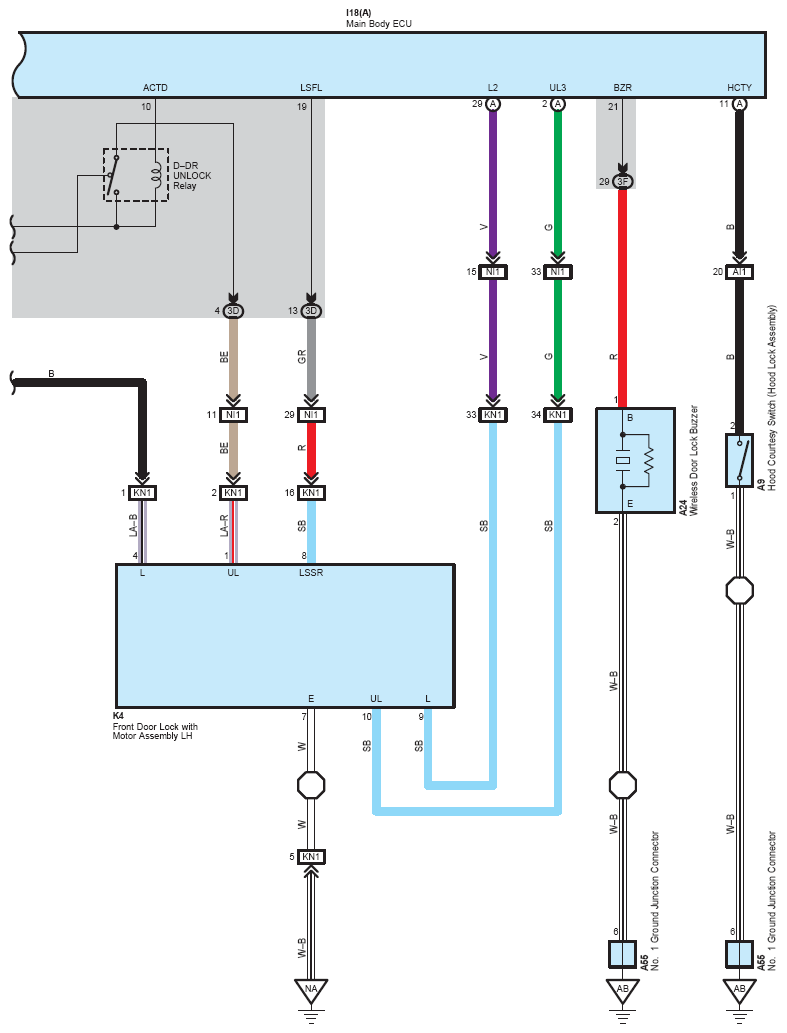

Fig 20: Back Door Opener, Immobiliser System, Smart Key System, Starting, Wireless Door Lock Control (20 Of 20)
