Prius Prime Advanced
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Safety Connect
›
System Diagrams
System Diagrams

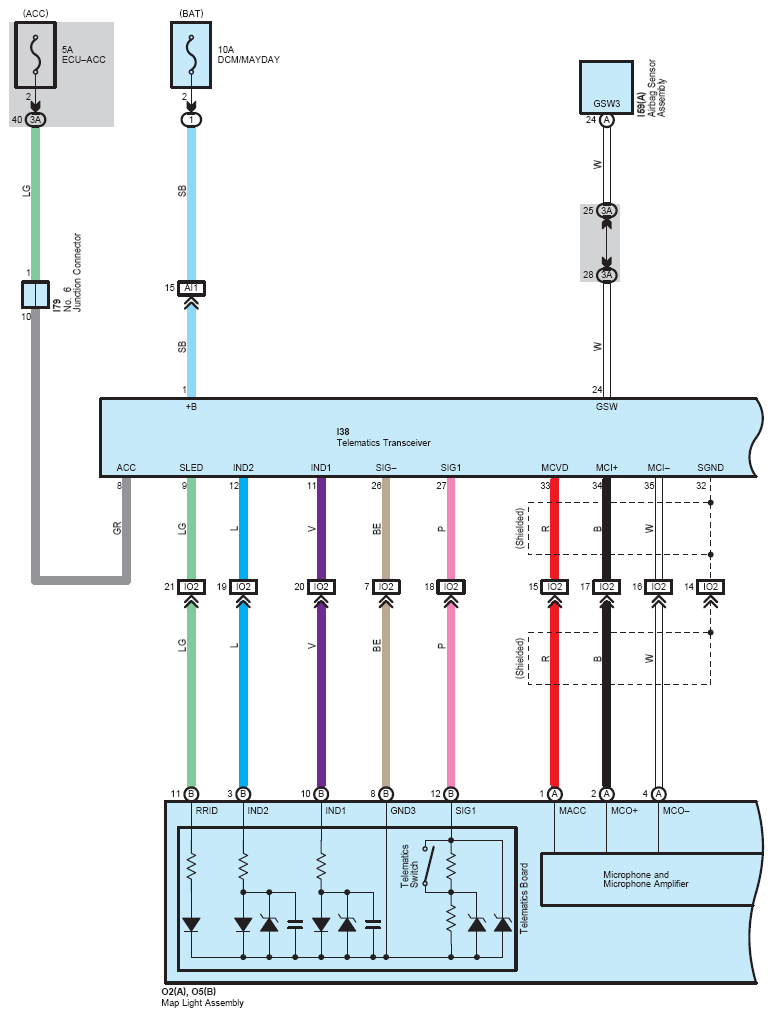

Fig 1: Safety Connect (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

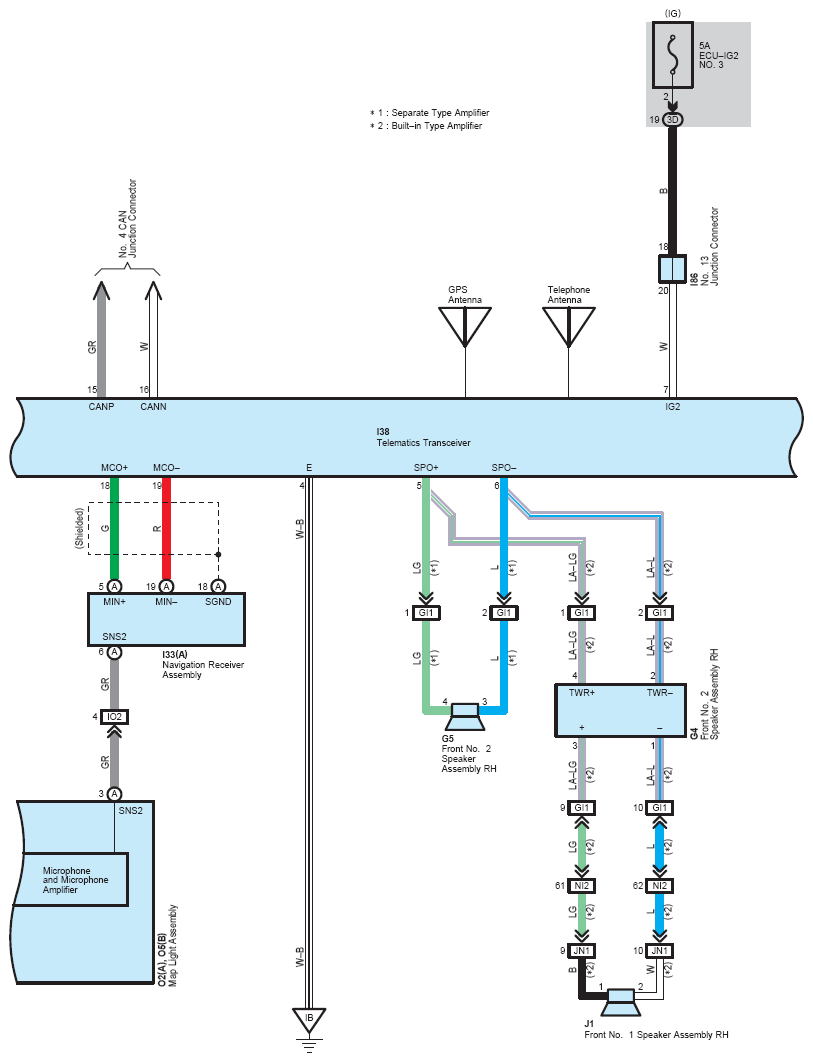

Fig 2: Safety Connect (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Safety Connect (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

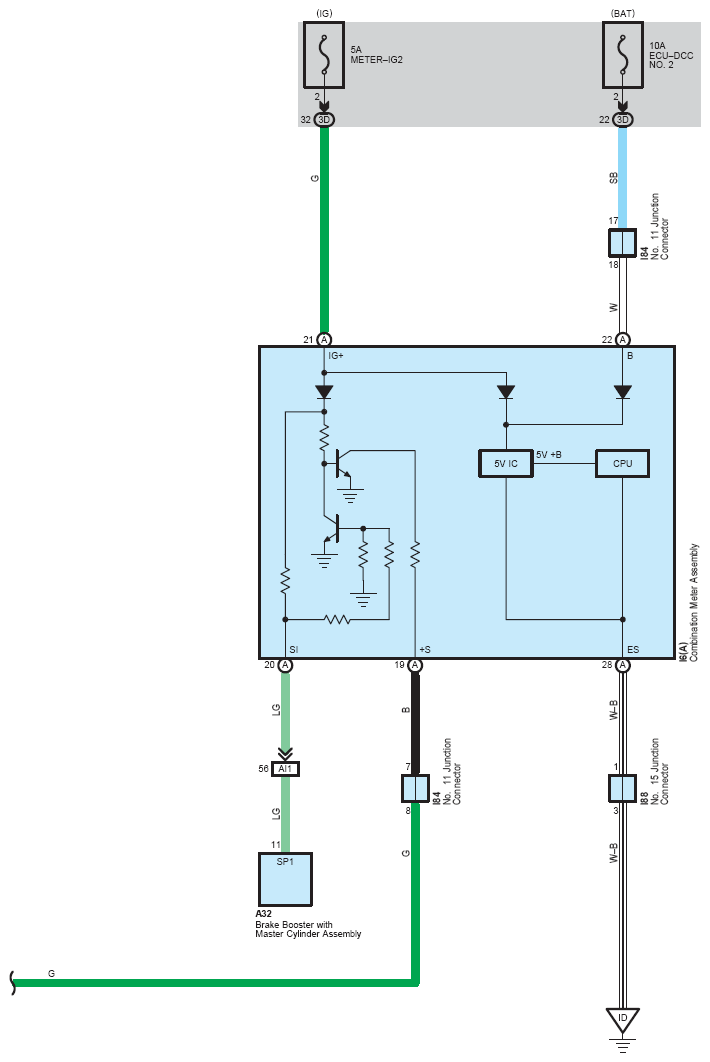

Fig 4: Safety Connect (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
