Plug-In Charge Control System
›
Circuit Tests
›
ECU Power Source Circuit [09/2016 - ]
›
Wiring Diagram

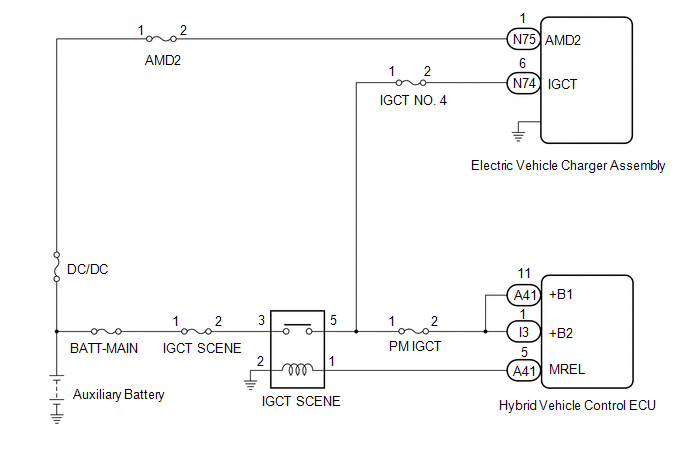

ECU Power Source Circuit [09/2016 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
