Prius Prime Advanced
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Plug-In Charge Control System - Diagnostic Codes
›
Plug-In Charge Control System
›
DTC U1150-87: Lost Communication with Hybrid/EV Powertrain Control Module (Hybrid/EV Battery Local Bus) Missing Message [09/2016 - ]
›
Wiring Diagram

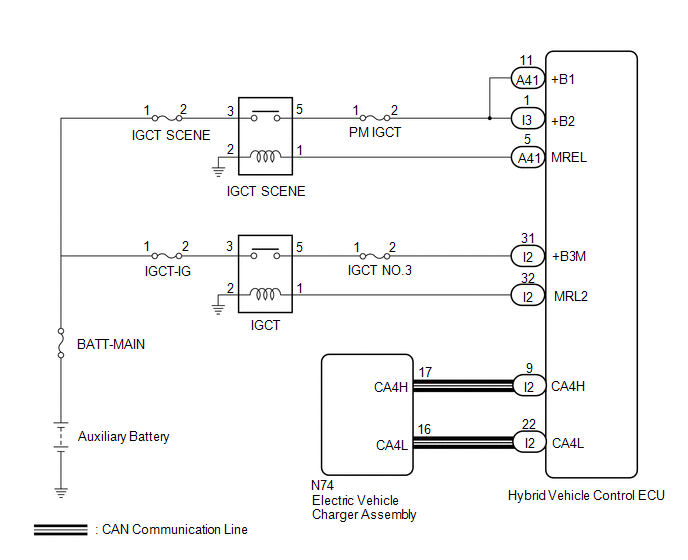

DTC U1150-87: Lost Communication with Hybrid/EV Powertrain Control Module (Hybrid/EV Battery Local Bus) Missing Message [09/2016 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
