Components [09/2016 - ]

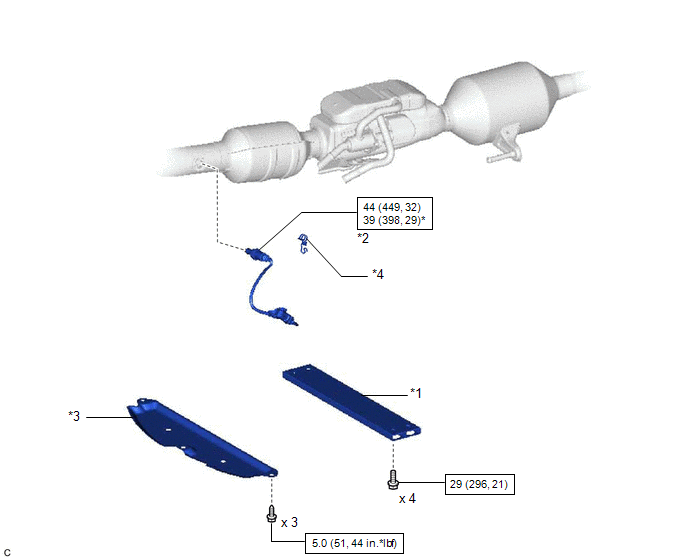

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY709563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT CENTER FLOOR BRACE *2 HEATED OXYGEN SENSOR
*3 NO. 2 ENGINE UNDER COVER *4 WIRE HARNESS CLAMP BRACKET
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
