Prius Prime Advanced
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System - System & Circuit Tests
›
SFI System
›
ECM Power Source Circuit [07/2020 - ]
›
Wiring Diagram

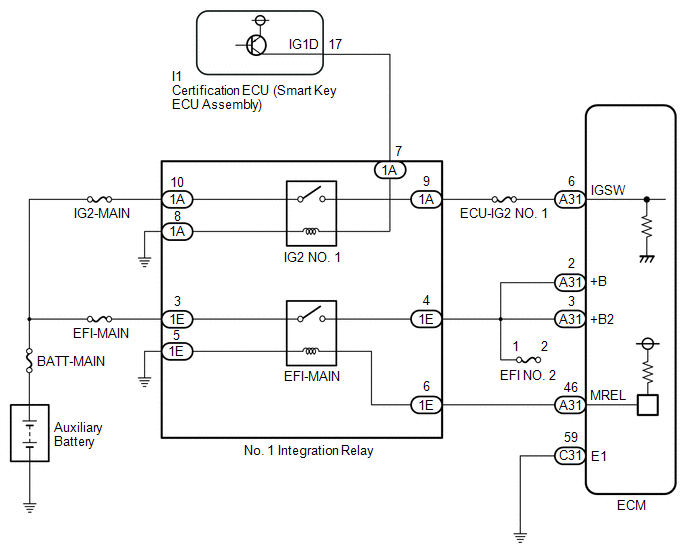

ECM Power Source Circuit [07/2020 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
