Fuel Pump Control Circuit [09/2016 - 07/2020]
›
Wiring Diagram

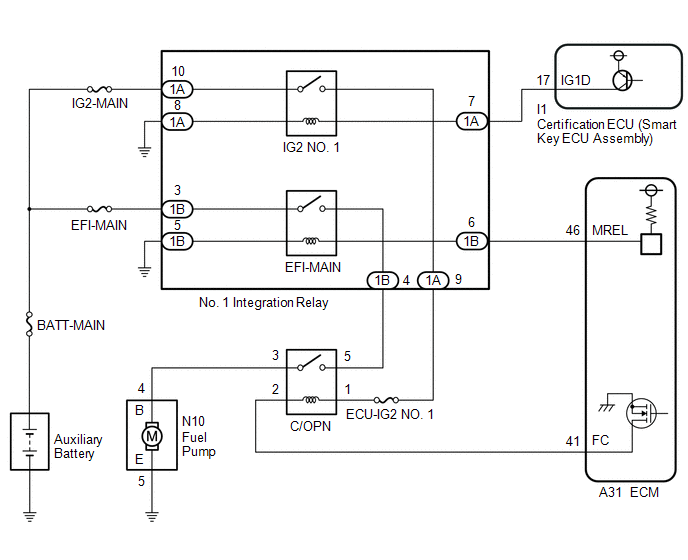

Fuel Pump Control Circuit [09/2016 - 07/2020]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
