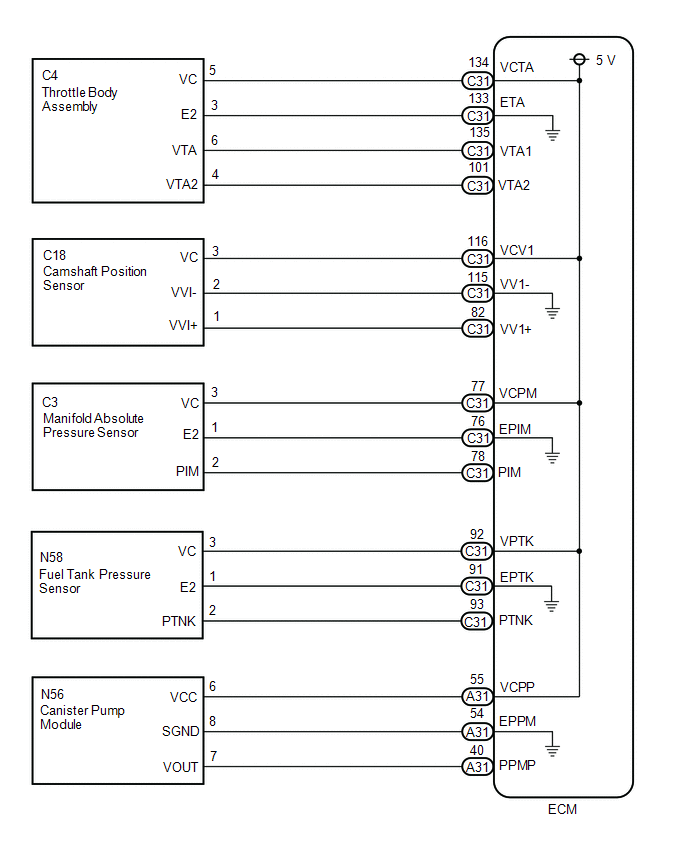

VC Output Circuit [09/2016 - ]: Wiring Diagram

For the circuit diagram of the ECM power source refer to the ECM power source circuit.
Refer to WIRING DIAGRAM Refer to WIRING DIAGRAM
VC Output Circuit
