Removal [09/2016 - ]: Procedure

REMOVE NO. 2 FLOOR UNDER COVER (for LH Side)

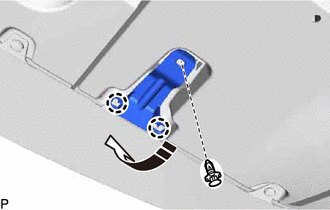

Remove the clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Separate in this Direction

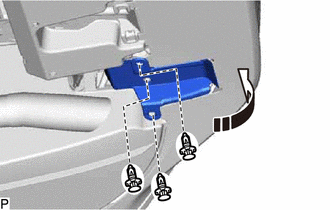

Disengage the 2 claws to separate the rear bumper assembly as shown in the illustration.

Remove the 4 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

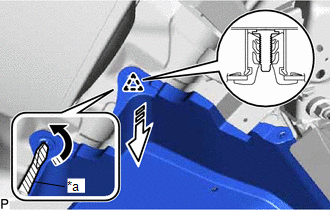

Using a screwdriver with its tip wrapped with protective tape, while pulling the No. 2 floor under cover as shown in the illustration, turn the clip to disengage the No. 2 floor under cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Turn in this Direction
	Remove in this Direction

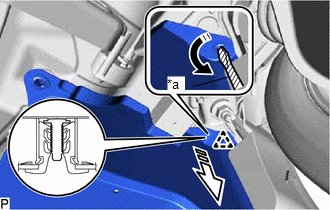

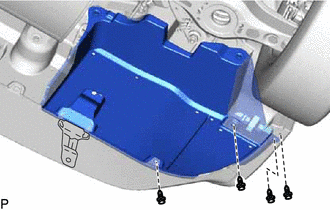

Using a screwdriver with its tip wrapped with protective tape, while pulling the No. 2 floor under cover as shown in the illustration, turn the clip to remove the No. 2 floor under cover.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Protective Tape
	Turn in this Direction
	Remove in this Direction

REMOVE NO. 1 FLOOR UNDER COVER (for RH Side)

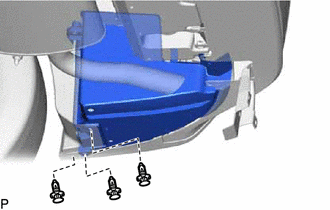

Remove the 3 clips.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Separate in this Direction

Separate the rear bumper assembly as shown in the illustration.

Remove the 3 clips.

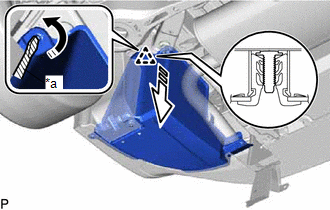

Using a screwdriver with its tip wrapped with protective tape, while pulling the No. 1 floor under cover as shown in the illustration, turn the clip to remove the No. 1 floor under cover.

*a	Protective Tape
	Turn in this Direction
	Remove in this Direction

REMOVE BACK-UP LIGHT BULB

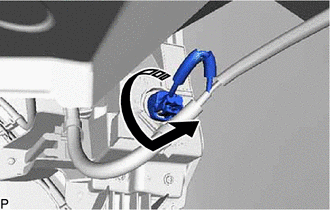

Turn the No. 3 luggage room wire with the back-up light bulb as shown in the illustration to disconnect them as a unit.

Remove in this Direction

Remove the back-up light bulb from the No. 3 luggage room wire.
