Components [09/2016 - ]

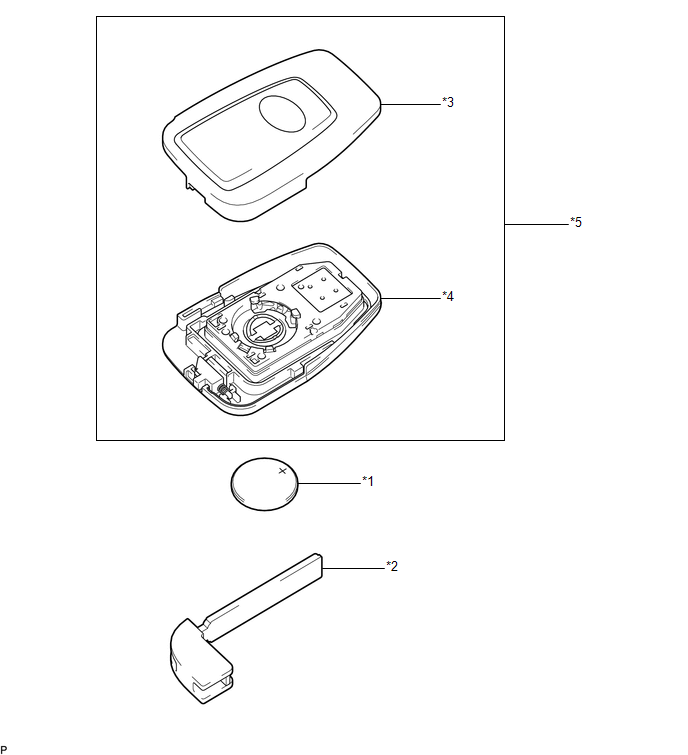

Fig 1: Transmitter Battery Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TRANSMITTER BATTERY	*2	MECHANICAL KEY
*3	TRANSMITTER HOUSING COVER	*4	TRANSMITTER HOUSING CASE
*5	SMART KEY DOOR CONTROL TRANSMITTER HOUSING SET	-	-
