System Diagrams

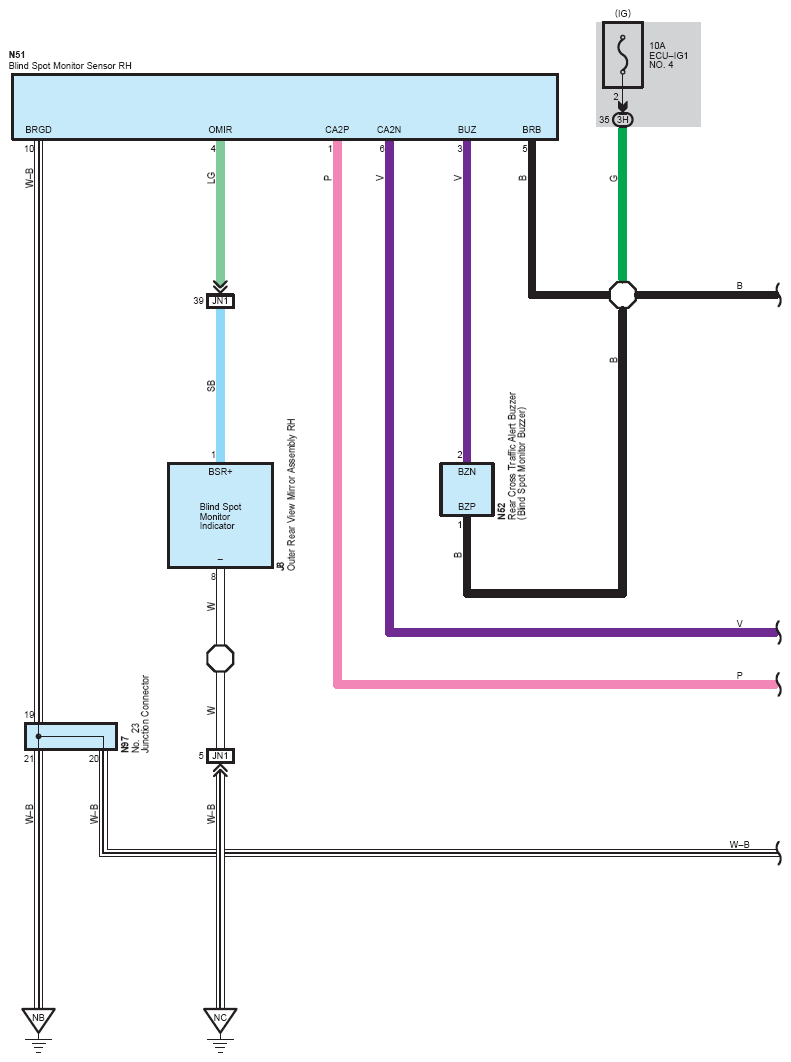

Fig 1: Blind Spot Monitor System (1 Of 6)
G12210315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

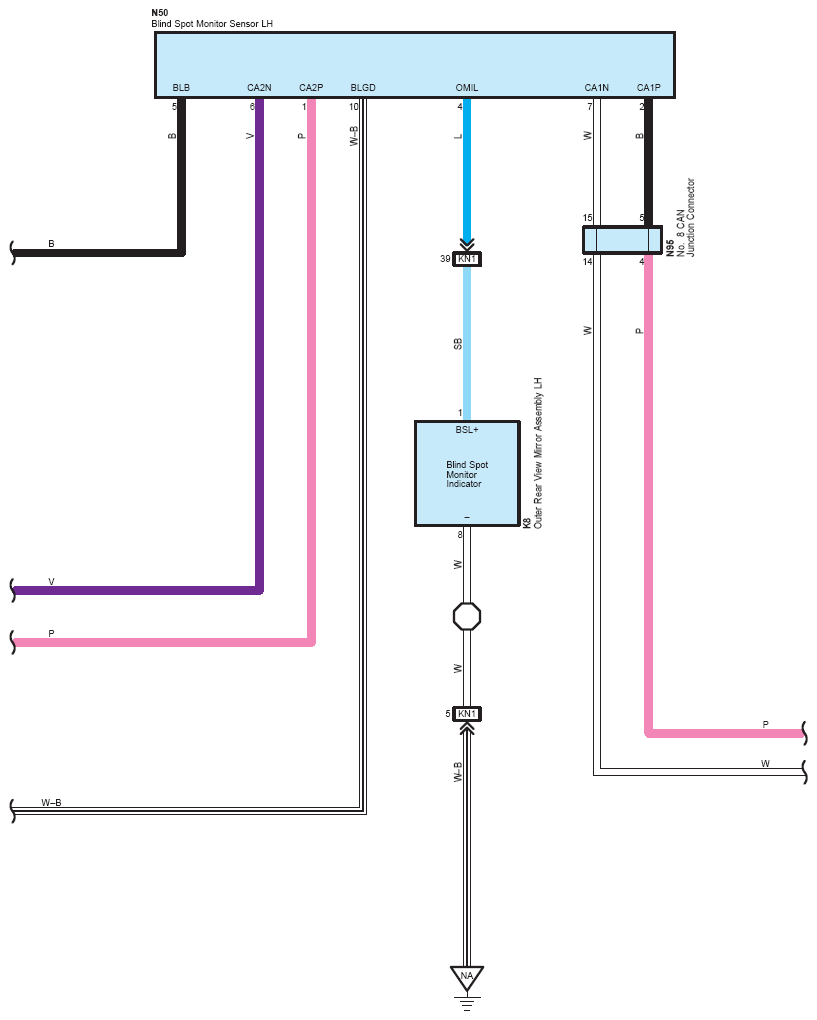

Fig 2: Blind Spot Monitor System (2 Of 6)
G12210316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

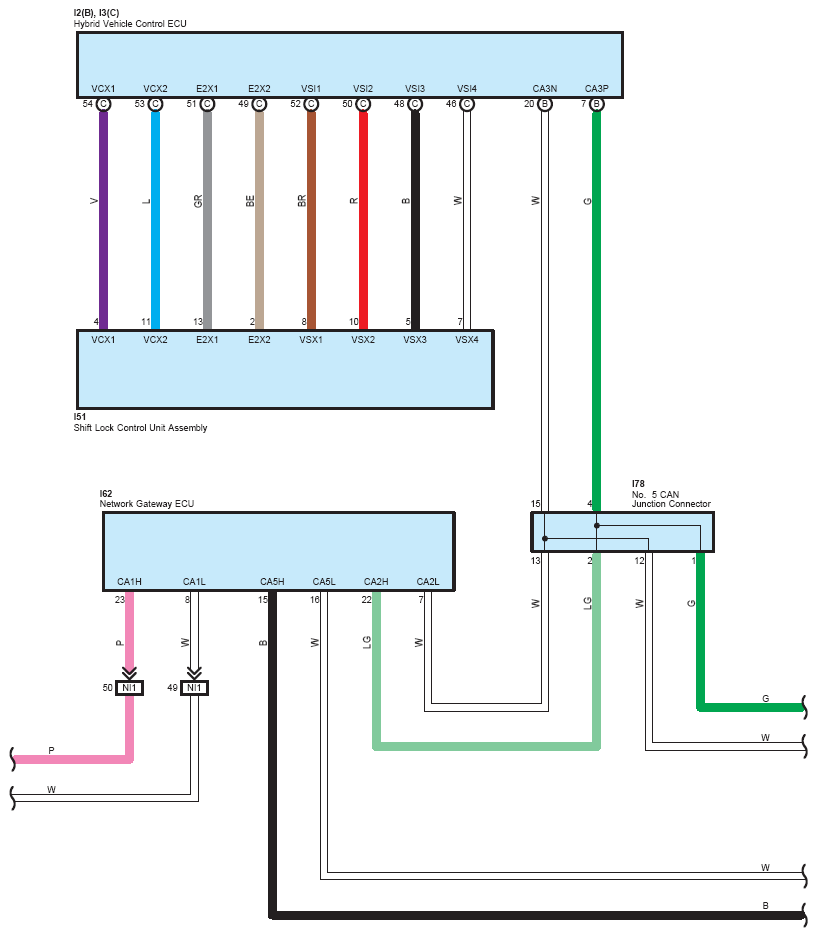

Fig 3: Blind Spot Monitor System (3 Of 6)
G12210317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

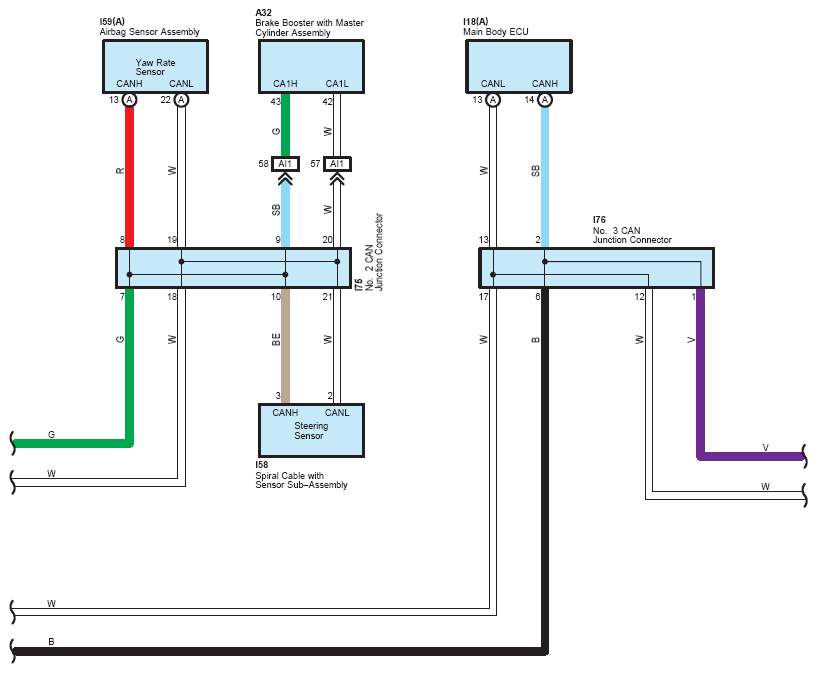

Fig 4: Blind Spot Monitor System (4 Of 6)
G12210318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

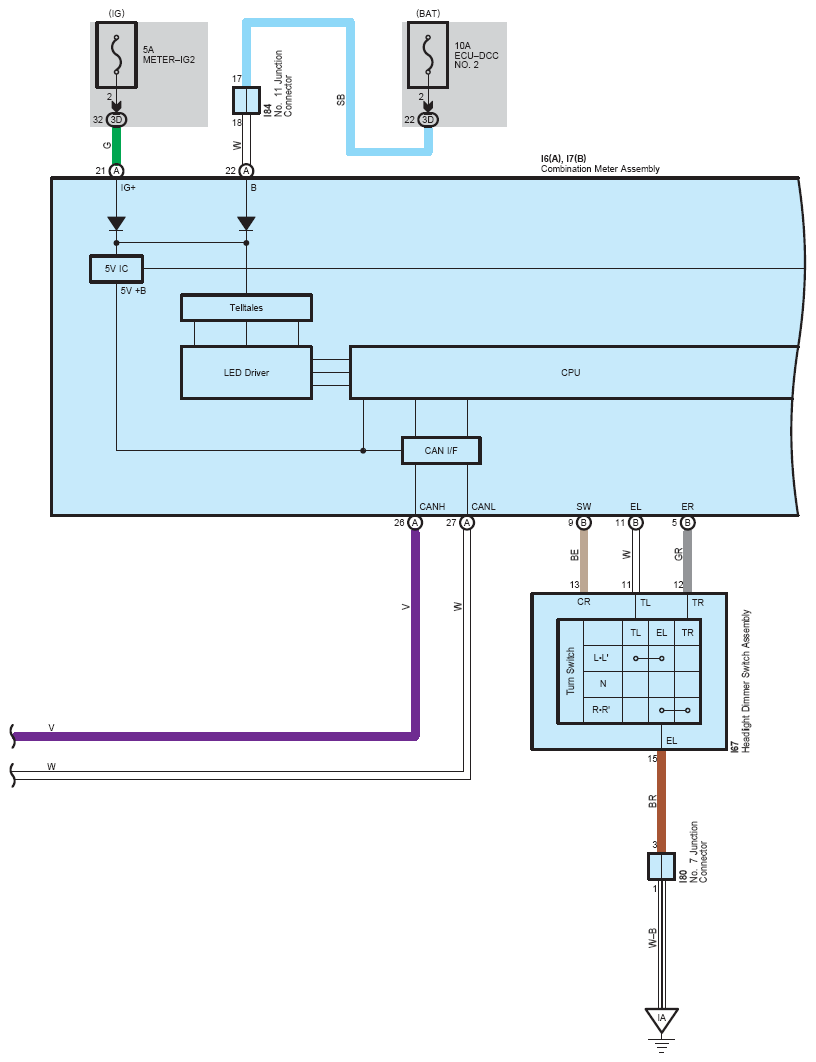

Fig 5: Blind Spot Monitor System (5 Of 6)
G12210319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

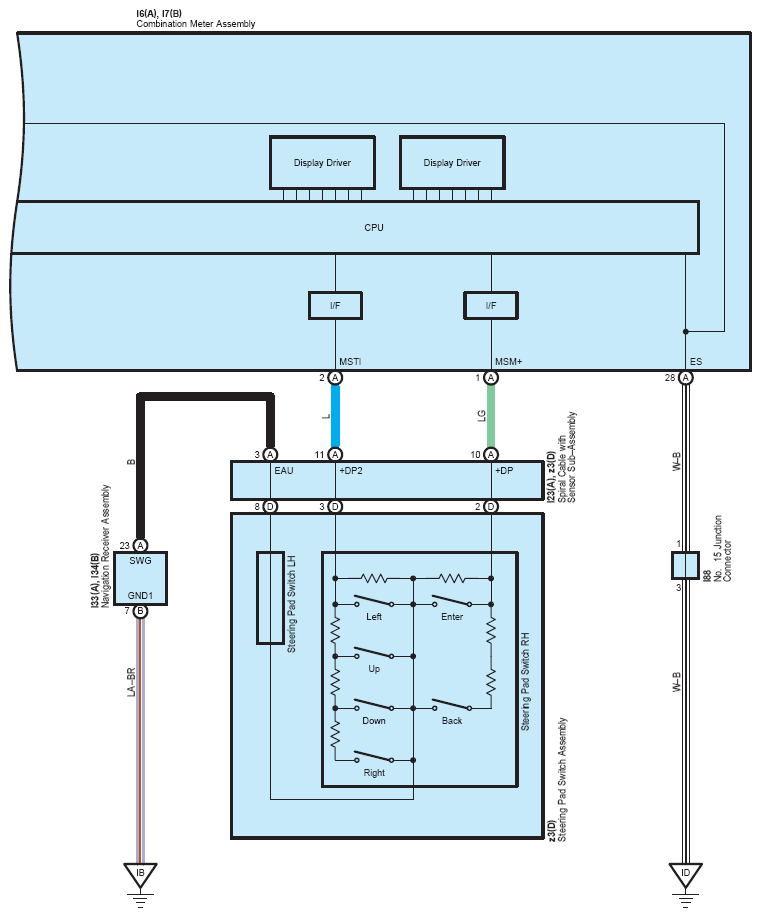

Fig 6: Blind Spot Monitor System (6 Of 6)
G12210320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
