System Diagrams

Fig 1: Front Fog Light (1 Of 4)
G12210422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

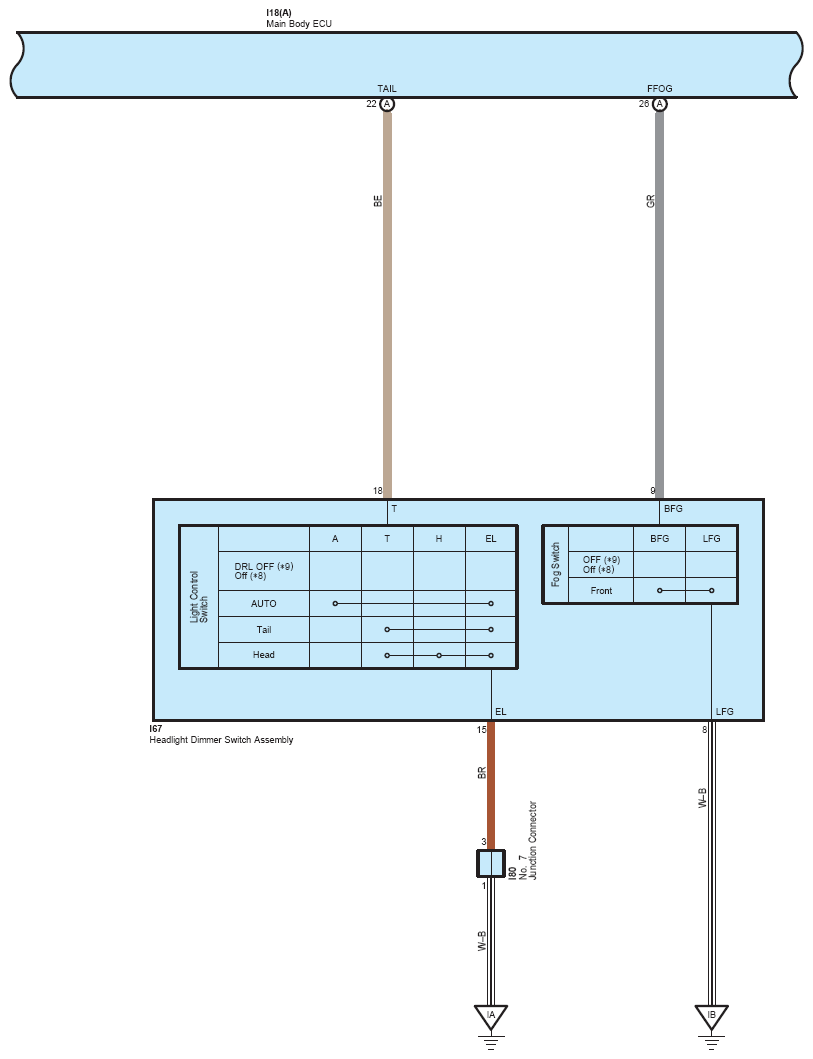

Fig 2: Front Fog Light (2 Of 4)
G12210423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

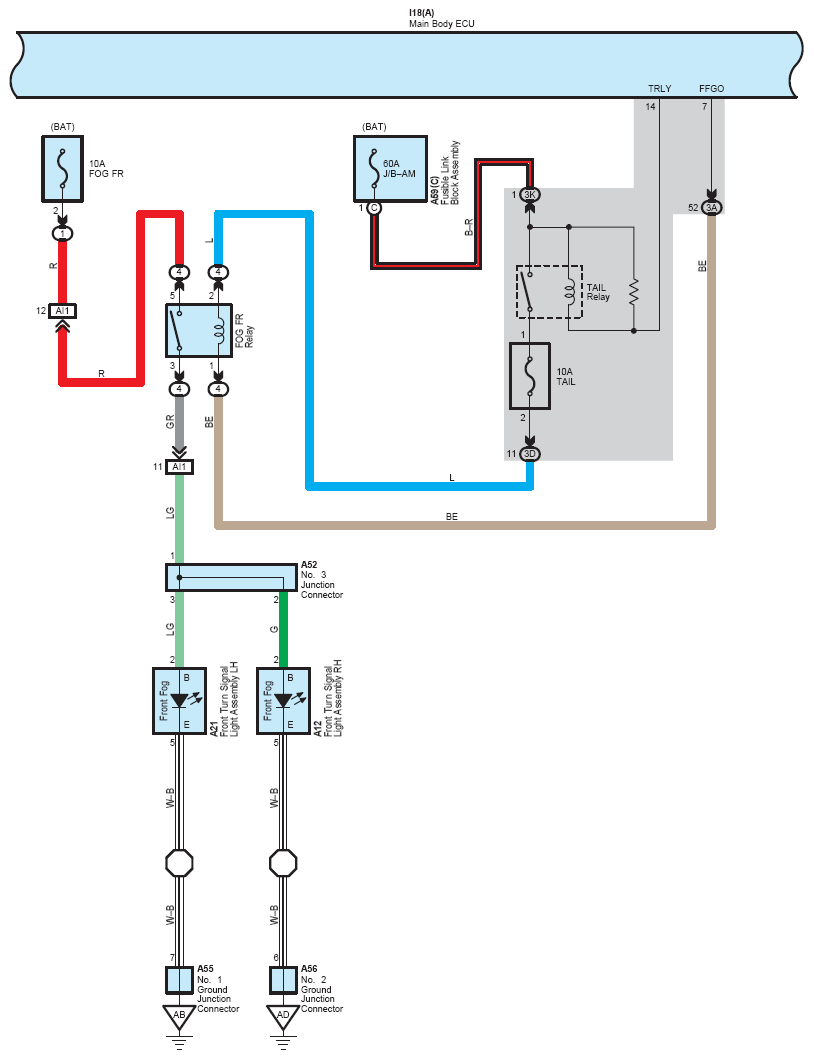

Fig 3: Front Fog Light (3 Of 4)
G12210424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

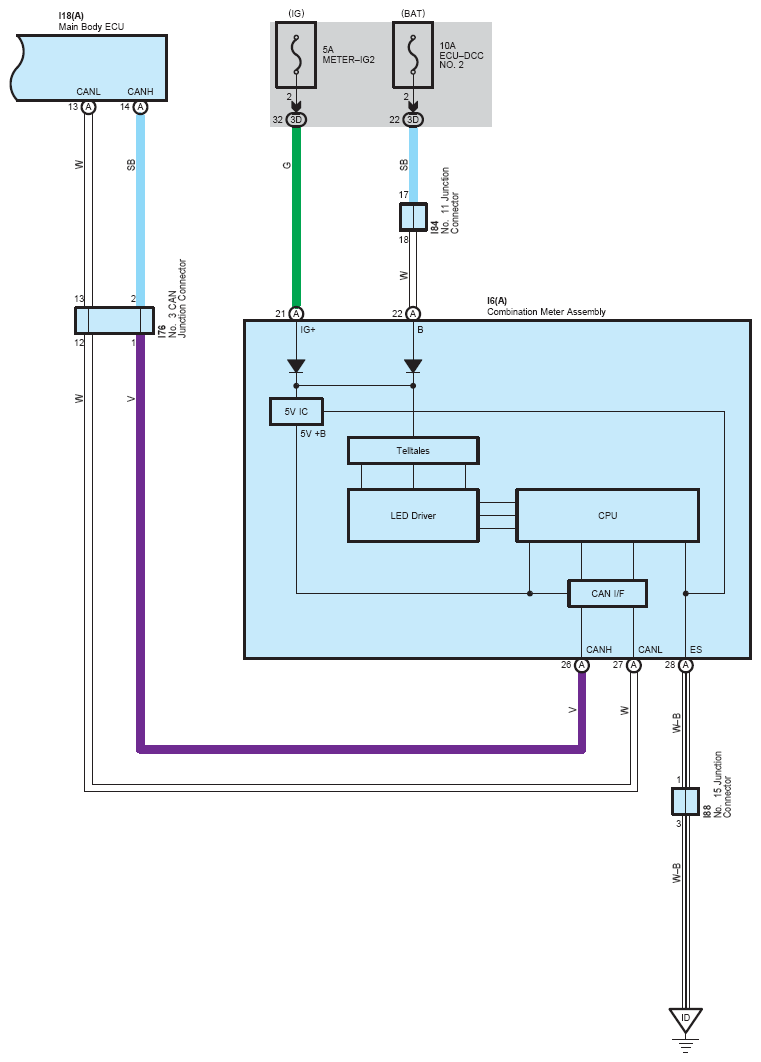

Fig 4: Front Fog Light (4 Of 4)
G12210425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
