Data Link Connector 3: Connectors

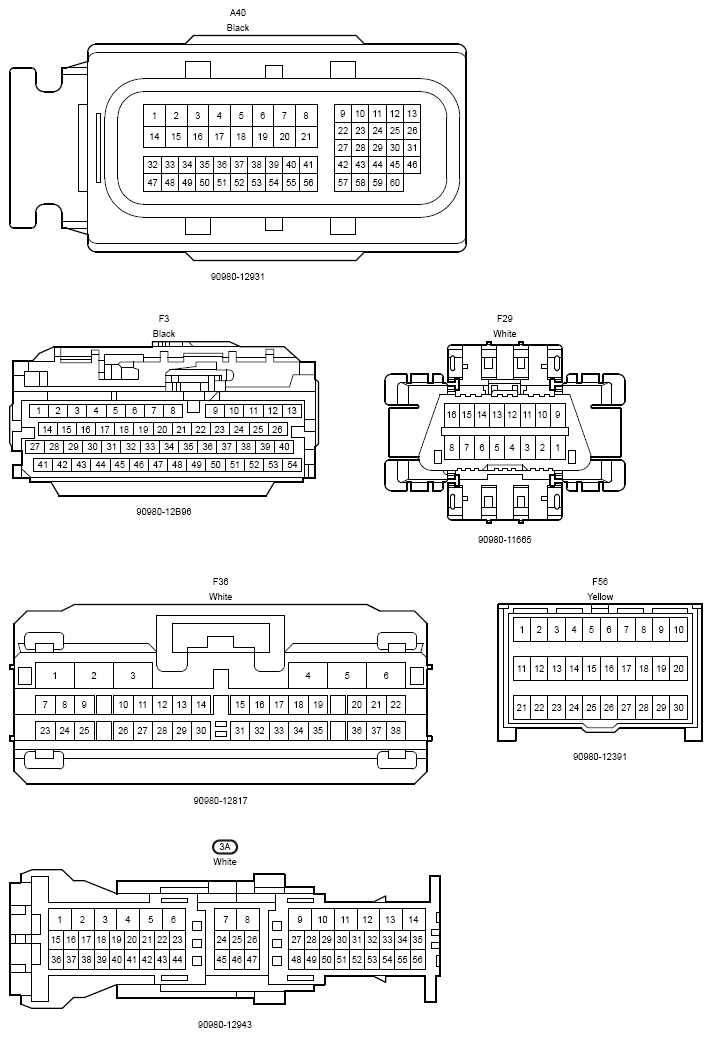

Fig 1: Connectors (1 Of 2)
G12208133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

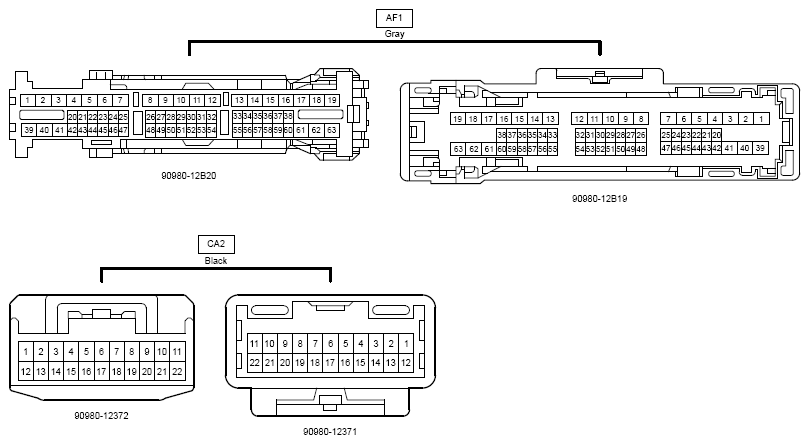

Fig 2: Connectors (2 Of 2)
G12208134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
