Wireless Charger System: Connectors

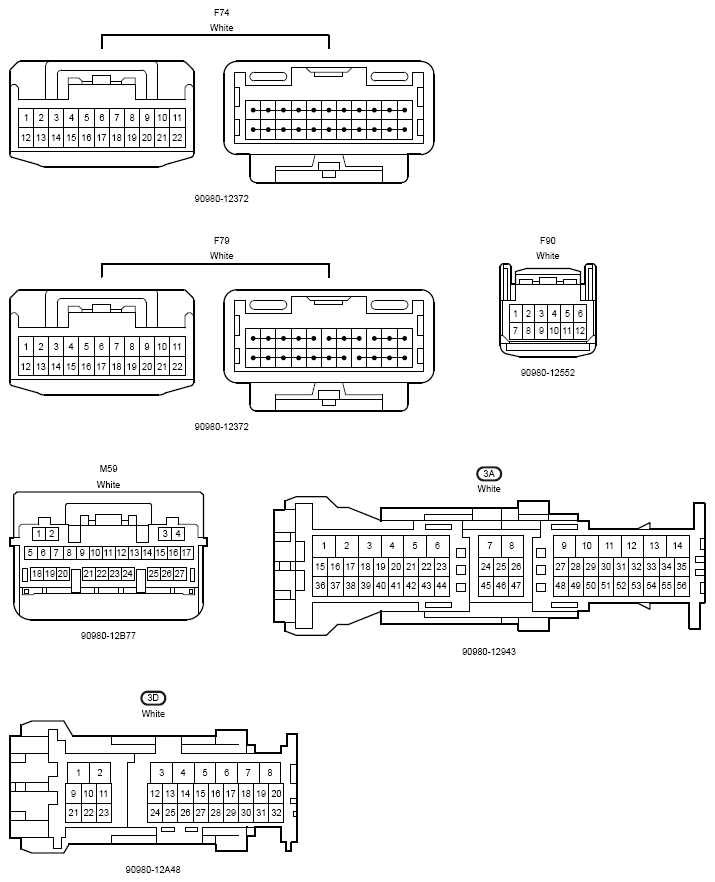

Fig 1: Connectors (1 Of 2)
G12208528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Connectors (2 Of 2)
G12208529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
