Back-Up Light
›
System Diagrams
System Diagrams

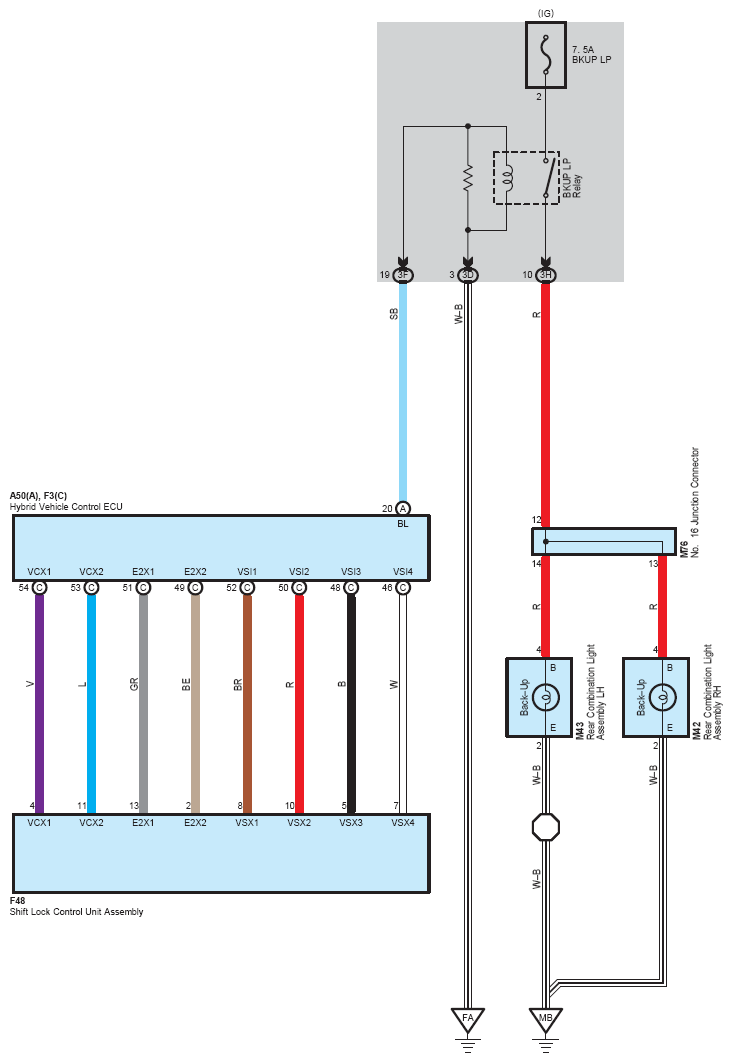

Fig 1: Back-Up Light
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
