System Diagrams

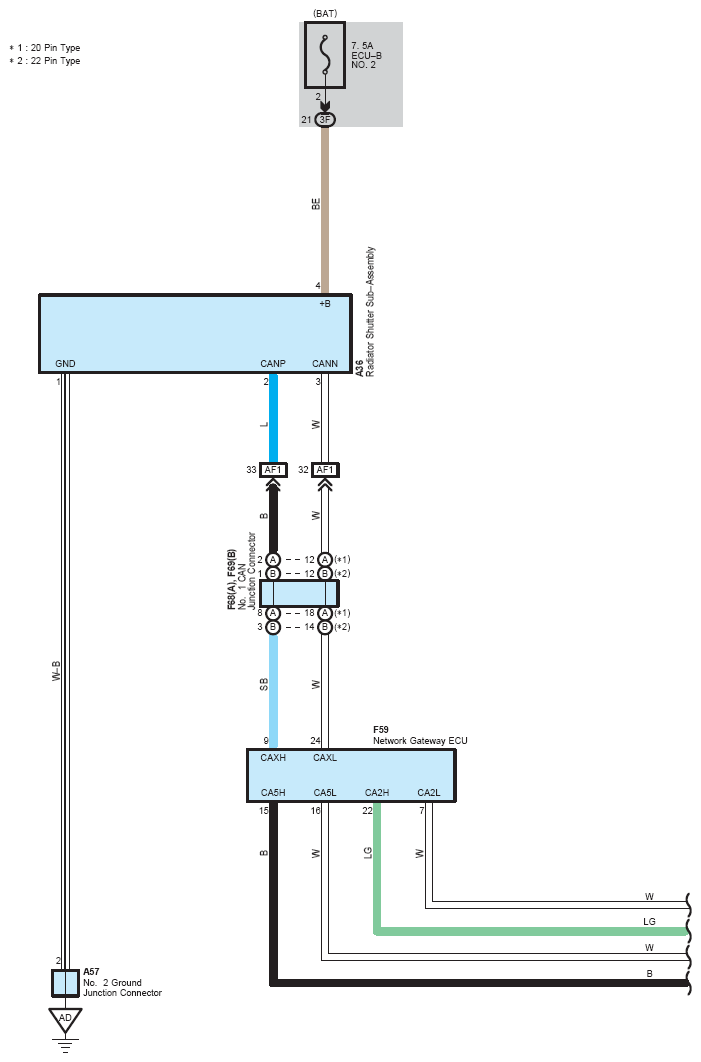

Fig 1: Grille Shutter (1 Of 4)
G12208225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

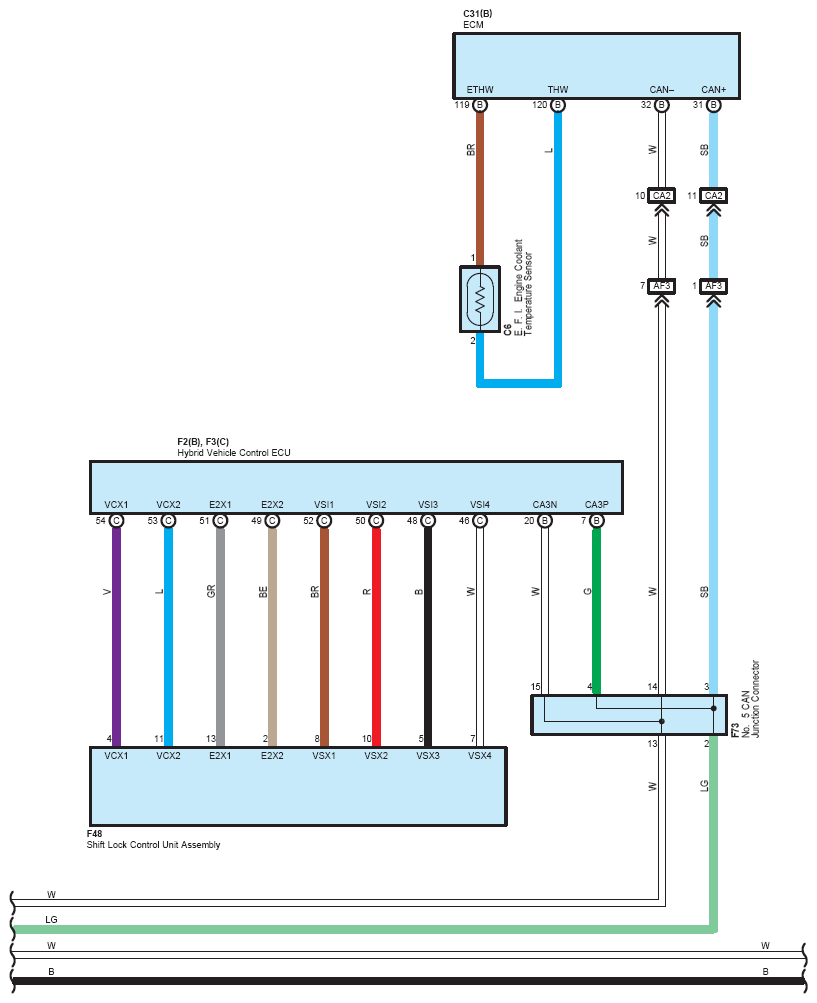

Fig 2: Grille Shutter (2 Of 4)
G12208226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

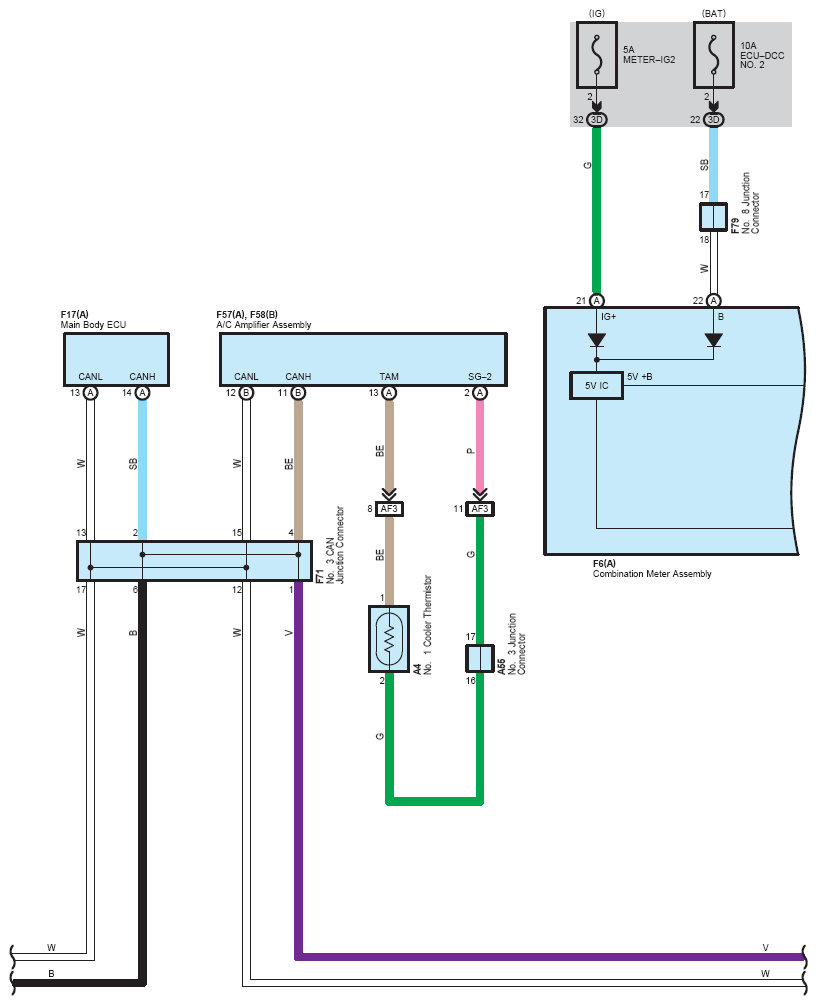

Fig 3: Grille Shutter (3 Of 4)
G12208227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

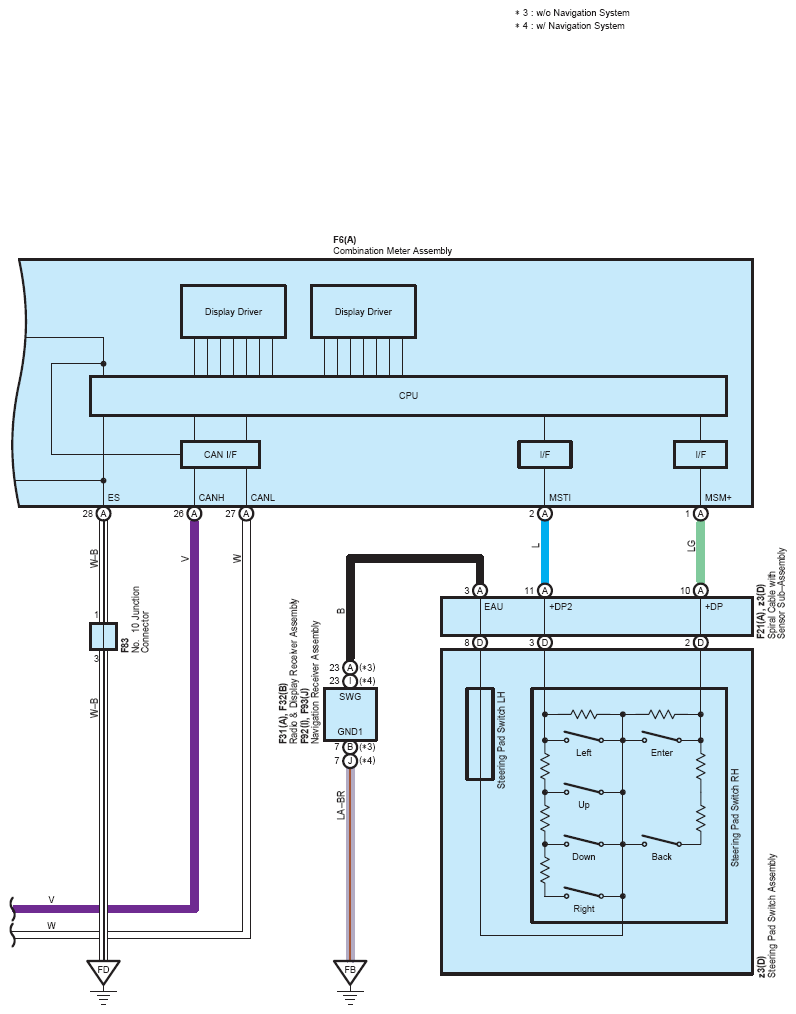

Fig 4: Grille Shutter (4 Of 4)
G12208228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
