Power Source: Connectors

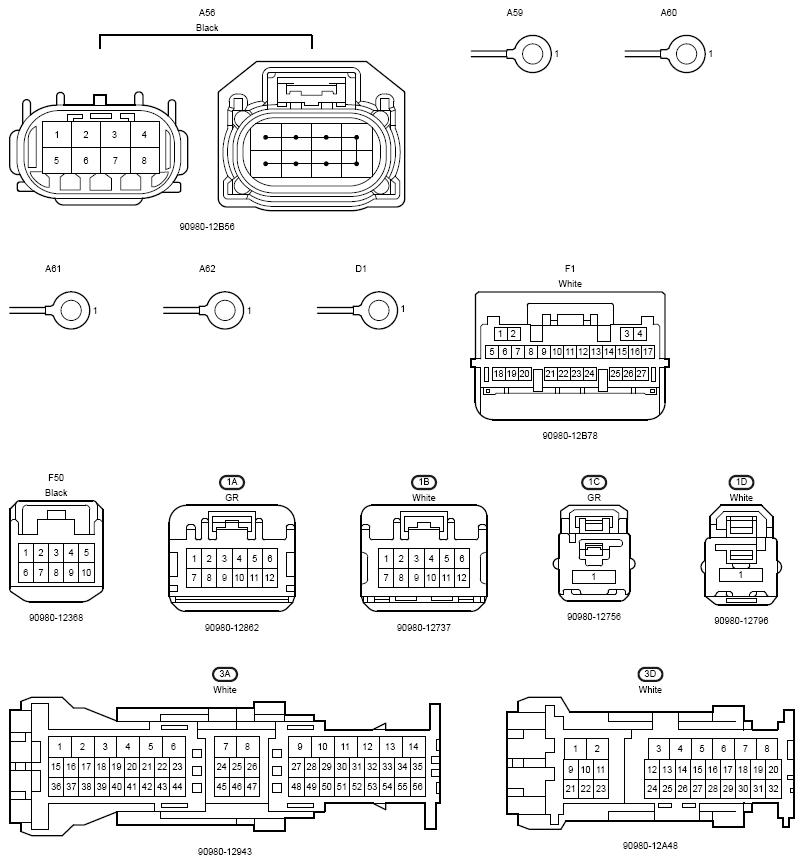

Fig 1: Connectors (1 Of 2)
G12208392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

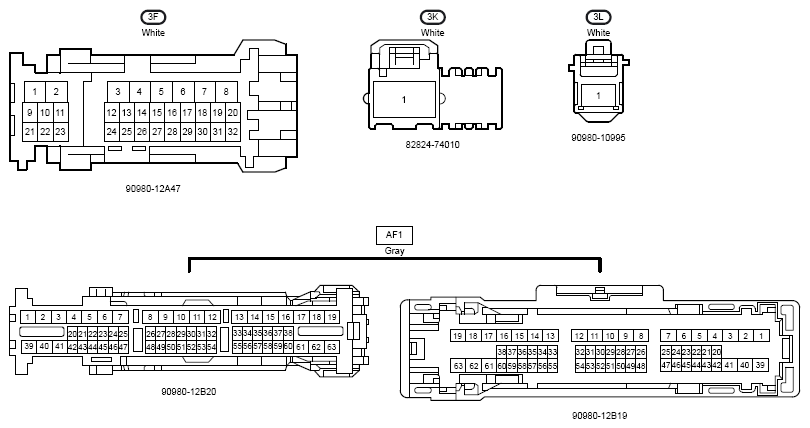

Fig 2: Connectors (2 Of 2)
G12208393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
