Components [12/2018 - ]

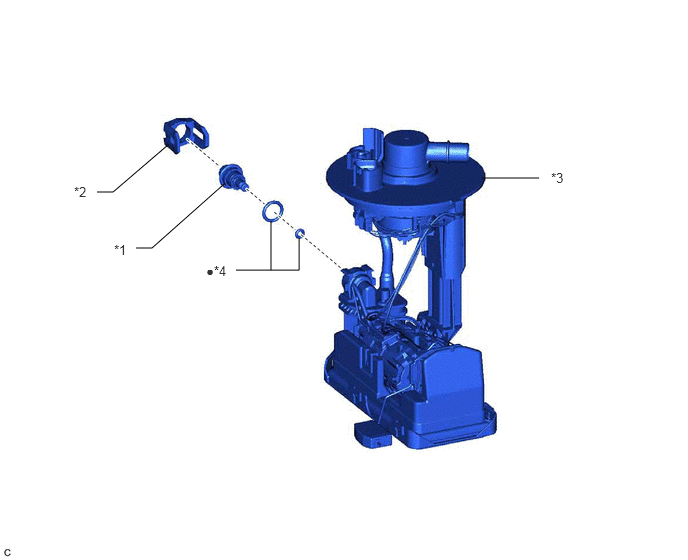

Fig 1: Fuel Pressure Regulator Replacement Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Description	Callout
*1	FUEL PRESSURE REGULATOR ASSEMBLY	*2	FUEL PRESSURE REGULATOR HOLDER
*3	FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY	*4	O-RING
•	Non-reusable part	-	-
