Prius V Three
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Back-Up Light
›
System Diagrams
System Diagrams

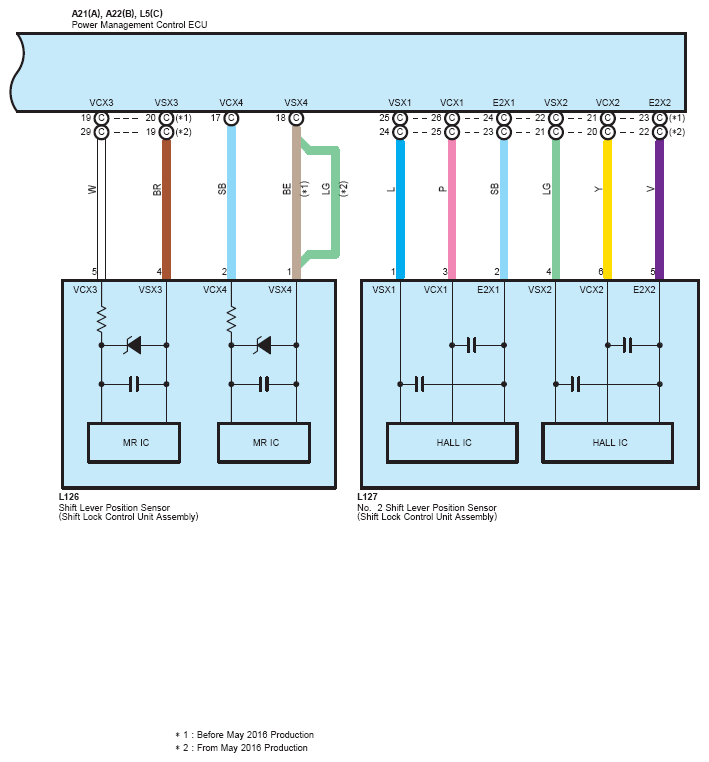

Fig 1: Back-Up Light (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

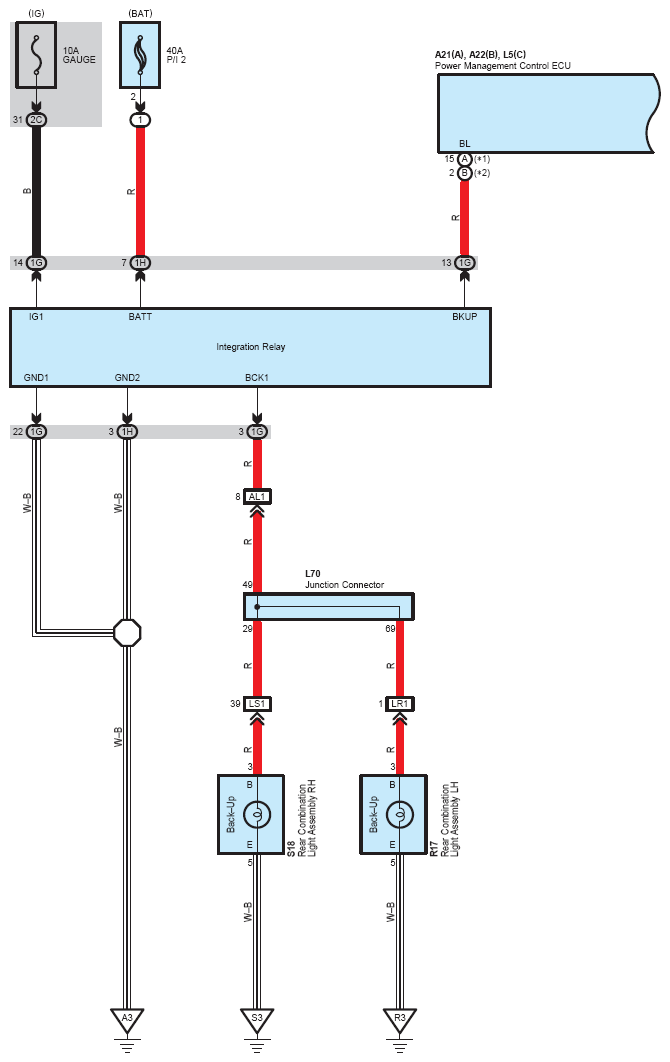

Fig 2: Back-Up Light (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
