Prius V Two
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM System Circuits
›
Light Reminder
›
System Diagrams
System Diagrams

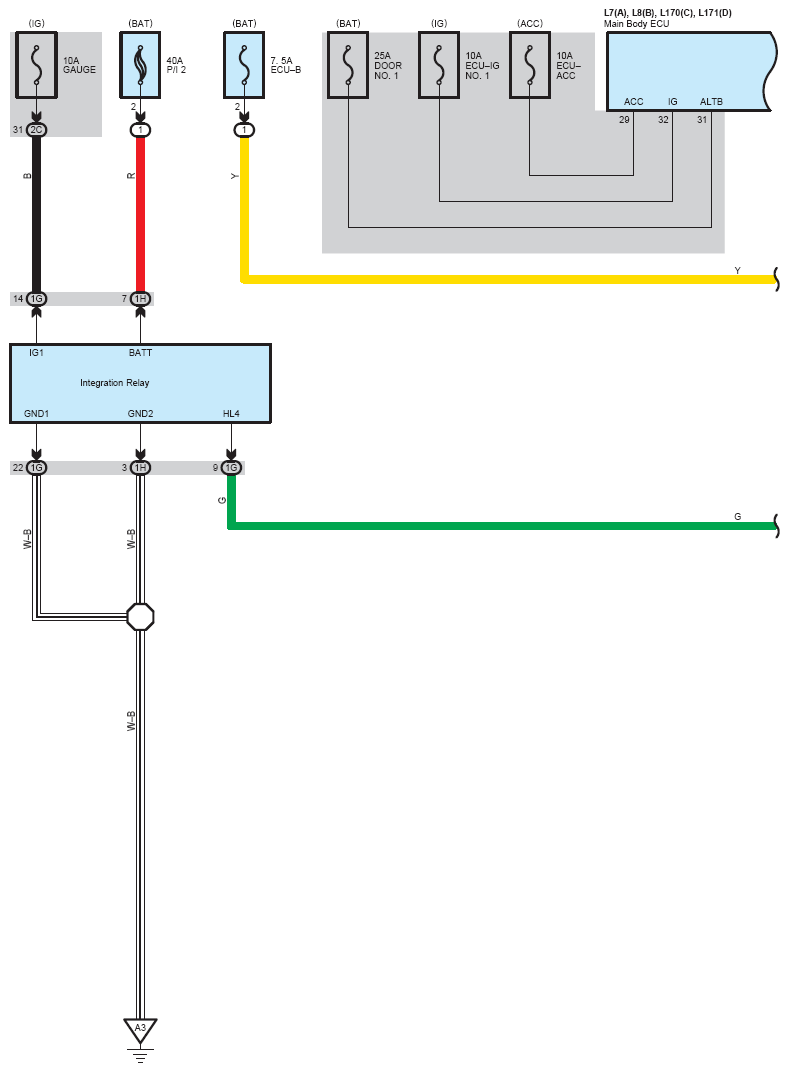

Fig 1: Light Reminder (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

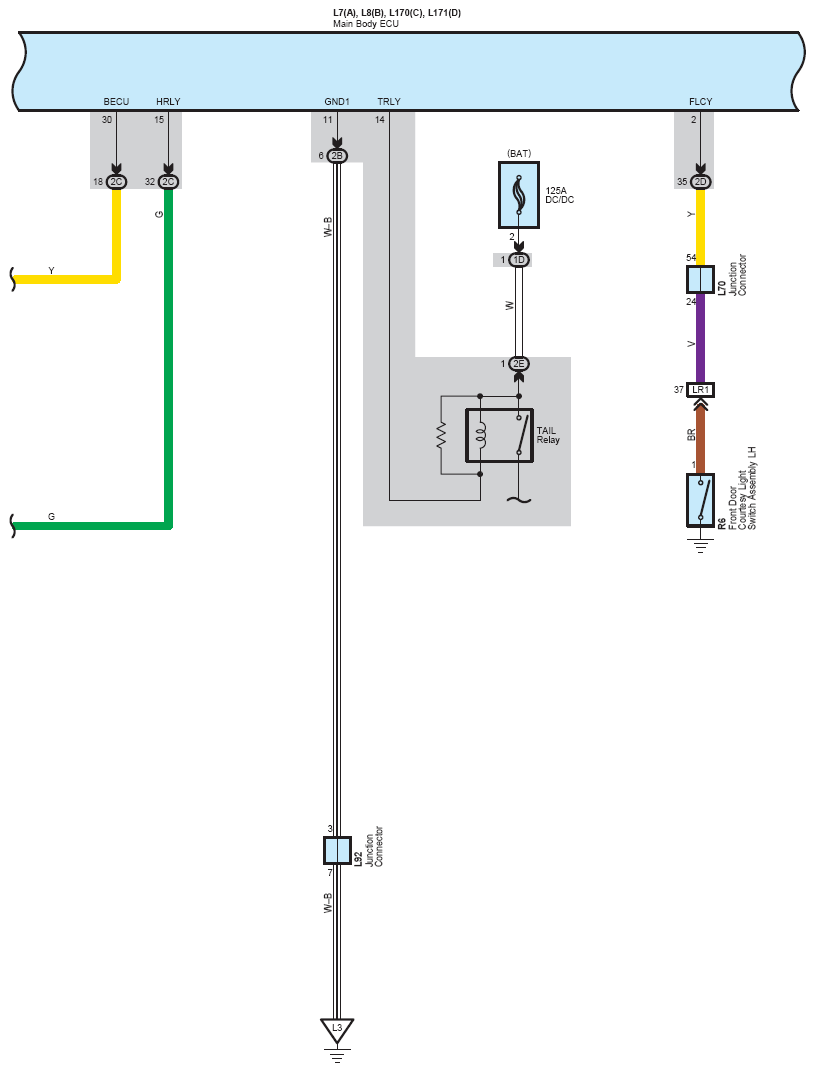

Fig 2: Light Reminder (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

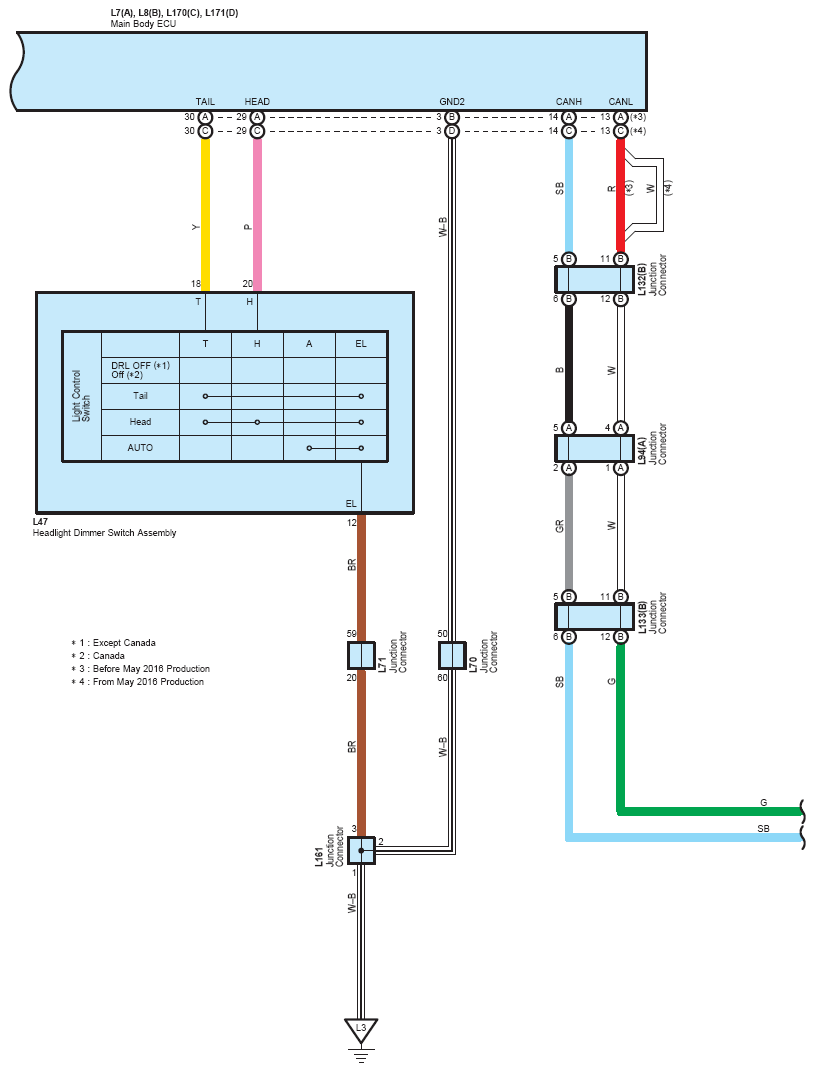

Fig 3: Light Reminder (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

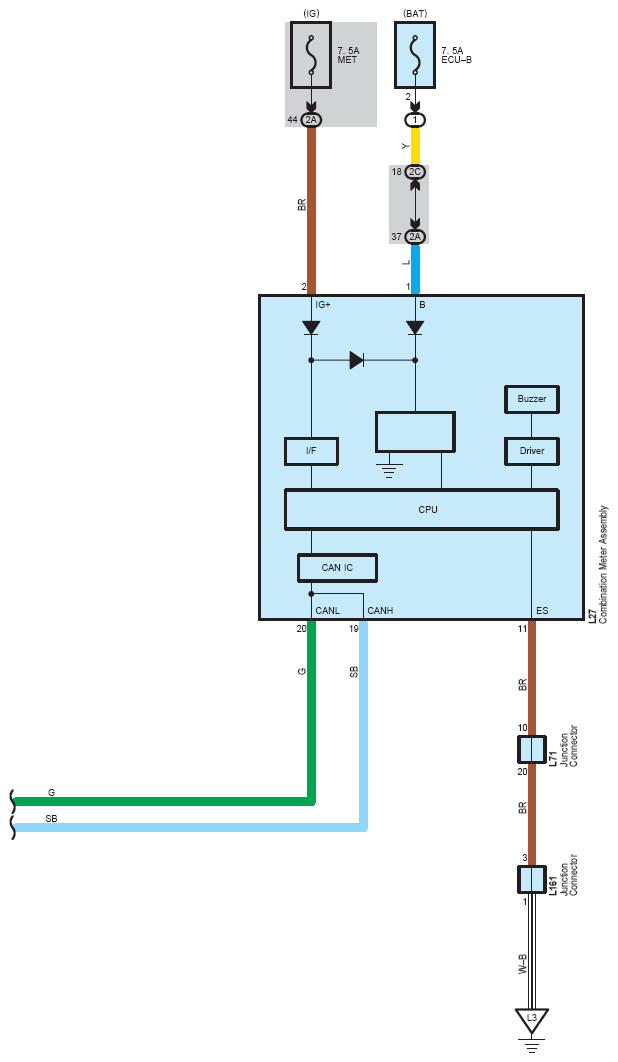

Fig 4: Light Reminder (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
